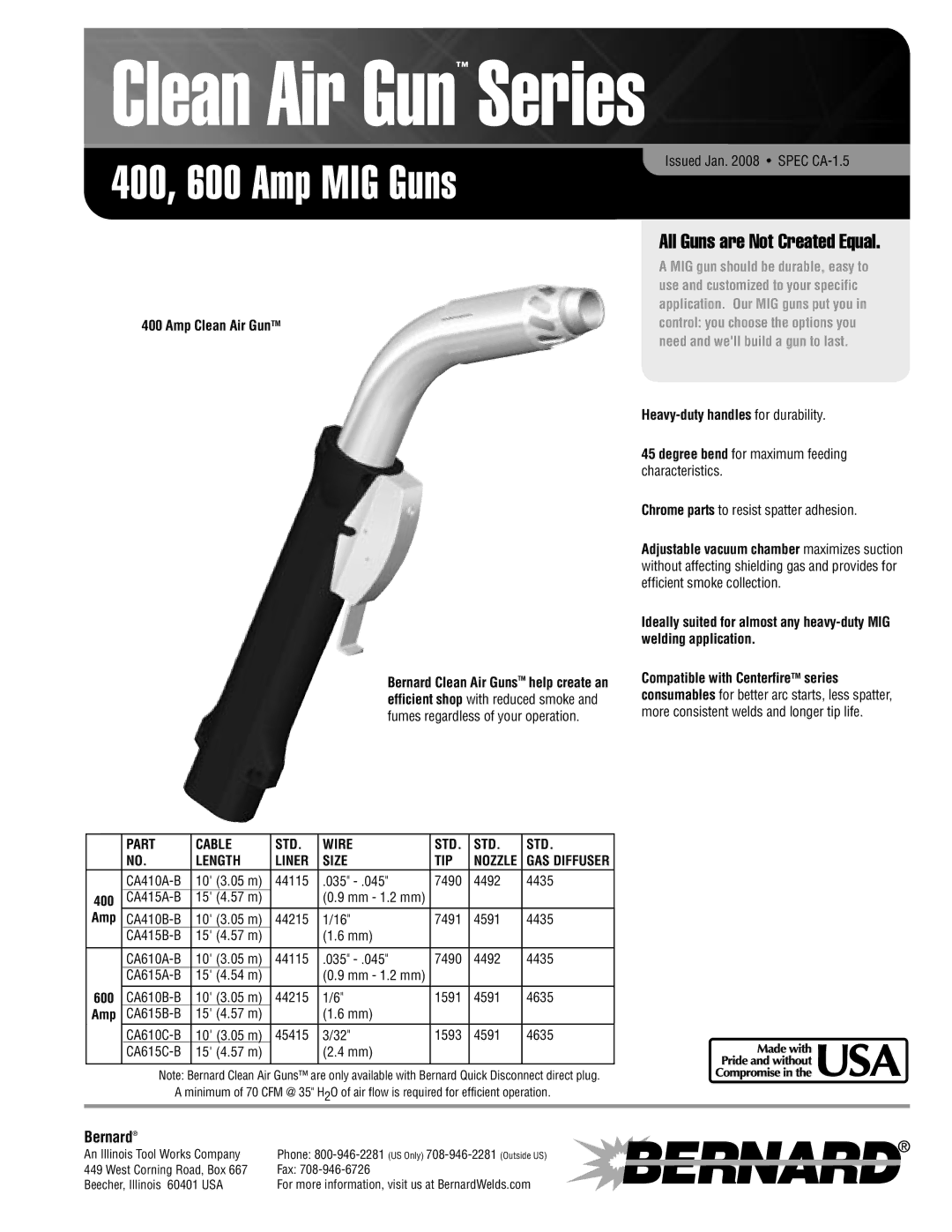

Clean Air GunSeries

400, 600 Amp MIG Guns

400 Amp Clean Air GunTM

Bernard Clean Air GunsTM help create an efficient shop with reduced smoke and fumes regardless of your operation.



PART

CABLE

STD.

WIRE

STD.

STD.

STD.



NO.

LENGTH

LINER

SIZE

TIP

NOZZLE

GAS DIFFUSER



CA410A-B

10' (3.05 m)

44115

.035" - .045"

7490

4492

4435

400

CA415A-B

15' (4.57 m)



(0.9 mm - 1.2 mm)







Amp

CA410B-B

10' (3.05 m)

44215

1/16"

7491

4591

4435



CA415B-B

15' (4.57 m)



(1.6 mm)

























CA610A-B

10' (3.05 m)

44115

.035" - .045"

7490

4492

4435



CA615A-B

15' (4.54 m)



(0.9 mm - 1.2 mm)























600

CA610B-B

10' (3.05 m)

44215

1/6"

1591

4591

4635

Amp

CA615B-B

15' (4.57 m)



(1.6 mm)









CA610C-B

10' (3.05 m)

45415

3/32"

1593

4591

4635



CA615C-B

15' (4.57 m)



(2.4 mm)























Note: Bernard Clean Air Guns™ are only available with Bernard Quick Disconnect direct plug. A minimum of 70 CFM @ 35" H2O of air flow is required for efficient operation.

Issued Jan. 2008 • SPEC CA-1.5

All Guns are Not Created Equal.

A MIG gun should be durable, easy to use and customized to your specific application. Our MIG guns put you in control: you choose the options you need and we'll build a gun to last.

Heavy-duty handles for durability.

45 degree bend for maximum feeding characteristics.

Chrome parts to resist spatter adhesion.

Adjustable vacuum chamber maximizes suction without affecting shielding gas and provides for efficient smoke collection.

Ideally suited for almost any heavy-duty MIG welding application.

Compatible with CenterfireTM series consumables for better arc starts, less spatter, more consistent welds and longer tip life.

Made with USA

Pride and without

Compromise in the

Bernard®

An Illinois Tool Works Company

Phone: 800-946-2281 (US Only) 708-946-2281 (Outside US)

449 West Corning Road, Box 667

Fax: 708-946-6726

Beecher, Illinois 60401 USA

For more information, visit us at BernardWelds.com

Page 1
