Q-Gun™Series

150 Amp MIG Guns

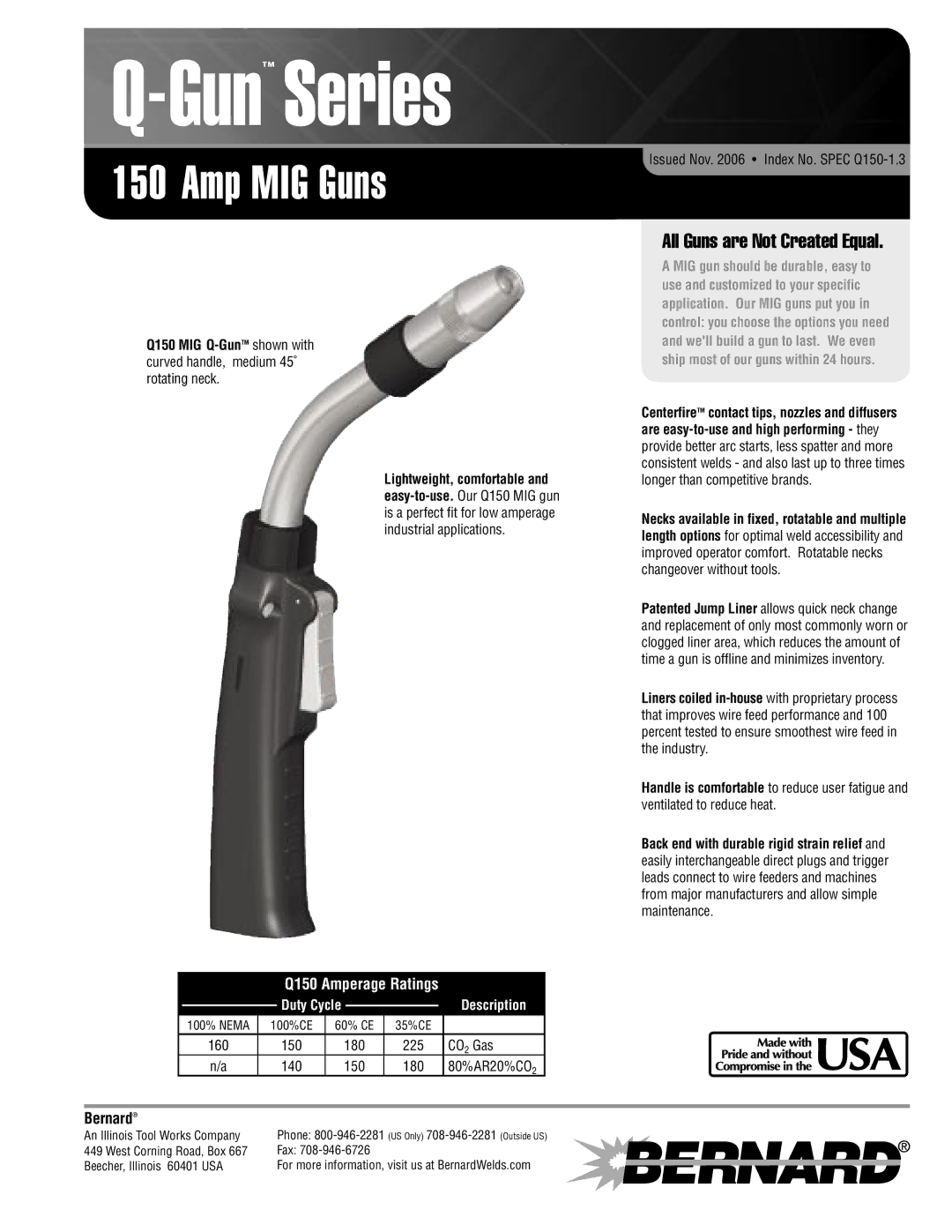

Q150 MIG Q-GunTMshown with curved handle, medium 45˚ rotating neck.

Lightweight, comfortable and easy-to-use. Our Q150 MIG gun is a perfect fit for low amperage industrial applications.

Q150 Amperage Ratings

	Duty Cycle			Description
100% NEMA	100%CE	60% CE	35%CE
160	150	180	225	CO2 Gas
n/a	140	150	180	80%AR20%CO2

Issued Nov. 2006 • Index No. SPEC Q150-1.3

All Guns are Not Created Equal.

A MIG gun should be durable, easy to use and customized to your specific application. Our MIG guns put you in control: you choose the options you need and we'll build a gun to last. We even ship most of our guns within 24 hours.

CenterfireTM contact tips, nozzles and diffusers are easy-to-use and high performing - they provide better arc starts, less spatter and more consistent welds - and also last up to three times longer than competitive brands.

Necks available in fixed, rotatable and multiple length options for optimal weld accessibility and improved operator comfort. Rotatable necks changeover without tools.

Patented Jump Liner allows quick neck change and replacement of only most commonly worn or clogged liner area, which reduces the amount of time a gun is offline and minimizes inventory.

Liners coiled in-house with proprietary process that improves wire feed performance and 100 percent tested to ensure smoothest wire feed in the industry.

Handle is comfortable to reduce user fatigue and ventilated to reduce heat.

Back end with durable rigid strain relief and easily interchangeable direct plugs and trigger leads connect to wire feeders and machines from major manufacturers and allow simple maintenance.

Made with USA

Pride and without

Compromise in the

Bernard®

An Illinois Tool Works Company	Phone: 800-946-2281 (US Only) 708-946-2281 (Outside US)
449 West Corning Road, Box 667	Fax: 708-946-6726
Beecher, Illinois 60401 USA	For more information, visit us at BernardWelds.com
