Category 6A Shielded Blank Patch Panel—24-Port

Supports up to 24 Category 6A shielded jacks.

Mounts in any standard 19" relay rack or cabinet.

Specifications

Number of Ports: 24

Size: 1.75"H (1U) x 19"W x 4.3"D (4.5 x 48.3 x 10.9 cm)

Weight: 2.5 lb. (1.1 kg)

Overview

The Category 6A Shielded Blank Patch Panel (JPMT700A) is used to support up to 24 Category 6A shielded jacks. This panel mounts in any standard 19" relay rack or cabinet, providing patching connectivity for the Category 6A channel solution. The panel has a rear plate to provide horizontal cable support and a 9" grounding wire.

NOTE: This product is designed specifically for the Category 6A solution. Other GigaBase®2, GigaTrue®2, or GigaStation2 fittings may also work in this panel. Contact Black Box Technical Support at 724-746-5500 or info@blackbox.com.

What’s Included

Your package should include the following items. If anything is missing or damaged, contact Black Box at 724-746-5500.

•(1) 24-port panel with grounding wire attached

•(4) #12-24 panhead Phillips screws

•(4) #10-32 panhead Phillips screws

•This user’s manual

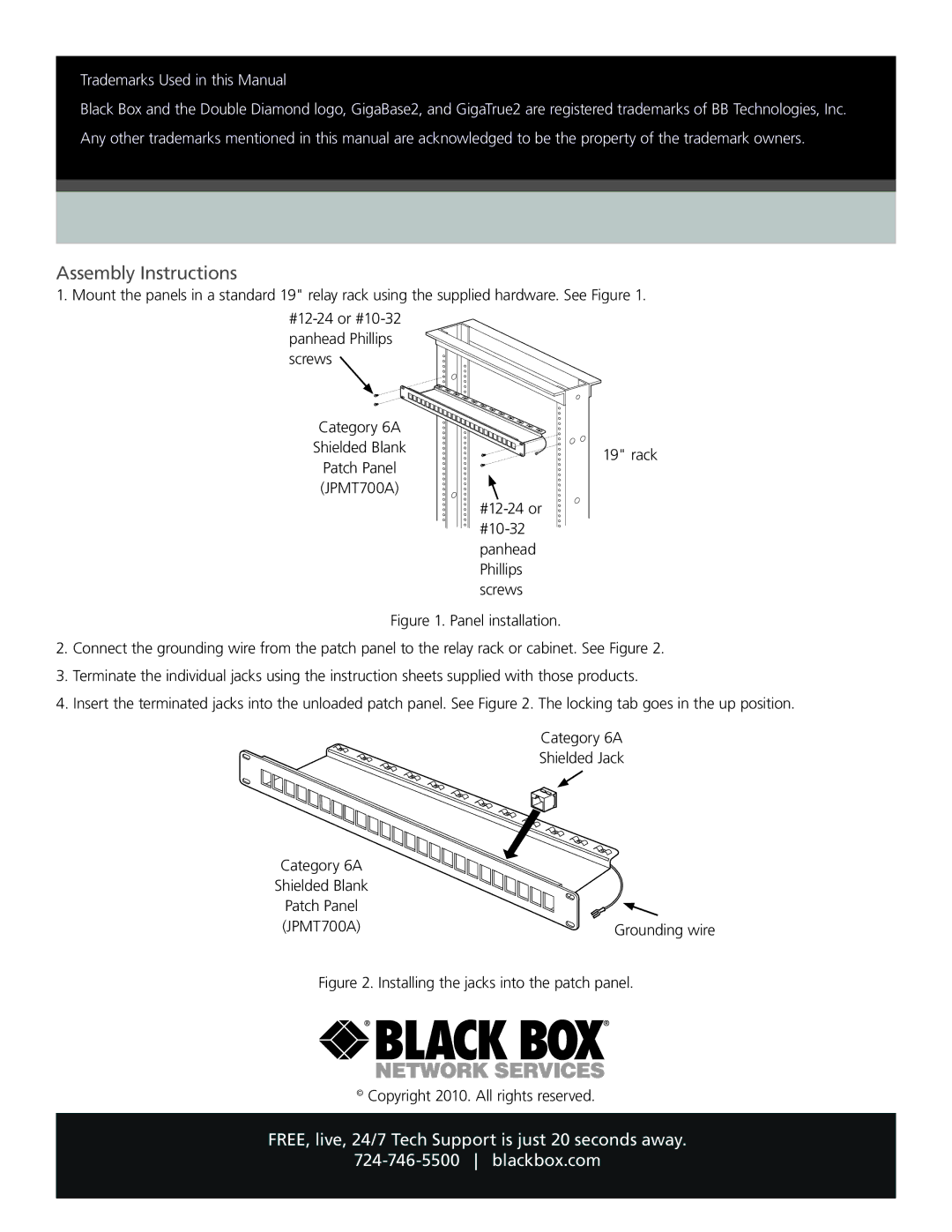

For assembly instructions, turn this page over…
