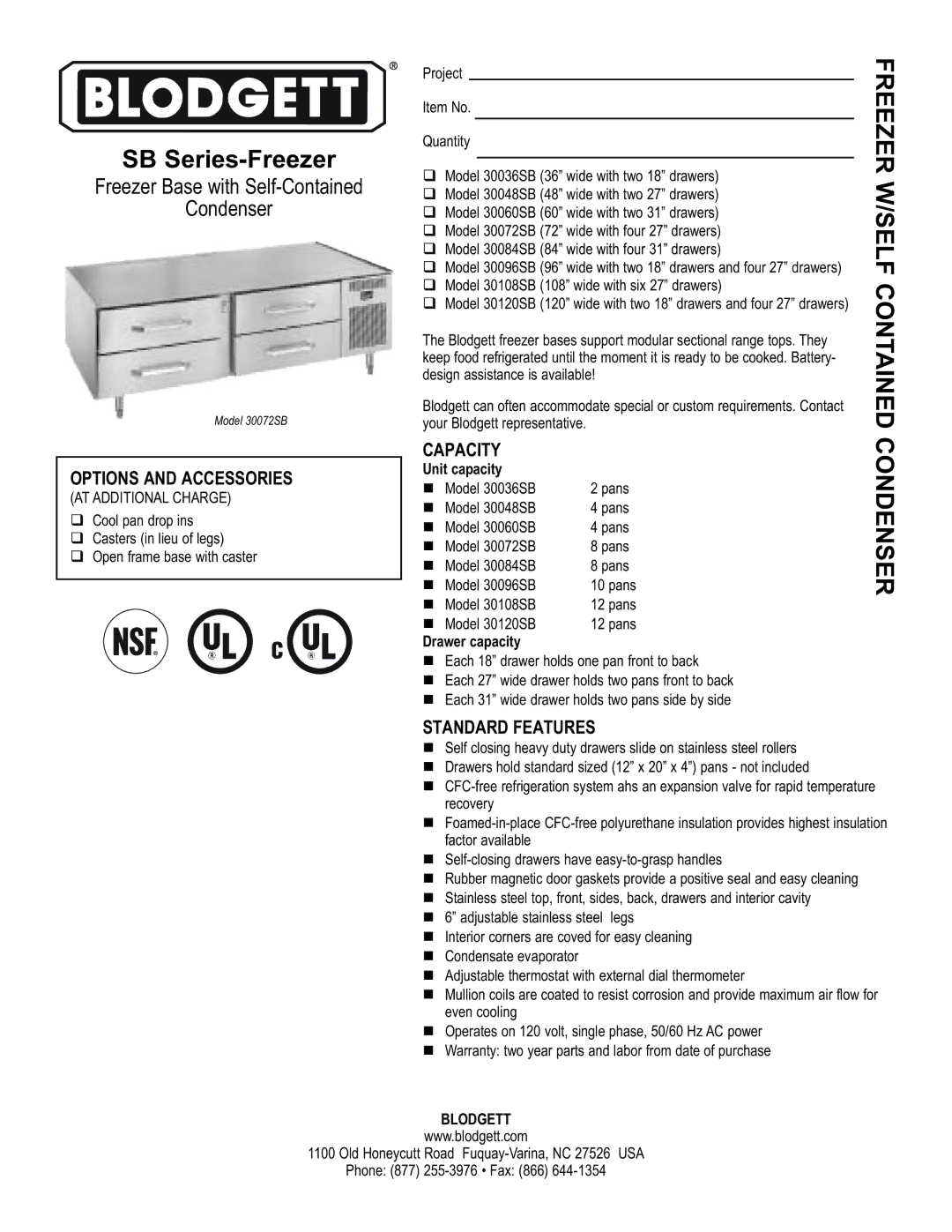

SB Series-Freezer
Freezer Base with Self-Contained
Condenser
Model 30072SB
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Cool pan drop ins
Casters (in lieu of legs)
Open frame base with caster
Project
Item No.
Quantity
Model 30036SB (36” wide with two 18” drawers)
Model 30048SB (48” wide with two 27” drawers)
Model 30060SB (60” wide with two 31” drawers)
Model 30072SB (72” wide with four 27” drawers)
Model 30084SB (84” wide with four 31” drawers)
Model 30096SB (96” wide with two 18” drawers and four 27” drawers)
Model 30108SB (108” wide with six 27” drawers)
Model 30120SB (120” wide with two 18” drawers and four 27” drawers)
The Blodgett freezer bases support modular sectional range tops. They keep food refrigerated until the moment it is ready to be cooked. Battery- design assistance is available!
Blodgett can often accommodate special or custom requirements. Contact your Blodgett representative.
CAPACITY
Unit capacity
Model 30036SB | 2 pans |
Model 30048SB | 4 pans |
Model 30060SB | 4 pans |
Model 30072SB | 8 pans |
Model 30084SB | 8 pans |
Model 30096SB | 10 pans |
Model 30108SB | 12 pans |
Model 30120SB | 12 pans |
Drawer capacity |
|
Each 18” drawer holds one pan front to back
Each 27” wide drawer holds two pans front to back
Each 31” wide drawer holds two pans side by side

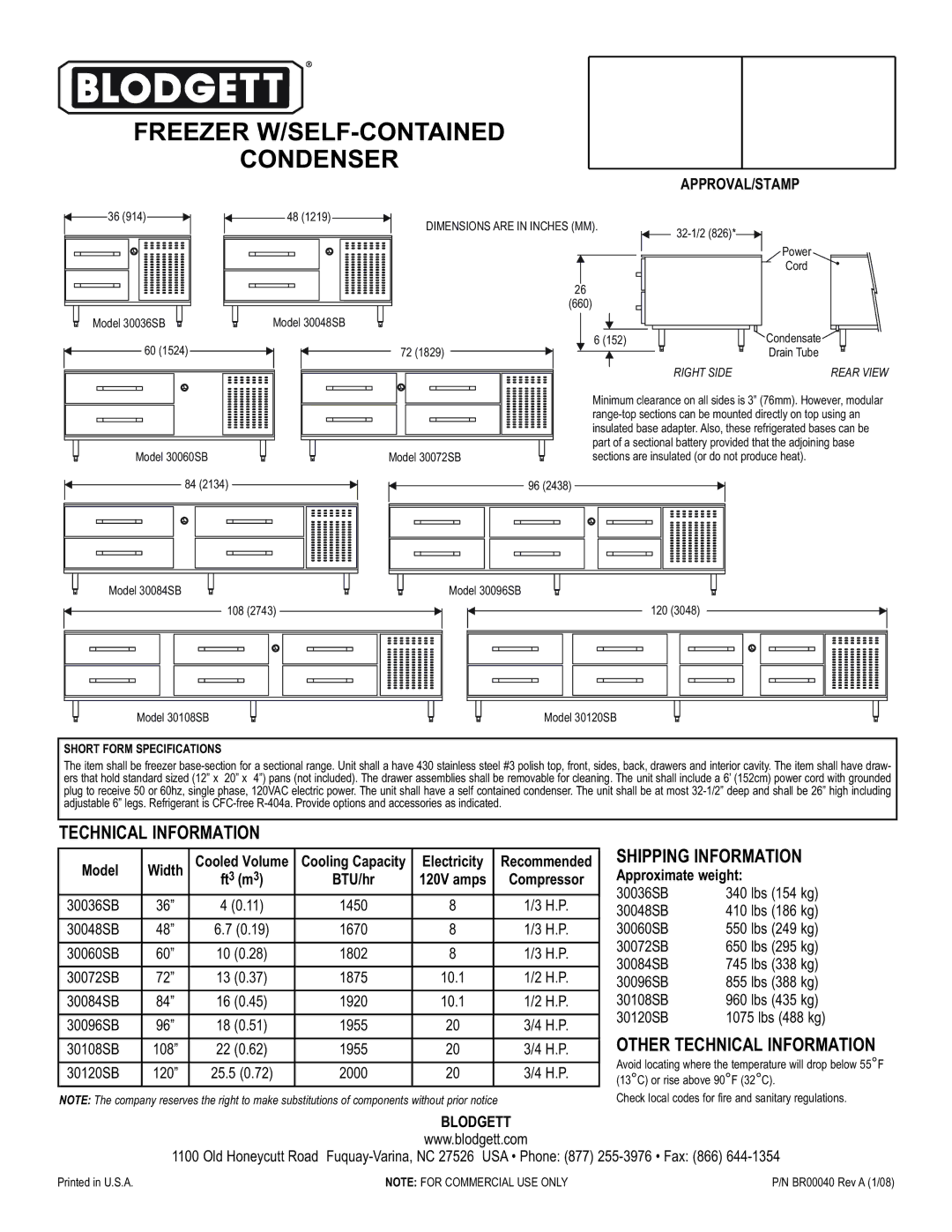

FREEZER W/SELF CONTAINED CONDENSER
STANDARD FEATURES
Self closing heavy duty drawers slide on stainless steel rollers
Drawers hold standard sized (12” x 20” x 4”) pans - not included
Rubber magnetic door gaskets provide a positive seal and easy cleaning
Stainless steel top, front, sides, back, drawers and interior cavity
6” adjustable stainless steel legs
Interior corners are coved for easy cleaning
Condensate evaporator
Adjustable thermostat with external dial thermometer
Mullion coils are coated to resist corrosion and provide maximum air flow for even cooling
Operates on 120 volt, single phase, 50/60 Hz AC power
Warranty: two year parts and labor from date of purchase
BLODGETT
www.blodgett.com
1100 Old Honeycutt Road
Phone: (877)
