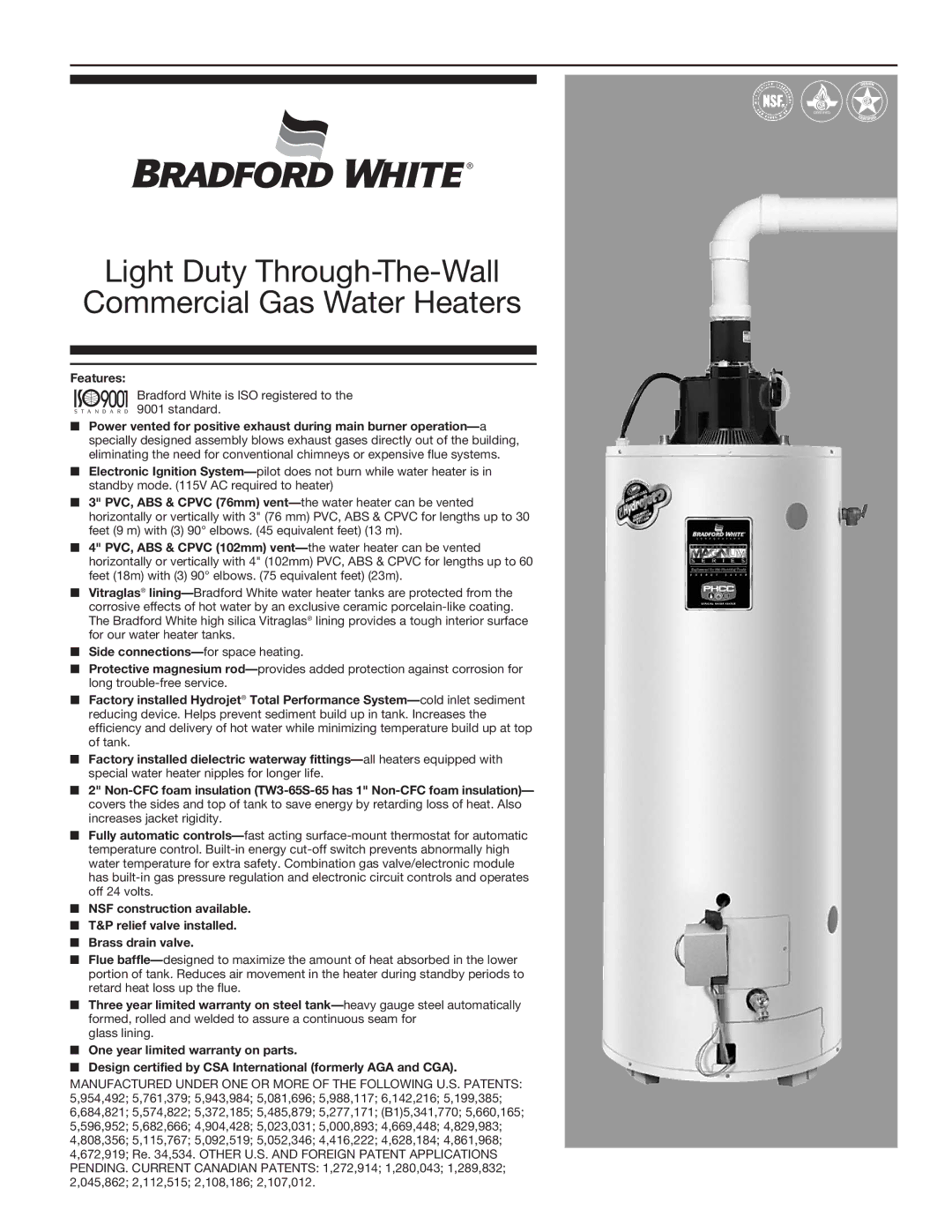

Light Duty Through-The-Wall Commercial Gas Water Heaters

Features:

9001 Bradford White is ISO registered to the Σ Τ Α Ν Δ Α Ρ Δ 9001 standard.

■Power vented for positive exhaust during main burner operation—a specially designed assembly blows exhaust gases directly out of the building, eliminating the need for conventional chimneys or expensive flue systems.

■Electronic Ignition System—pilot does not burn while water heater is in standby mode. (115V AC required to heater)

■3" PVC, ABS & CPVC (76mm) vent—the water heater can be vented horizontally or vertically with 3" (76 mm) PVC, ABS & CPVC for lengths up to 30 feet (9 m) with (3) 90° elbows. (45 equivalent feet) (13 m).

■4" PVC, ABS & CPVC (102mm) vent—the water heater can be vented horizontally or vertically with 4" (102mm) PVC, ABS & CPVC for lengths up to 60 feet (18m) with (3) 90° elbows. (75 equivalent feet) (23m).

■Vitraglas® lining—Bradford White water heater tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating. The Bradford White high silica Vitraglas® lining provides a tough interior surface for our water heater tanks.

■Side connections—for space heating.

■Protective magnesium rod—provides added protection against corrosion for long trouble-free service.

■Factory installed Hydrojet® Total Performance System—cold inlet sediment reducing device. Helps prevent sediment build up in tank. Increases the efficiency and delivery of hot water while minimizing temperature build up at top of tank.

■Factory installed dielectric waterway fittings—all heaters equipped with special water heater nipples for longer life.

■2" Non-CFC foam insulation (TW3-65S-65 has 1" Non-CFC foam insulation)— covers the sides and top of tank to save energy by retarding loss of heat. Also increases jacket rigidity.

■Fully automatic controls—fast acting surface-mount thermostat for automatic temperature control. Built-in energy cut-off switch prevents abnormally high water temperature for extra safety. Combination gas valve/electronic module has built-in gas pressure regulation and electronic circuit controls and operates off 24 volts.

■NSF construction available.

■T&P relief valve installed.

■Brass drain valve.

■Flue baffle—designed to maximize the amount of heat absorbed in the lower portion of tank. Reduces air movement in the heater during standby periods to retard heat loss up the flue.

■Three year limited warranty on steel tank—heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for

glass lining.

■One year limited warranty on parts.

■Design certified by CSA International (formerly AGA and CGA).

MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,954,492; 5,761,379; 5,943,984; 5,081,696; 5,988,117; 6,142,216; 5,199,385; 6,684,821; 5,574,822; 5,372,185; 5,485,879; 5,277,171; (B1)5,341,770; 5,660,165; 5,596,952; 5,682,666; 4,904,428; 5,023,031; 5,000,893; 4,669,448; 4,829,983; 4,808,356; 5,115,767; 5,092,519; 5,052,346; 4,416,222; 4,628,184; 4,861,968; 4,672,919; Re. 34,534. OTHER U.S. AND FOREIGN PATENT APPLICATIONS PENDING. CURRENT CANADIAN PATENTS: 1,272,914; 1,280,043; 1,289,832; 2,045,862; 2,112,515; 2,108,186; 2,107,012.

Page 1 Page 2
Page 1
Image 1
Bradford-White Corp warranty Light Duty Through-The-Wall Commercial Gas Water Heaters
Page 1 Page 2

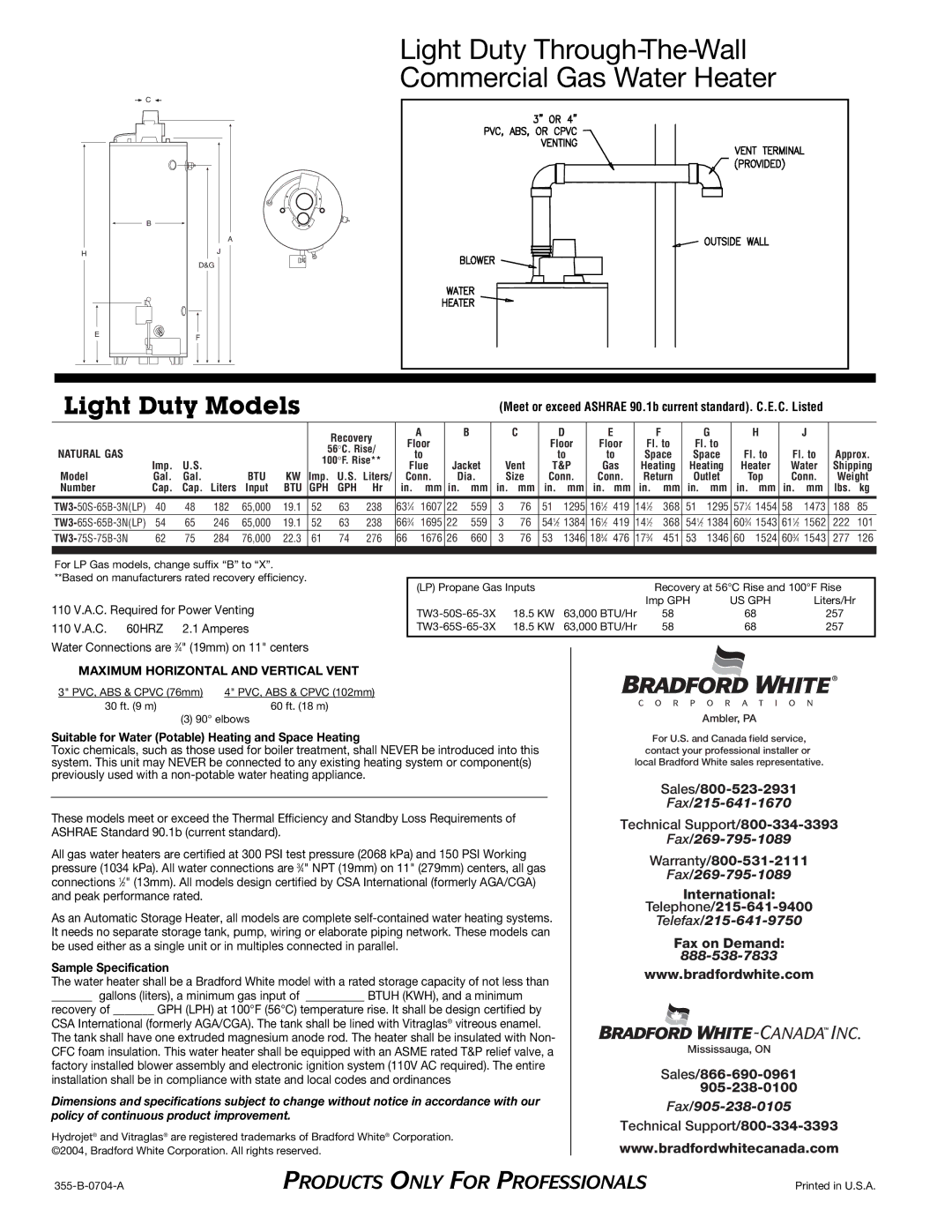

Gas Water Heaters specifications

Bradford-White Corporation, a prominent manufacturer of water heating solutions, has established itself as a leader in producing high-quality gas water heaters. With a commitment to innovation and durability, Bradford-White’s gas water heaters are designed to meet the diverse needs of homeowners and businesses alike.

One of the standout features of Bradford-White gas water heaters is their range of options. The company offers both conventional and high-efficiency models, ensuring that customers can find a solution that fits their hot water demands and energy efficiency goals. The flexibility in model selection is particularly advantageous for those looking to retrofit existing systems or invest in new installations.

The design of Bradford-White gas water heaters incorporates advanced technologies aimed at enhancing performance and extending lifespan. For instance, the impact of their unique Hydrojet Total Cleaning System, which minimizes sediment buildup in the tank, enables improved heating efficiency and prolongs the life of the unit. This feature is crucial in areas where water quality may lead to faster sediment accumulation.

Another innovative aspect of these heaters is the use of Vitraglas® coating. Applied to the tank interior, this specially formulated glass enhances the durability and corrosion resistance of the tank. This protective layer not only helps prevent rust and corrosion but also contributes to the overall efficiency and longevity of the water heater.

Safety and performance are paramount in the design of Bradford-White gas water heaters. Many models include a sophisticated Intelligent Gas Control system that ensures precise temperature regulation and efficient gas usage. Additionally, their advanced safety systems, including a Guardian System® that prevents the ignition of flammable vapors, prioritize user safety without compromising performance.

Energy efficiency is a critical consideration in today’s eco-conscious market, and Bradford-White has responded by offering Energy Star® rated models. These high-efficiency options reduce gas consumption and operational costs, making them an environmentally friendly choice for the modern homeowner.

Moreover, many Bradford-White water heaters feature a compact design, allowing for easy installation in tight spaces, such as utility rooms or closets. This versatility is coupled with strong warranties that reflect the manufacturer’s confidence in the quality of their products.

In summary, Bradford-White Corporation's gas water heaters are synonymous with reliability, cutting-edge technology, and energy efficiency. With a focus on innovation, safety, and performance, these water heaters continue to be a top choice for consumers seeking dependable hot water solutions. Whether for residential or commercial use, Bradford-White’s offerings stand out in the competitive water heater market, ensuring hot water needs are met with excellence.
