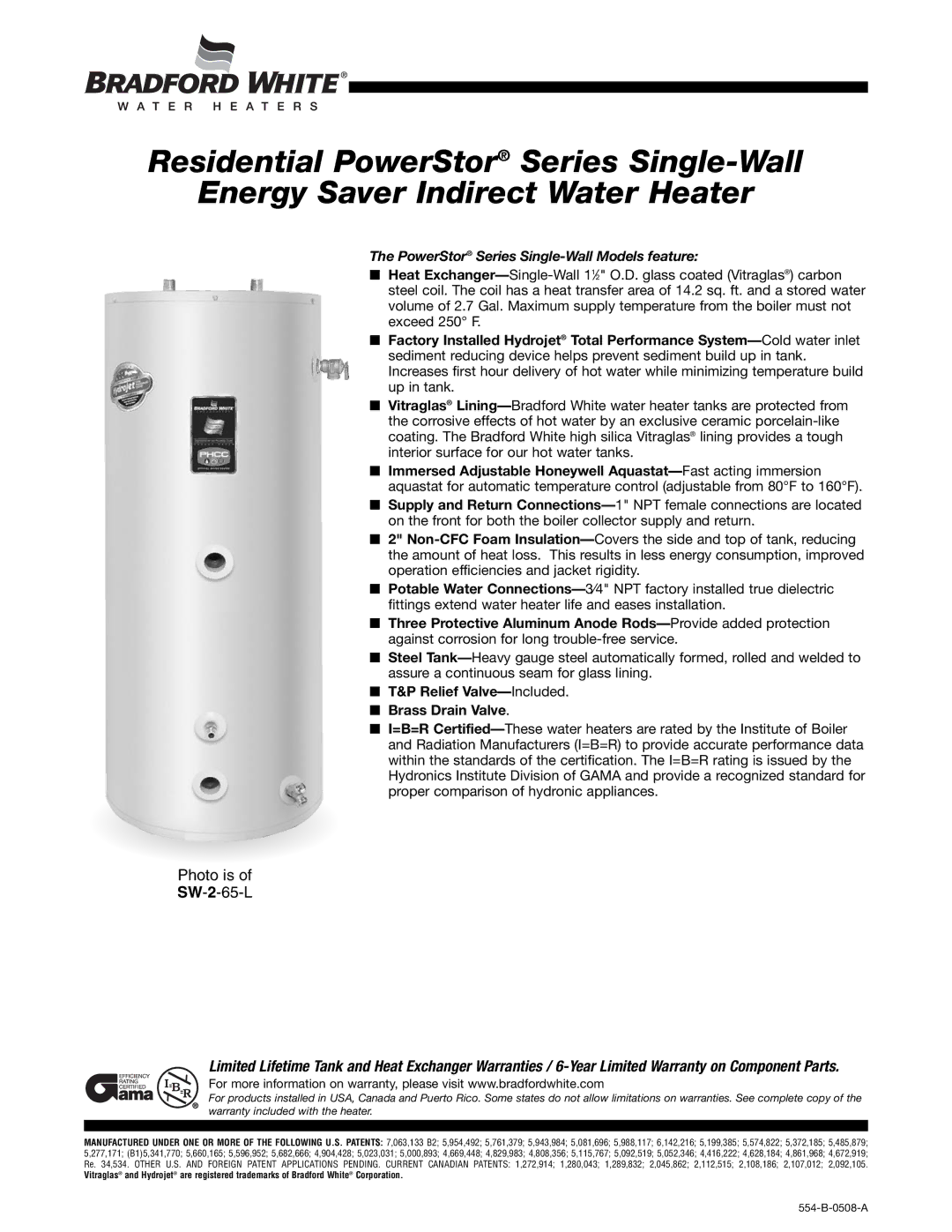

Residential PowerStor® Series Single-Wall

Energy Saver Indirect Water Heater

The PowerStor® Series Single-Wall Models feature:

■Heat Exchanger—Single-Wall 11⁄2" O.D. glass coated (Vitraglas®) carbon steel coil. The coil has a heat transfer area of 14.2 sq. ft. and a stored water volume of 2.7 Gal. Maximum supply temperature from the boiler must not exceed 250° F.

■Factory Installed Hydrojet® Total Performance System—Cold water inlet sediment reducing device helps prevent sediment build up in tank. Increases first hour delivery of hot water while minimizing temperature build up in tank.

■Vitraglas® Lining—Bradford White water heater tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating. The Bradford White high silica Vitraglas® lining provides a tough interior surface for our hot water tanks.

■Immersed Adjustable Honeywell Aquastat—Fast acting immersion aquastat for automatic temperature control (adjustable from 80°F to 160°F).

■Supply and Return Connections—1" NPT female connections are located on the front for both the boiler collector supply and return.

■2" Non-CFC Foam Insulation—Covers the side and top of tank, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies and jacket rigidity.

■Potable Water Connections—3⁄4" NPT factory installed true dielectric fittings extend water heater life and eases installation.

■Three Protective Aluminum Anode Rods—Provide added protection against corrosion for long trouble-free service.

■Steel Tank—Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining.

■T&P Relief Valve—Included.

■Brass Drain Valve.

■I=B=R Certified—These water heaters are rated by the Institute of Boiler and Radiation Manufacturers (I=B=R) to provide accurate performance data within the standards of the certification. The I=B=R rating is issued by the Hydronics Institute Division of GAMA and provide a recognized standard for proper comparison of hydronic appliances.

Photo is of

SW-2-65-L

Limited Lifetime Tank and Heat Exchanger Warranties / 6-Year Limited Warranty on Component Parts.

For more information on warranty, please visit www.bradfordwhite.com

For products installed in USA, Canada and Puerto Rico. Some states do not allow limitations on warranties. See complete copy of the warranty included with the heater.

MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 7,063,133 B2; 5,954,492; 5,761,379; 5,943,984; 5,081,696; 5,988,117; 6,142,216; 5,199,385; 5,574,822; 5,372,185; 5,485,879; 5,277,171; (B1)5,341,770; 5,660,165; 5,596,952; 5,682,666; 4,904,428; 5,023,031; 5,000,893; 4,669,448; 4,829,983; 4,808,356; 5,115,767; 5,092,519; 5,052,346; 4,416,222; 4,628,184; 4,861,968; 4,672,919; Re. 34,534. OTHER U.S. AND FOREIGN PATENT APPLICATIONS PENDING. CURRENT CANADIAN PATENTS: 1,272,914; 1,280,043; 1,289,832; 2,045,862; 2,112,515; 2,108,186; 2,107,012; 2,092,105.

Vitraglas® and Hydrojet® are registered trademarks of Bradford White® Corporation.

554-B-0508-A

Page 1 Page 2
Page 1
Image 1
Bradford-White Corp warranty Photo is SW-2-65-L
Page 1 Page 2

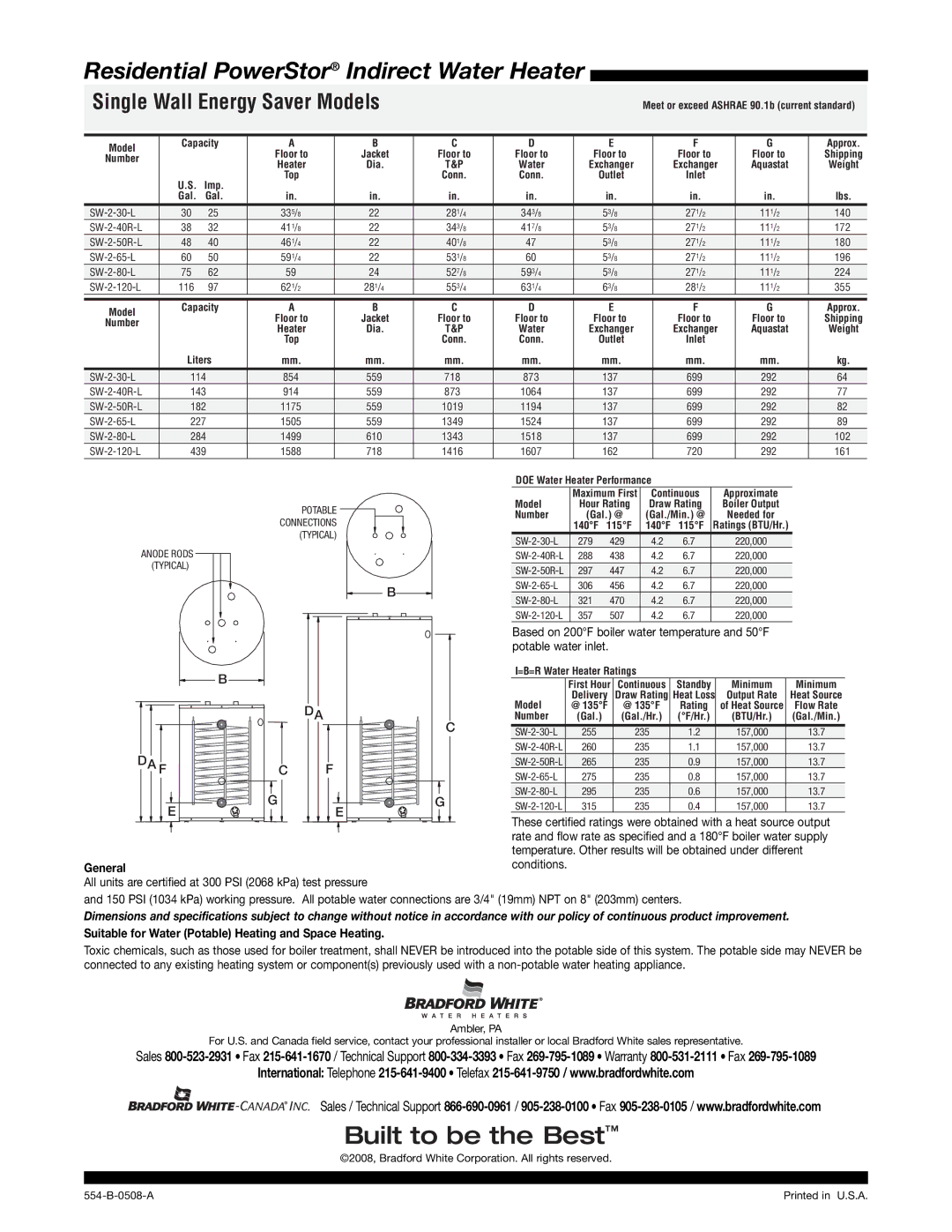

SW-2-65-L specifications

Bradford-White Corp is a respected name in the industry of water heating and storage solutions, renowned for their innovation, reliability, and high-quality products. Among their diverse range of offerings, the Bradford-White SW-2-65-L model stands out as an exceptional water heater known for its remarkable performance and energy efficiency.

The SW-2-65-L is a high-capacity commercial water heater, designed to provide hot water reliably in various commercial settings. With a capacity of 65 gallons, this model is ideal for use in restaurants, hotels, schools, and other facilities requiring substantial hot water supply. The heater operates on 240 volts and is equipped with a powerful heating element that quickly heats the water to the desired temperature, ensuring that your establishment has hot water available whenever needed.

One of the primary features of the SW-2-65-L is its Advanced Direct Vent System. This technology enables safe and efficient venting of combustion gases directly to the outside, which enhances the overall safety of the installation. The unique design of the direct vent system also minimizes air intake issues, ensuring optimal combustion efficiency and lower operating costs.

Moreover, this model features Bradford-White's HydroJet® Total Performance System, designed to reduce sediment buildup within the tank. By promoting better circulation of hot water and enhancing the efficiency of the heating process, this system helps maintain high performance over time and extends the lifespan of the unit.

In terms of insulation, the SW-2-65-L incorporates a robust R-16 polyurethane foam insulation around the tank. This insulation significantly reduces heat loss, ensuring that the water remains hot for extended periods and improving energy efficiency.

To further enhance the usability of the SW-2-65-L, it comes with a user-friendly electronic gas control that allows for easy adjustment of the water temperature. This feature not only provides convenience but also assists in achieving energy savings by optimizing performance based on specific needs.

Overall, the Bradford-White SW-2-65-L water heater combines advanced technology with durable construction, making it an excellent choice for commercial applications requiring consistent and efficient hot water delivery. With its innovative features, energy efficiency, and reliability, it represents a solid investment for any business aiming to meet high-demand hot water needs.
