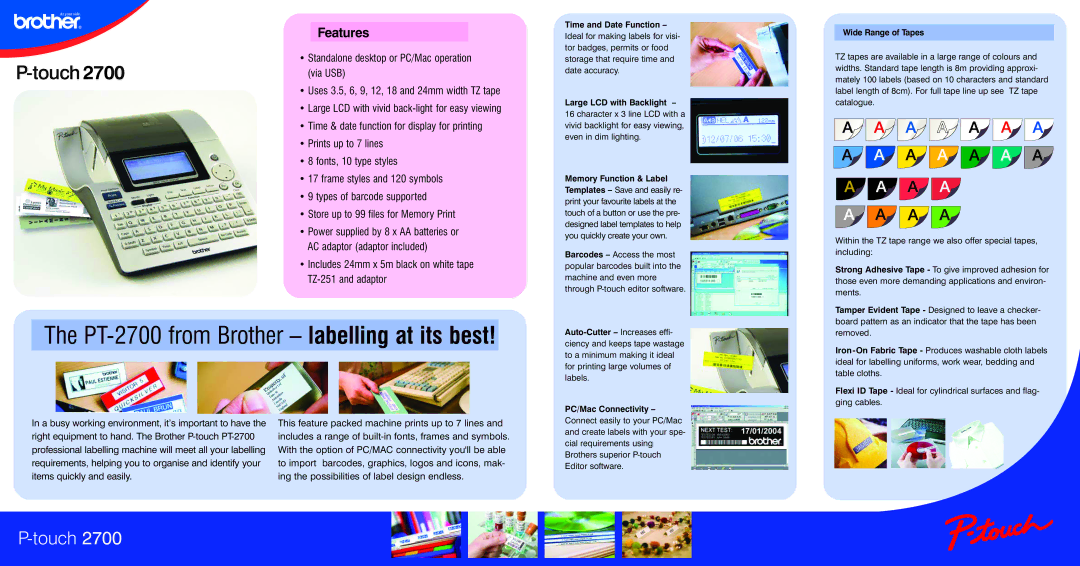

P-touch 2700

P-touch 2700

2700

P-touch 2700

Technical Information

Brother P-touch labels have been subjected to a series of rigorous tests which prove that even when they’re exposed to extreme condi- tions our labels have been designed to last.

Laminated – our unique laminated tape technology ensures that a layer of super-clear polyethylene laminate protects your text.

Temperature Resistant – P-touch labels can withstand extreme temperatures, from -80°C to 150°C.

Strong Adhesion – specially developed adhesive means P- touch labels will stay firmly affixed to a wide range of sur- faces.

Abrasion Resistant – In the P-touch abrasion test using a 1kg sanding device, lettering remained completely intact, only the protective layer was slightly scratched.

Chemical Resistant – after being submerged for 2 hours in a variety of chemical substances, no change in appearance or structure of P-touch labels occurred and the labels remained affixed.

Water Resistant – after submersion in water over a long peri- od, the tape structure and adhesive strength of P-touch labels remained unchanged.

Fade Resistant – after a year in a simulated sunny climate P- touch labels showed very little change visible to the naked eye.

Easy Peel – enables convenient removal of the tape backing before applying the label.

Why do Brother P-touch labels last longer ?

Unlike ordinary labels, Brother’s patented laminated tape technology ensures that a layer of super clear polyethylene laminate protects your text. Our laminated tapes consist of six layers of materials, resulting in a thin, extremely strong label.

Characters formed with thermal transfer ink are actually printed on the underside of the laminate and sandwiched between layers of PET (poly- ester film). This lets you create characters that are virtually indestructi- ble on labels that stand the test of time.

protective coating (PET) 38µm lettering

adhesive (Acryl) base film (PET)

colour layer for the base film adhesive (acrylic) backing paper

Brother Laminate Tape Construction

Tape Widths

18mm

Contact:

Brother International (Aust) Pty Ltd

Web-site: www.brother.com.au Technical Help Web-site:http://solutions.brother.com

NSW/ACT 7 Khartoum Rd. North Ryde NSW 2113 Phone: (02) 9887 4344 Fax: (02) 9870 7234

VIC 1/733 Whitehorse Rd. Mont Albert VIC 3127 Phone: (03) 9899 4844 Fax: (03) 9899 4833

QLD/NT 245 Riverside Drive. West End QLD 4101 Phone: (07) 3255 1211 Fax: (07) 3255 1911

SA/TAS Unit 4, 13 King William Rd. Unley SA 5061 Phone: (08) 8272 1300 Fax: (08) 8272 1199

WA 117 Great Eastern Highway. Belmont WA 6104 Phone: (08) 9478 1955 Fax: (08) 9277 2177 All specifications subject to change without notice

Professional Labelling Solution

Brother P-touch 2700

18mm

<Always at your side

Hardware

Housing Dimensions



179.5 mm (W) x 247.9 mm (D) x 71.8 mm (H)

Housing Weight



850g

Housing Design



Desktop

Housing Colour



Silver & Black

Keyboard



QWERTY

Number of Keys



67

Cutter



Automatic

Power



AA Alkaline Batteries x 8 or AC Adapter (Model AD-3000 included)

LCD



16 chr x 3 line (Graphical display), 128 dots x 48 dots, Back Light

Included Items



User Guide, Software Installation Guide (Windows/Mac), CD-ROM- Printer driver,





P-touch Editor 4.2 (Win) & 3.2.9 (Mac), P-touch Quick Editor 2.0 (Win) & 1.2.9





(Mac), 24 mm Black on White Tape (5m), AC adapter (Model AD-3000), USB cable

Tape Type



TZ-tape

Tape Size



3.5 / 6 / 9 / 12 /18 / 24 mm

Print Head



180 dpi

Print Speed



10mm / sec.







Built-In Software

Fonts



8 fonts (Helsinki, Brussels, US, Florida, Belgium, San Diego, Los Angeles, Calgary )

Characters



329

Symbols



120

Max. Print Height



18.1mm

Character Size (Pts)



8 sizes (6, 9, 12, 18, 24, 36, 42 and extra BIG)

Label Length Setting



30mm - 300mm

Multi - Line



7 lines

Multi - Block



Yes

Tab Function



Yes

Text Buffer



280

Memory



2800 chrs ( 99 areas )

Type Style



Normal / Bold / Outline /Shadow / Solid / Italic / Italic Bold / Italic Outline / Italic Solid /





Italic Shadow

Framing & Fill Pattern



17 Frames, 3 Patterns

Barcode



CODE39, CODE128, EAN8, EAN13, EAN128, UPC-A, UPC-E,





I-2/5(ITF), CODABAR

Copy Printing



1 ~ 99

Mirror Printing



Yes

Vertical Printing



Yes

Numbering



99

Auto Formats



Block Layouts ( 24 layouts ), Templates ( 17 formats)

Battery Weak Display



Yes

Unit Change



Yes (cm / inch)

Auto Power Off



Yes

Print Image Preview



Yes



Minimum System Requirements (for computer connection)







Interface



USB 1.1 or 2.0

Computer OS



PC installed with Microsoft® Windows® 98SE/Me/2000 Professional/XP





Macintosh series with USB port installed with Mac OS 9.1x, Mac OS X 10.1- 10.4.4

Display



SVGA High colour graphics support or higher
