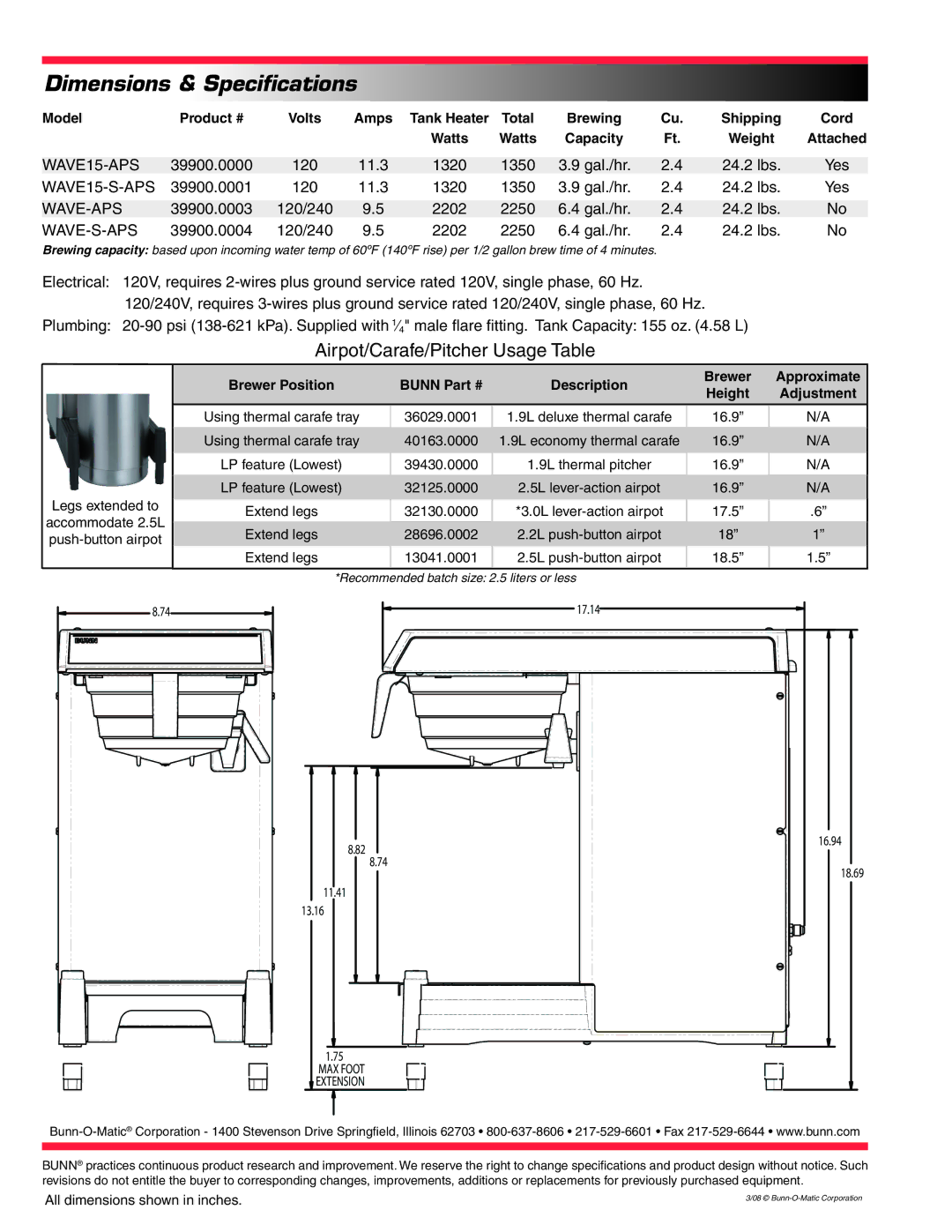

Bunn WAVE-S-APS, WAVE-APS, WAVE15-S-APS, WAVE15-APS specifications Dimensions & Specifications

Dimensions & Specifications

Model		Product #	Volts	Amps	Tank Heater	Total	Brewing	Cu.	Shipping	Cord
					Watts	Watts	Capacity	Ft.	Weight	Attached
WAVE15-APS	39900.0000	120	11.3	1320	1350	3.9 gal./hr.	2.4	24.2 lbs.	Yes
WAVE15-S-APS		39900.0001	120	11.3	1320	1350	3.9 gal./hr.	2.4	24.2 lbs.	Yes
WAVE-APS	39900.0003	120/240	9.5	2202	2250	6.4 gal./hr.	2.4	24.2 lbs.	No
WAVE-S-APS		39900.0004	120/240	9.5	2202	2250	6.4 gal./hr.	2.4	24.2 lbs.	No

Brewing capacity: based upon incoming water temp of 60ºF (140ºF rise) per 1/2 gallon brew time of 4 minutes.

Electrical: 120V, requires 2-wires plus ground service rated 120V, single phase, 60 Hz. 120/240V, requires 3-wires plus ground service rated 120/240V, single phase, 60 Hz.

Plumbing: 20-90 psi (138-621 kPa). Supplied with 1⁄4" male flare fitting. Tank Capacity: 155 oz. (4.58 L)

Airpot/Carafe/Pitcher Usage Table

Legs extended to

accommodate 2.5L push-button airpot

8.74

Brewer Position	BUNN Part #	Description	Brewer	Approximate
			Height	Adjustment
Using thermal carafe tray	36029.0001	1.9L deluxe thermal carafe	16.9”	N/A
Using thermal carafe tray	40163.0000	1.9L economy thermal carafe	16.9”	N/A
LP feature (Lowest)	39430.0000	1.9L thermal pitcher	16.9”	N/A
LP feature (Lowest)	32125.0000	2.5L lever-action airpot	16.9”	N/A
Extend legs	32130.0000	*3.0L lever-action airpot	17.5”	.6”
Extend legs	28696.0002	2.2L push-button airpot	18”	1”
Extend legs	13041.0001	2.5L push-button airpot	18.5”	1.5”
*Recommended batch size: 2.5 liters or less
		17.14

8.82		16.94
	8.74	18.69

11.41

13.16

1.75 MAX FOOT EXTENSION

Bunn-O-Matic®Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com

BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

All dimensions shown in inches.

3/08 © Bunn-O-Matic Corporation
