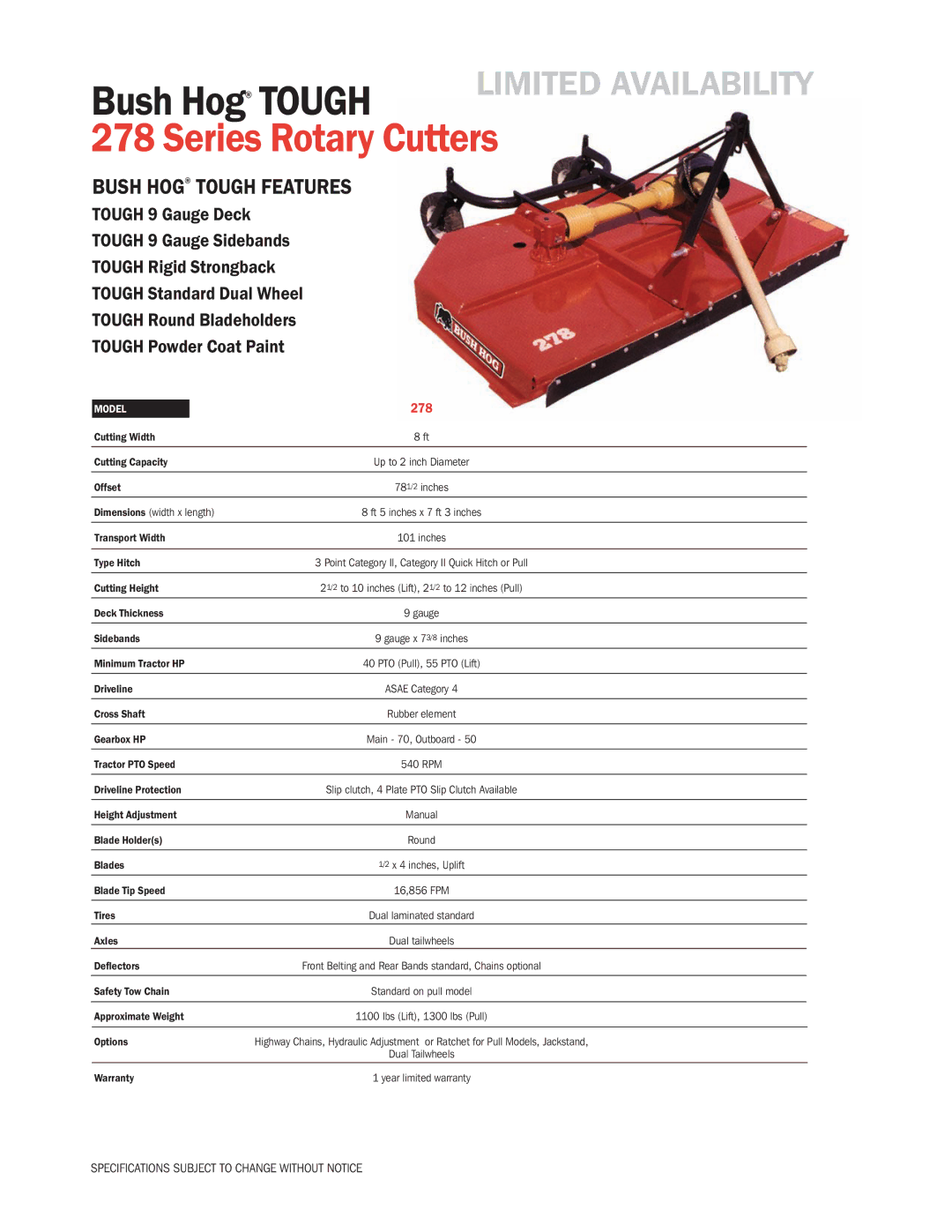

Bush Hog® TOUGH | Limited Availability |
| |
278 Series Rotary Cutters | |
Bush Hog® TOUGH Features
TOUGH 9 Gauge Deck
TOUGH 9 Gauge Sidebands
TOUGH Rigid Strongback
TOUGH Standard Dual Wheel
TOUGH Round Bladeholders
TOUGH Powder Coat Paint
| Model |
| 278 |
Cutting Width | 8 ft | |
|
| |
Cutting Capacity | Up to 2 inch Diameter | |
|
| |
Offset | 781/2 inches | |
|
| |
Dimensions (width x length) | 8 ft 5 inches x 7 ft 3 inches | |
|
| |
Transport Width | 101 inches | |
|
| |
Type Hitch | 3 Point Category II, Category II Quick Hitch or Pull | |
|
| |
Cutting Height | 21/2 to 10 inches (Lift), 21/2 to 12 inches (Pull) | |
|
| |
Deck Thickness | 9 gauge | |
|
| |
Sidebands | 9 gauge x 73/8 inches | |
|
| |
Minimum Tractor HP | 40 PTO (Pull), 55 PTO (Lift) | |
|
| |
Driveline | ASAE Category 4 | |
|
| |
Cross Shaft | Rubber element | |
|
| |
Gearbox HP | Main - 70, Outboard - 50 | |
|
| |
Tractor PTO Speed | 540 RPM | |
|
| |
Driveline Protection | Slip clutch, 4 Plate PTO Slip Clutch Available | |
|
| |
Height Adjustment | Manual | |
|
| |
Blade Holder(s) | Round | |
|
| |
Blades | 1/2 x 4 inches, Uplift | |
|
| |
Blade Tip Speed | 16,856 FPM | |
|
| |
Tires | Dual laminated standard | |
|
| |
Axles | Dual tailwheels | |
Deflectors | Front Belting and Rear Bands standard, Chains optional | |
|
| |
Safety Tow Chain | Standard on pull model | |
|
| |
Approximate Weight | 1100 lbs (Lift), 1300 lbs (Pull) | |
|
| |
Options | Highway Chains, Hydraulic Adjustment or Ratchet for Pull Models, Jackstand, | |
|
| Dual Tailwheels |
Warranty | 1 year limited warranty | |
| SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE | Page 22 |
