1.Volume & on/off switch

2.3.5mm mic-in

3.Tone control adjusts audio

4.Full day’s use on batteries, can still be used while recharging

5.Tripod mount for enhanced projection with optional TP285 tripod

6.Included headset for hands-free flexibility and movement

7.Aux-in to connect with LCD projectors or laptop computers for enhanced audio amplification during multimedia presentations

Molded base stabilizes unit for desktop use

Includes rechargeable NiMH batteries and headset mic

One year warranty for school use - unlike items purchased from consumer electronics stores whose warranties would be voided if used in schools

Perfect for mid-sized groups, classroom presentations and business meetings, this multi-purpose personal amplifier is light enough to wear on a belt, but also has a stability-formed base for desktop use. Its ability to also connect with projectors and laptop computers makes the PA-285 more versatile than other personal speaker systems.

“Project Intercept"

Please contact us immediately if you experience any

difficulties with your VoiceSaver PA. Our “Project Intercept" cus- tomer service program will quickly repair or replace items under warranty. Simply contact us via phone or email rilane@califone.com.

Visit our website at www.califone.com to learn more about the complete line of wired and wireless Califone® headphones and other audio products including: Public address systems, wireless microphone systems, group listening centers, multimedia players and computer peripheral products.

We are proud of helping teachers enhance student understanding and achievements since 1947, with your satisfaction as our first priority.

This Personal PA carries a one year warranty and service support available through authorized dealers nationwide.

Distributed by:

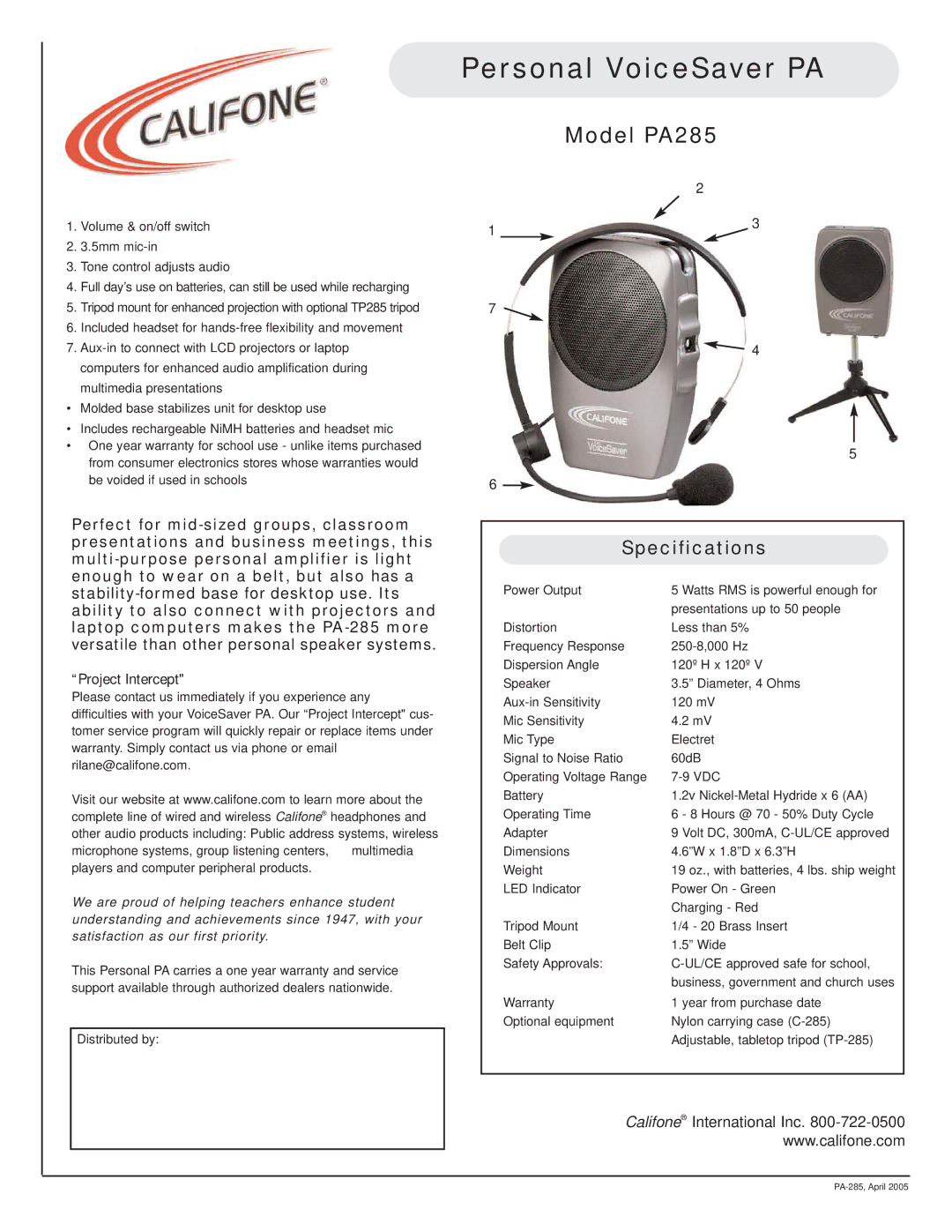

Personal VoiceSaver PA

Model PA285

2

1

3





7

4

5

6

Specifications

Power Output

5 Watts RMS is powerful enough for



presentations up to 50 people

Distortion

Less than 5%

Frequency Response

250-8,000 Hz

Dispersion Angle

120º H x 120º V

Speaker

3.5” Diameter, 4 Ohms

Aux-in Sensitivity

120 mV

Mic Sensitivity

4.2 mV

Mic Type

Electret

Signal to Noise Ratio

60dB

Operating Voltage Range

7-9 VDC

Battery

1.2v Nickel-Metal Hydride x 6 (AA)

Operating Time

6 - 8 Hours @ 70 - 50% Duty Cycle

Adapter

9 Volt DC, 300mA, C-UL/CE approved

Dimensions

4.6”W x 1.8”D x 6.3”H

Weight

19 oz., with batteries, 4 lbs. ship weight

LED Indicator

Power On - Green



Charging - Red

Tripod Mount

1/4 - 20 Brass Insert

Belt Clip

1.5” Wide

Safety Approvals:

C-UL/CE approved safe for school,



business, government and church uses

Warranty

1 year from purchase date

Optional equipment

Nylon carrying case (C-285)



Adjustable, tabletop tripod (TP-285)

Califone® International Inc. 800-722-0500

www.califone.com

PA-285, April 2005
