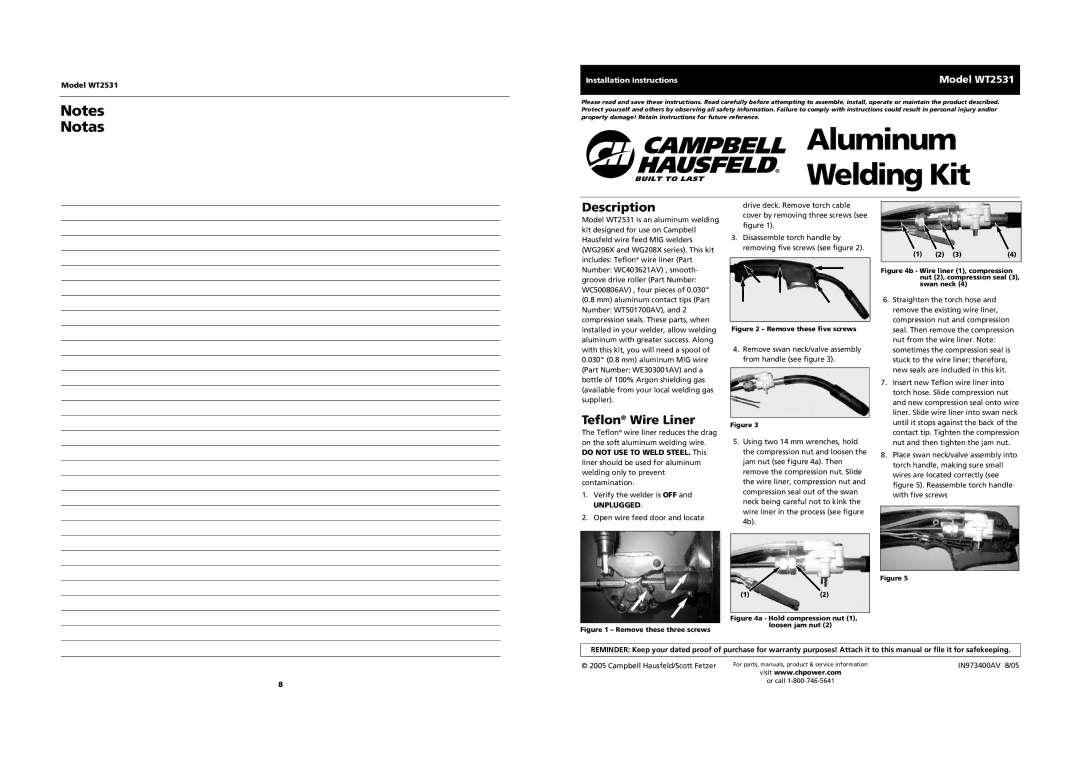

Installation Instructions | Model WT2531 |
|
|
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.
| Aluminum |
BUILT TO LAST | Welding Kit |
Description
Model WT2531 is an aluminum welding kit designed for use on Campbell Hausfeld wire feed MIG welders (WG206X and WG208X series). This kit includes: Teflon® wire liner (Part Number: WC403621AV) , smooth- groove drive roller (Part Number: WC500806AV) , four pieces of 0.030" (0.8 mm) aluminum contact tips (Part Number: WT501700AV), and 2 compression seals. These parts, when installed in your welder, allow welding aluminum with greater success. Along with this kit, you will need a spool of 0.030" (0.8 mm) aluminum MIG wire (Part Number: WE303001AV) and a bottle of 100% Argon shielding gas (available from your local welding gas supplier).
Teflon® Wire Liner
The Teflon® wire liner reduces the drag on the soft aluminum welding wire.
DO NOT USE TO WELD STEEL. This
liner should be used for aluminum welding only to prevent contamination.
1.Verify the welder is OFF and
UNPLUGGED.
2.Open wire feed door and locate
drive deck. Remove torch cable cover by removing three screws (see figure 1).
3.Disassemble torch handle by removing five screws (see figure 2).
Figure 2 – Remove these five screws
4.Remove swan neck/valve assembly from handle (see figure 3).
Figure 3
5.Using two 14 mm wrenches, hold the compression nut and loosen the jam nut (see figure 4a). Then remove the compression nut. Slide the wire liner, compression nut and compression seal out of the swan neck being careful not to kink the wire liner in the process (see figure 4b).
(1) | (2) | (3) | (4) |
|
|
|
|
Figure 4b - Wire liner (1), compression nut (2), compression seal (3), swan neck (4)
6.Straighten the torch hose and remove the existing wire liner, compression nut and compression seal. Then remove the compression nut from the wire liner. Note: sometimes the compression seal is stuck to the wire liner; therefore, new seals are included in this kit.
7.Insert new Teflon wire liner into torch hose. Slide compression nut and new compression seal onto wire liner. Slide wire liner into swan neck until it stops against the back of the contact tip. Tighten the compression nut and then tighten the jam nut.
8.Place swan neck/valve assembly into torch handle, making sure small wires are located correctly (see figure 5). Reassemble torch handle with five screws
Figure 5
Figure 1 – Remove these three screws
(1)(2)
Figure 4a - Hold compression nut (1), loosen jam nut (2)
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
