Chief Manufacturing installation instructions Before You Begin, Model FTR Series

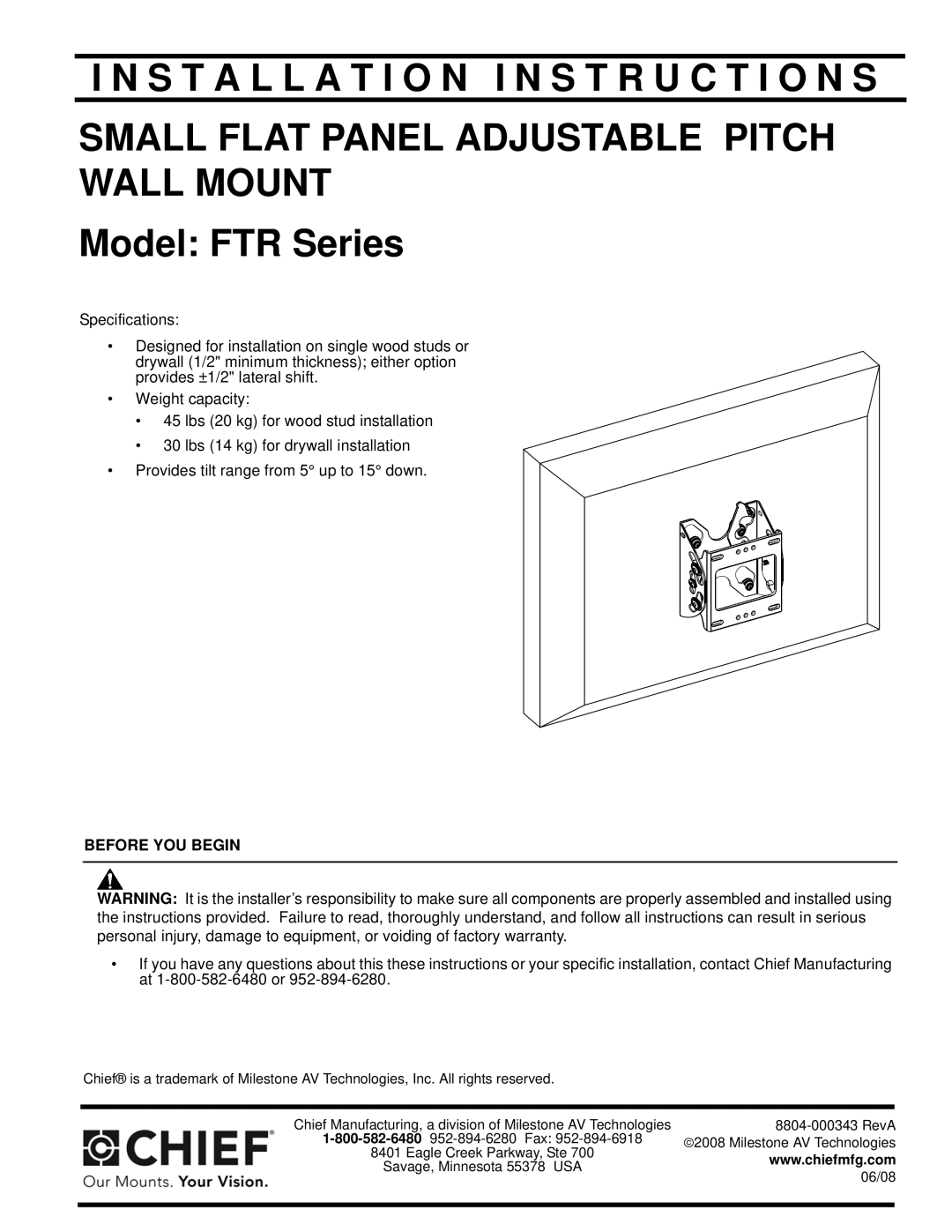

I N S T A L L A T I O N I N S T R U C T I O N S

SMALL FLAT PANEL ADJUSTABLE PITCH WALL MOUNT

Model: FTR Series

Specifications:

•Designed for installation on single wood studs or drywall (1/2" minimum thickness); either option provides ±1/2" lateral shift.

•Weight capacity:

•45 lbs (20 kg) for wood stud installation

•30 lbs (14 kg) for drywall installation

•Provides tilt range from 5° up to 15° down.

BEFORE YOU BEGIN

WARNING: It is the installer’s responsibility to make sure all components are properly assembled and installed using the instructions provided. Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty.

•If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing at 1-800-582-6480 or 952-894-6280.
