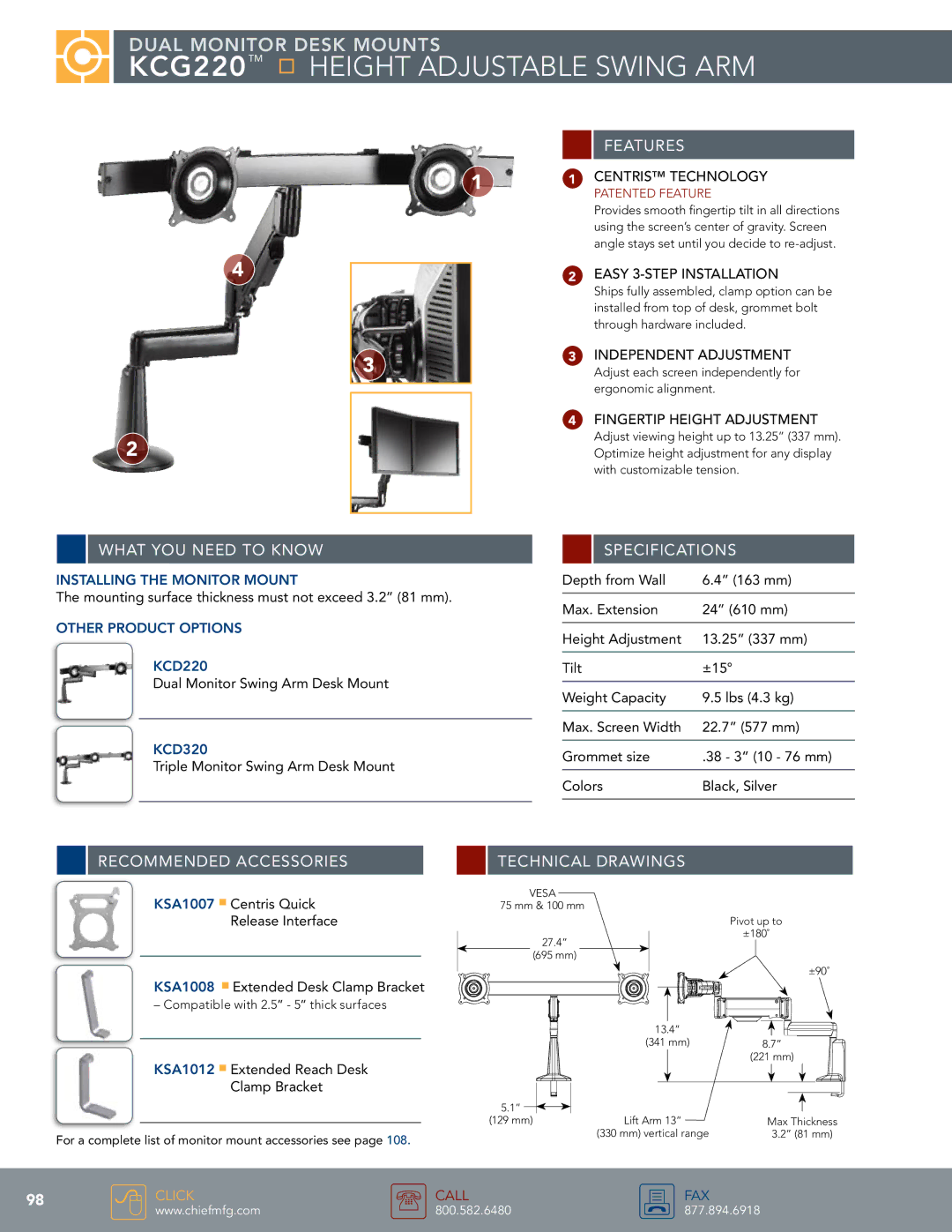

Dual monitor Desk mounts
KCG220™
Height Adjustable Swing Arm
4
2
1
3
FEATURES
1Centris™ Technology
PATENTED FEATURE
Provides smooth fingertip tilt in all directions using the screen’s center of gravity.. Screen angle stays set until you decide to
2Easy
Ships fully assembled, clamp option can be installed from top of desk, grommet bolt through hardware included..
3Independent Adjustment
Adjust each screen independently for ergonomic alignment..
4Fingertip Height Adjustment
Adjust viewing height up to 13..25” (337 mm).. Optimize height adjustment for any display with customizable tension..
WHAT YOU NEED TO KNOW
Installing the Monitor mount
The mounting surface thickness must not exceed 3.2” (81 mm).
other product options
KCD220
Dual Monitor Swing Arm Desk Mount
KCD320
Triple Monitor Swing Arm Desk Mount
SPECIFICATIONS
Depth from Wall | 6.4” (163 mm) |
|
|
Max. Extension | 24” (610 mm) |
|
|
Height Adjustment | 13.25” (337 mm) |
|
|
Tilt | ±15° |
|
|
Weight Capacity | 9.5 lbs (4.3 kg) |
|
|
Max. Screen Width | 22.7” (577 mm) |
|
|
Grommet size | .38 - 3” (10 - 76 mm) |
|
|
Colors | Black, Silver |
|
|
RECOMMENDED ACCESSORIES
KSA1007 n Centris Quick release Interface
TECHNICAL DRAWINGS
VESA
75 mm & 100 mm
Pivot up to
27..4”
±180˚
KSA1008 n Extended Desk Clamp Bracket
– Compatible with 2..5” - 5” thick surfaces
KSA1012 n Extended Reach Desk
Clamp Bracket
For a complete list of monitor mount accessories see page 108.
(695 mm)
±90˚
13..4”
(341 mm)8..7”
(221 mm)
5..1” |
|
|
(129 mm) | Lift Arm 13” | Max Thickness |
| (330 mm) vertical range | 3..2” (81 mm) |
