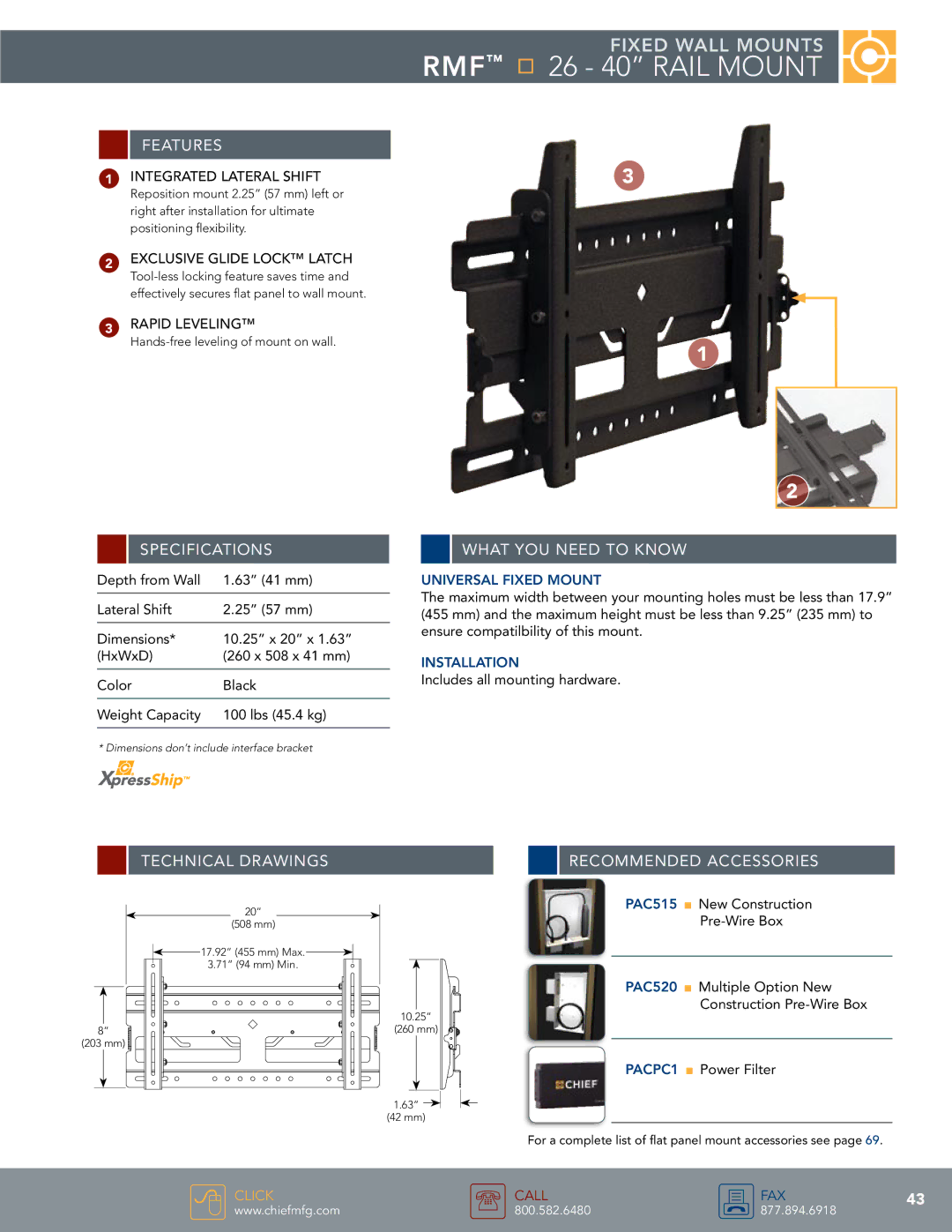

Chief Manufacturing specifications RMF 26 - 40” Rail mount, fixed wall mounts, Features, Click

FEATURES

1Integrated Lateral shift

Reposition mount 2.25” (57 mm) left or right after installation for ultimate positioning flexibility.

2Exclusive Glide Lock™ Latch

Tool-less locking feature saves time and effectively secures flat panel to wall mount.

3Rapid Leveling™

Hands-free leveling of mount on wall.

SPECIFICATIONS

Depth from Wall	1.63” (41 mm)
Lateral Shift	2.25” (57 mm)
Dimensions*	10.25” x 20” x 1.63”
(HxWxD)	(260 x 508 x 41 mm)
Color	Black
Weight Capacity	100 lbs (45.4 kg)

* Dimensions don’t include interface bracket

fixed wall mounts

RMF™    26 - 40” Rail mount

3

1

2

WHAT YOU NEED TO KNOW

UNIVERSAL FIXED MOUNT

The maximum width between your mounting holes must be less than 17.9” (455 mm) and the maximum height must be less than 9.25” (235 mm) to ensure compatilbility of this mount.

INSTALLATION

Includes all mounting hardware.

TECHNICAL DRAWINGS

20”

(508 mm)

17.92” (455 mm) Max.

3.71” (94 mm) Min.

8”

(203 mm)

RECOMMENDED ACCESSORIES

PAC515  n  New Construction

  Pre-Wire Box

PAC520  n  Multiple Option New

  Construction Pre-Wire Box

10.25”

(260 mm)

PACPC1  n  Power Filter

1.63” (42 mm)

For a complete list of flat panel mount accessories see page 69.
