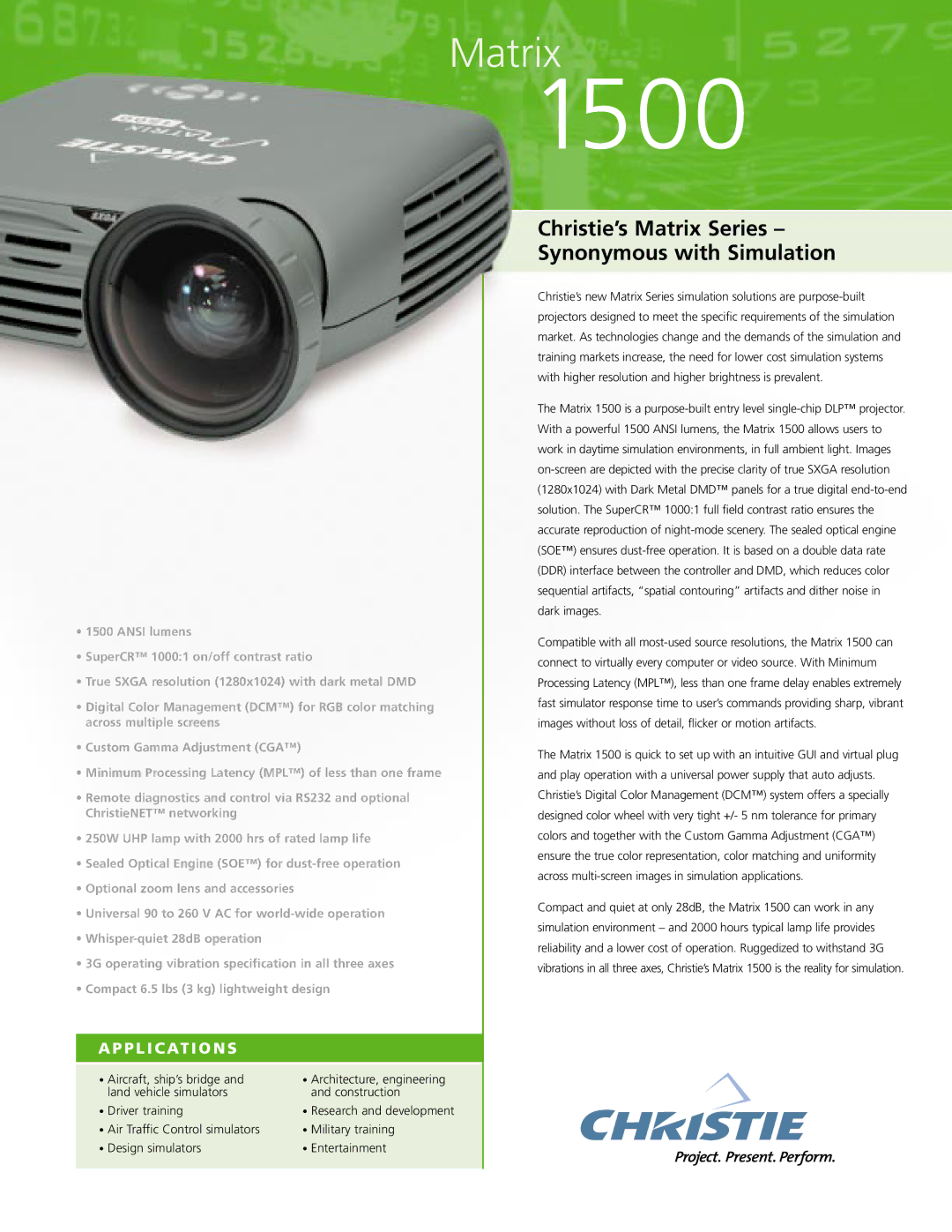

Matrix

1500

•1500 ANSI lumens

•SuperCR™ 1000:1 on/off contrast ratio

•True SXGA resolution (1280x1024) with dark metal DMD

•Digital Color Management (DCM™) for RGB color matching across multiple screens

•Custom Gamma Adjustment (CGA™)

•Minimum Processing Latency (MPL™) of less than one frame

•Remote diagnostics and control via RS232 and optional ChristieNET™ networking

•250W UHP lamp with 2000 hrs of rated lamp life

•Sealed Optical Engine (SOE™) for dust-free operation

•Optional zoom lens and accessories

•Universal 90 to 260 V AC for world-wide operation

•Whisper-quiet 28dB operation

•3G operating vibration specification in all three axes

•Compact 6.5 lbs (3 kg) lightweight design

A P P L I C AT I O N S

• Aircraft, ship’s bridge and	• Architecture, engineering
land vehicle simulators	and construction
• Driver training	• Research and development
• Air Traffic Control simulators	• Military training
• Design simulators	• Entertainment

Christie’s Matrix Series – Synonymous with Simulation

Christie’s new Matrix Series simulation solutions are purpose-built projectors designed to meet the specific requirements of the simulation market. As technologies change and the demands of the simulation and training markets increase, the need for lower cost simulation systems with higher resolution and higher brightness is prevalent.

The Matrix 1500 is a purpose-built entry level single-chip DLP™ projector. With a powerful 1500 ANSI lumens, the Matrix 1500 allows users to work in daytime simulation environments, in full ambient light. Images on-screen are depicted with the precise clarity of true SXGA resolution (1280x1024) with Dark Metal DMD™ panels for a true digital end-to-end solution. The SuperCR™ 1000:1 full field contrast ratio ensures the accurate reproduction of night-mode scenery. The sealed optical engine (SOE™) ensures dust-free operation. It is based on a double data rate (DDR) interface between the controller and DMD, which reduces color sequential artifacts, “spatial contouring” artifacts and dither noise in dark images.

Compatible with all most-used source resolutions, the Matrix 1500 can connect to virtually every computer or video source. With Minimum Processing Latency (MPL™), less than one frame delay enables extremely fast simulator response time to user’s commands providing sharp, vibrant images without loss of detail, flicker or motion artifacts.

The Matrix 1500 is quick to set up with an intuitive GUI and virtual plug and play operation with a universal power supply that auto adjusts. Christie’s Digital Color Management (DCM™) system offers a specially designed color wheel with very tight +/- 5 nm tolerance for primary colors and together with the Custom Gamma Adjustment (CGA™) ensure the true color representation, color matching and uniformity across multi-screen images in simulation applications.

Compact and quiet at only 28dB, the Matrix 1500 can work in any simulation environment – and 2000 hours typical lamp life provides reliability and a lower cost of operation. Ruggedized to withstand 3G vibrations in all three axes, Christie’s Matrix 1500 is the reality for simulation.
