Christie Digital Systems X10 Brightness, Contrast Ratio, Resolution/Digital Processing, Inputs

Roadie X10 • Specifications

Brightness

•10000 ANSI lumens at 1.9kW operation (typical)

•Over 90% brightness uniformity across the screen

Contrast Ratio

•Greater than 250:1 ANSI, greater than 400:1 full field

Resolution/Digital Processing

•3-chip 1.1" DMD™‚ (Digital Micromirror Device) system

•True XGA 1024 x 768 chip resolution

•13-bit user selectable gamma table

•More than 1 billion displayable colors

Dynamic Scaling

•Resizing capabilities to scale down from 1600 x 1200 and up from 640 x 480 to SXGA resolution

•Slot for an optional input module

•Full compatibility with third-party switchers

HDTV/DTV Compatibility

•Full HDTV/DTV compatibility on analog RGB/YPbPr inputs

•Accepts 480i, 480p, 576i, 576p, 720p, 1035i, and 1080i formats at all applicable frame/field rates

•Accepts 1080p at 24, 25 and 30Hz frame rates

•Optional HDTV Serial Digital Input Module

Various Keypads

•Standard hand-held IR backlit remote keypad, front and rear infrared sensors

•Built-in backlit keypad

•Color temperature adjustment range: 32000K to 93000K

•User replaceable lamp within 5 minutes

•Typical lifetime: 1000 hours

Variable Lamp Power Supply

•User adjustable lamp power, levels as low as 1000W

Power Requirements

•Line voltage 220 VAC to 240 VAC +/- 10% @ 50/60Hz

•Power consumption: 2800W maximum

•Thermal dissipation: 9500 BTU/hr

Size and Weight

•225 lbs (102 kg)

•29" W x 54" L x 16" H

•73.6cm W x 137.16cm L x 40.64cm H

F E AT U R E S

Corporate Offices

USA

10550 Camden Drive

Cypress, CA 90630

PH: 714-236-8610

FX: 714-503-3385

Toll free: (800) 407-7727 (NA only) sales-us@christiedigital.com

CANADA

•Greater than 10000 ANSI lumens with a unique 1.9kW Xenon illumination system.

•Independent horizontal and vertical size adjustment for graphics and video inputs

Horizontal Frequency Range

•15 to 120kHz

Vertical Frequency Range

•24 to 120Hz

Field Interchangeable Optional Lenses

•Fixed short throw lens XGA 0.8:1

•Short zoom XGA lens 1.5 2.5: 1 becomes 1.2-2:1

•Zoom XGA lens 2.5-4:1 becomes 2-3.2:1

•Zoom XGA lens 4-7:1 becomes 3.2-5.6:1

•Screen size 1.5m - 12.2m (5ft - 40ft) diagonal

Power Lens Mount

•Fully-motorized (with manual override) lens focus, zoom, horizontal and vertical offset

•Unique ILS™ (Intelligent Lens System) – Lens position (zoom, focus, horizontal and vertical offset) is automatically recalled during channel switching

•Lens mount tilt adjustment

•Built-in light shutter

Inputs

•Built-in RGB/YUV/YPbPr inputs allowing separate H and V syncs, composite sync and sync-on-green/ luma (5 BNC connectors)

•Multi-standard Video Decoder Module (NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM) with one composite video input (BNC and RCA connectors) and one S-video input (two BNC and 4-pin mini-DIN connectors)

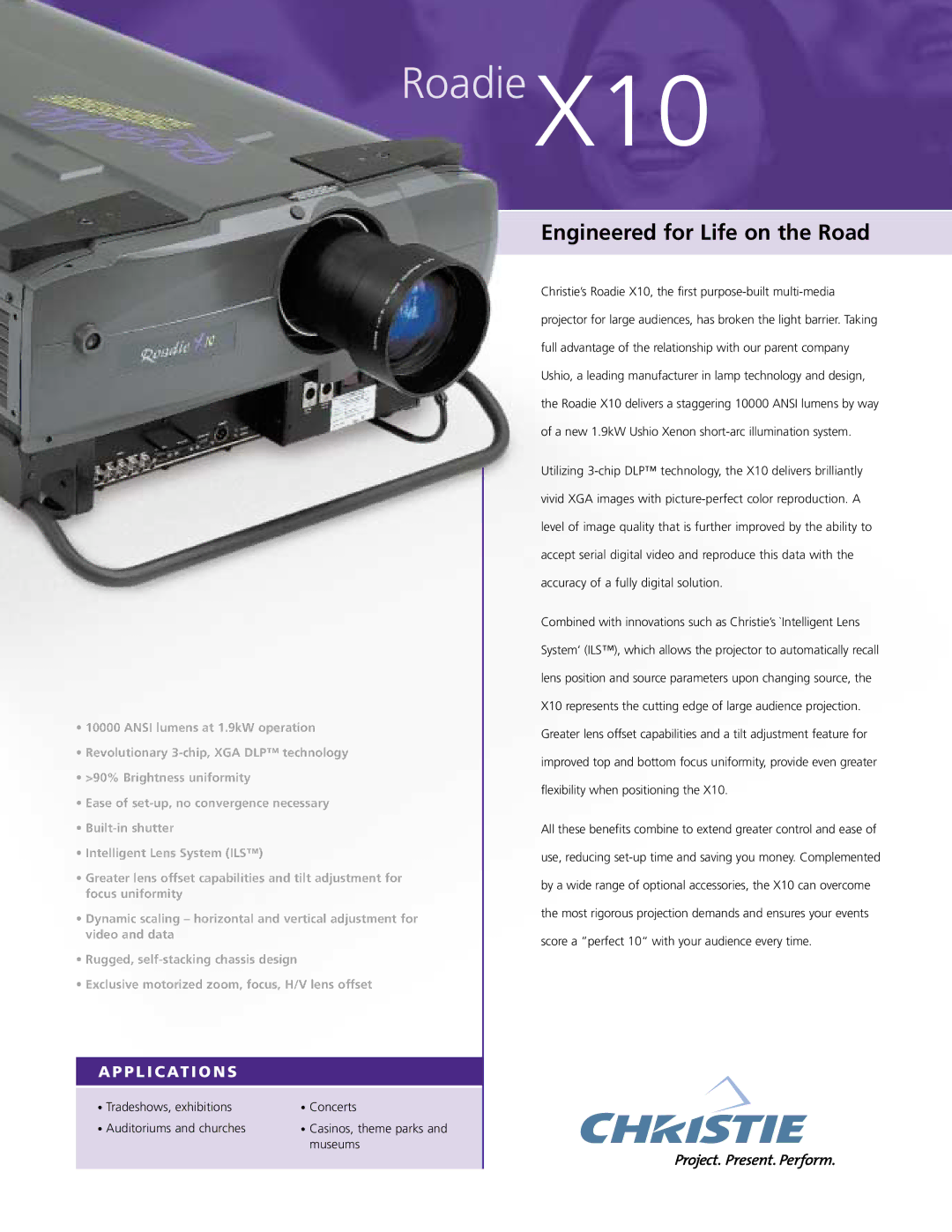

•The first purpose-built multi-media projector, delivering brilliant vivid XGA images.

•Optional RS422 two-way remote controller with LCD display using

6-pin XLR connector with range of 600ft (183m)

•Optional wired backlit remote keypad with 3-pin XLR connector

Control/Networking

•Third party control system and switcher compatibility

•Dual RS232 ports for computer control, with loop-through for connection of multiple projectors

•Dual RS422 ports for connection of optional LCD two-way controllers and loop-through to multiple projectors up to 600ft (183m)

Diagnostics

•Built-in LCD diagnostic display indicates operational status and error messages

•Power and Status LED

•Full diagnostics through RS232 9-pin D connector

Graphical User Interface

•Auto set-up feature

•“Direct Access” intuitive user interface for complete projector control in

5 world languages

•On-screen user movable menus to fit different image aspect ratios

(4:3, 5:4, 16:9, etc.)

•On-screen help menus

•100 channel memories

•Auto power feature

Lamp Specification/Color

Temperature

•1900W SHB Xenon illumination system

•Constant color temperature over the lamp life

•Dynamic scaling - horizontal and vertical adjustment for video and data.

Standard Accessories

•IR remote keypad with batteries

•User manual with warranty card

Optional Accessories

•Serial Digital Input (SMPTE 259M/CCIR 601) with loop-through feature

•Digital HDTV Input module (with loop- through feature) compatible with

all known HDTV formats

•PanelLink™ Input module

•Compatible with all Marquee Input modules

•RS422 two-way remote LCD controller

•Replacement lamp module

•Remote infrared sensor

•Service manual

•Librarian communication software

•Transit case

Regulatory Approvals

•CSA, UL and European safety approvals

•North American and European EMI/EMC approvals

Warranty

•Two years parts and labor

•Accessories: 90 days
