Chapter 9 APC Power Strips
Entering the APC Configuration into VFrame GUI
Figure
Entering the APC Configuration into VFrame GUI
Once you have set up APC power for any node, discover the server in VFrame and enter the APC information. This allows the VFrame Director to power on/off the physical server.
The addition of physical servers and entry of the power control information is described in the Cisco VFrame InfiniBand Director User Guide.

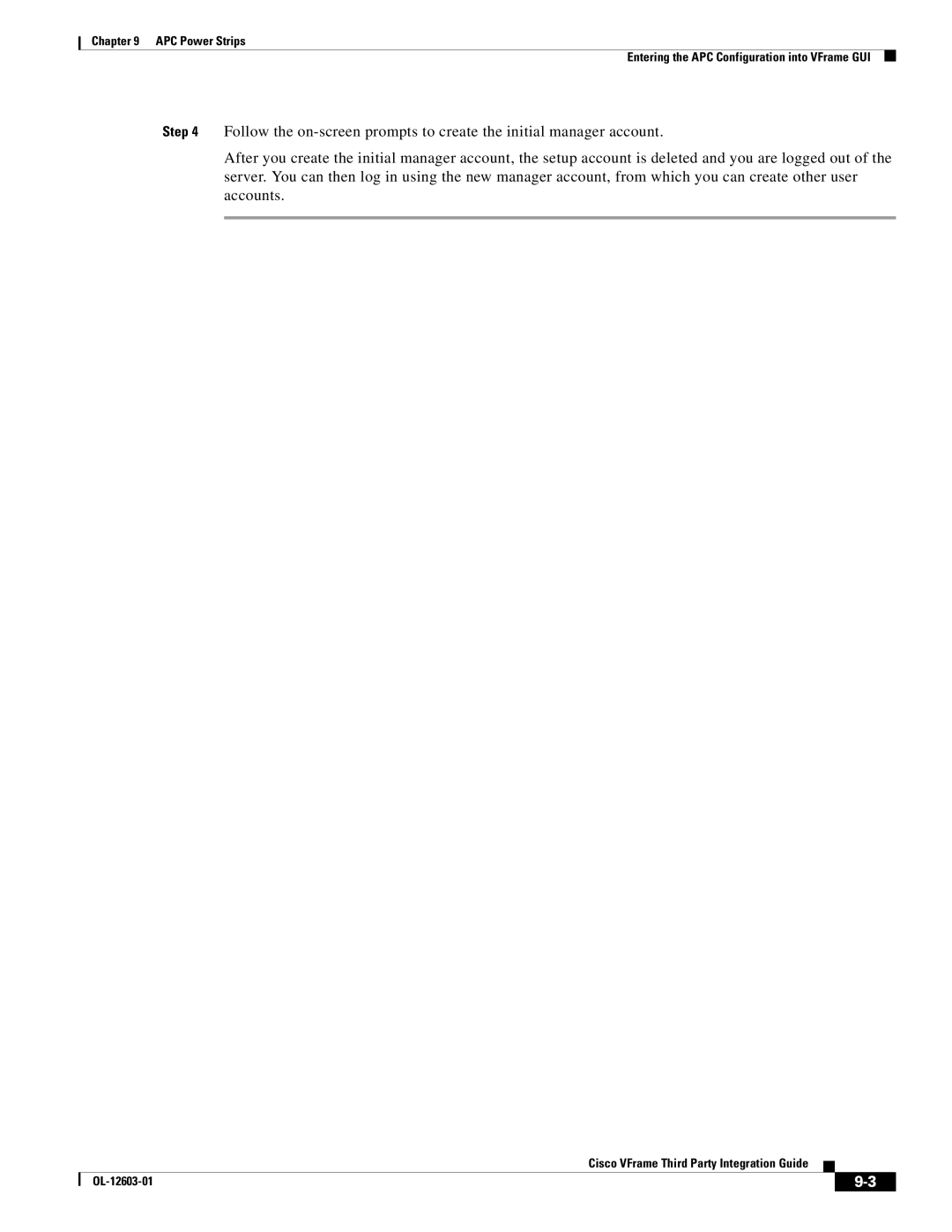

Creating the Initial Manager Account
After you install the server and configure the SP, you must create the initial manager account to access the server. You can then perform initial configuration of the server and create additional user accounts. A setup account is included with each server. This setup account has no password. When you log in to the SP the first time using the setup account, you are prompted to define the initial manager account with a password and an optional public key.
To create the initial manager account, follow these steps:
Step 1 Log in to the setup account
Step 2 Using an SSHv1 or SSHv2 client, connect to the IP address of the SP.
Step 3 Authenticate as the user setup with no password required:# ssh sp_ip_address
Cisco VFrame Third Party Integration Guide
| ||
|
