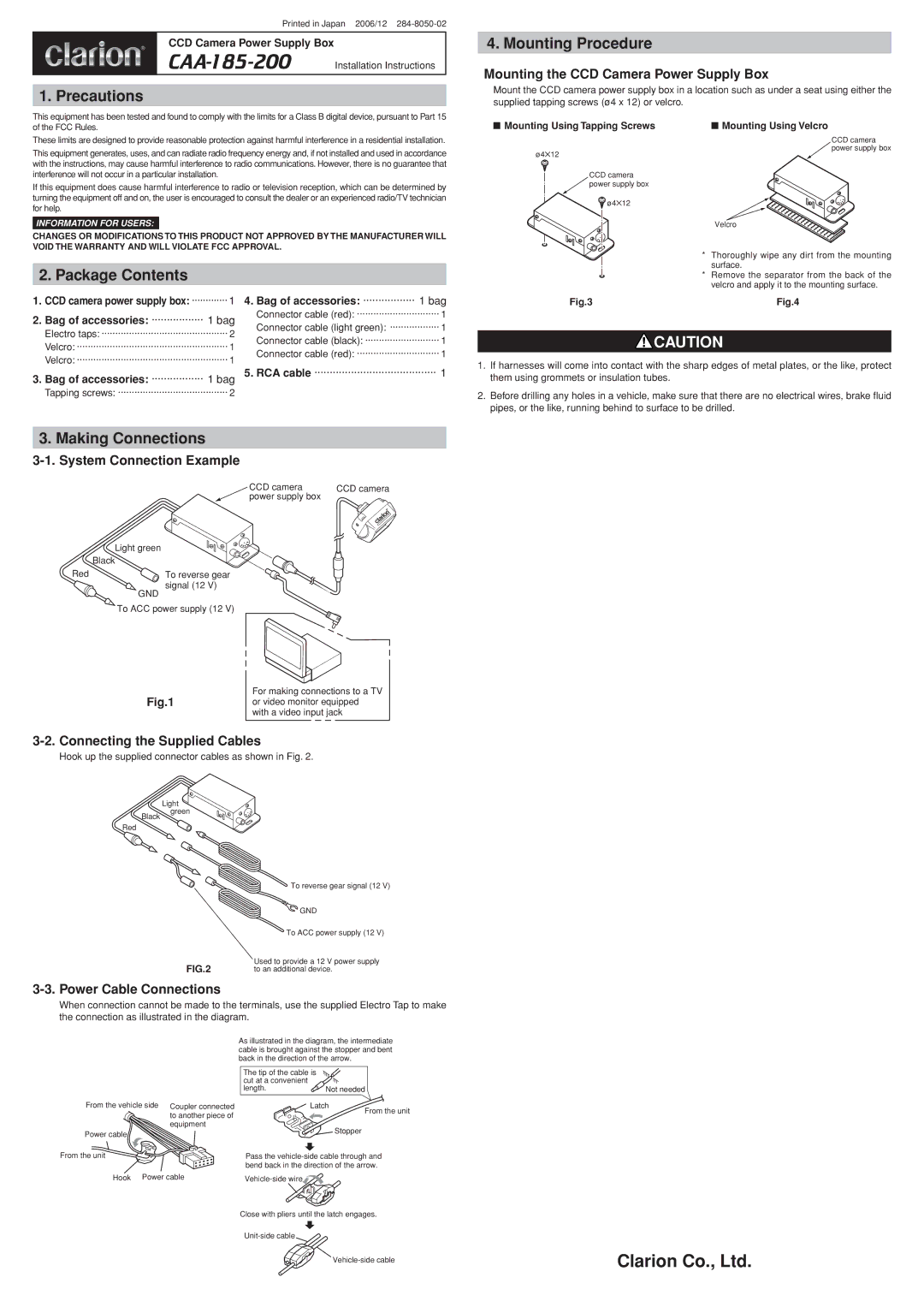

Printed in Japan 2006/12 284-8050-02

CCD Camera Power Supply Box

CAA-185-200

Installation Instructions

1. Precautions

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

INFORMATION FOR USERS:.

CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL.

2.Package Contents

1.CCD camera power supply box: ············· 1 4. Bag of accessories: ················· 1 bag

4. Mounting Procedure

Mounting the CCD Camera Power Supply Box

Mount the CCD camera power supply box in a location such as under a seat using either the supplied tapping screws (ø4 x 12) or velcro.

Mounting Using Tapping Screws

Mounting Using Velcro

CCD camera

power supply box

ø412

CCD camera power supply box

ø412

Velcro

* Thoroughly wipe any dirt from the mounting surface.

* Remove the separator from the back of the velcro and apply it to the mounting surface.

Fig.3

Fig.4

2. Bag of accessories: ················· 1 bag

Connector cable (red): ······························ 1

Connector cable (light green): ·················· 1

Electro taps: ·············································· 2

Velcro: ······················································· 1

Velcro: ······················································· 1

Connector cable (black): ··························· 1

Connector cable (red): ······························ 1

CAUTION

3. Bag of accessories: ················· 1 bag 5. RCA cable ········································ 1 Tapping screws: ········································ 2

1.If harnesses will come into contact with the sharp edges of metal plates, or the like, protect them using grommets or insulation tubes.

2.Before drilling any holes in a vehicle, make sure that there are no electrical wires, brake fluid pipes, or the like, running behind to surface to be drilled.

3. Making Connections

3-1. System Connection Example

CCD camera

CCD camera

power supply box





Light green



Black

Red

To reverse gear



signal (12 V)



GND

To ACC power supply (12 V)

Fig.1

For making connections to a TV

or video monitor equipped



with a video input jack

3-2. Connecting the Supplied Cables

Hook up the supplied connector cables as shown in Fig. 2.

Black

Red

Light green



To reverse gear signal (12 V)



GND



To ACC power supply (12 V)

FIG.2

Used to provide a 12 V power supply

to an additional device.

3-3. Power Cable Connections

When connection cannot be made to the terminals, use the supplied Electro Tap to make the connection as illustrated in the diagram.

From the vehicle side Coupler connected to another piece of equipment

Power cable

From the unit

Hook Power cable

As illustrated in the diagram, the intermediate cable is brought against the stopper and bent back in the direction of the arrow.

The tip of the cable is



cut at a convenient



length.

Not needed

Latch

From the unit

Stopper

Pass the vehicle-side cable through and bend back in the direction of the arrow.

Vehicle-side wire

Close with pliers until the latch engages.

Unit-side cable

Vehicle-side cable

Clarion Co., Ltd.
