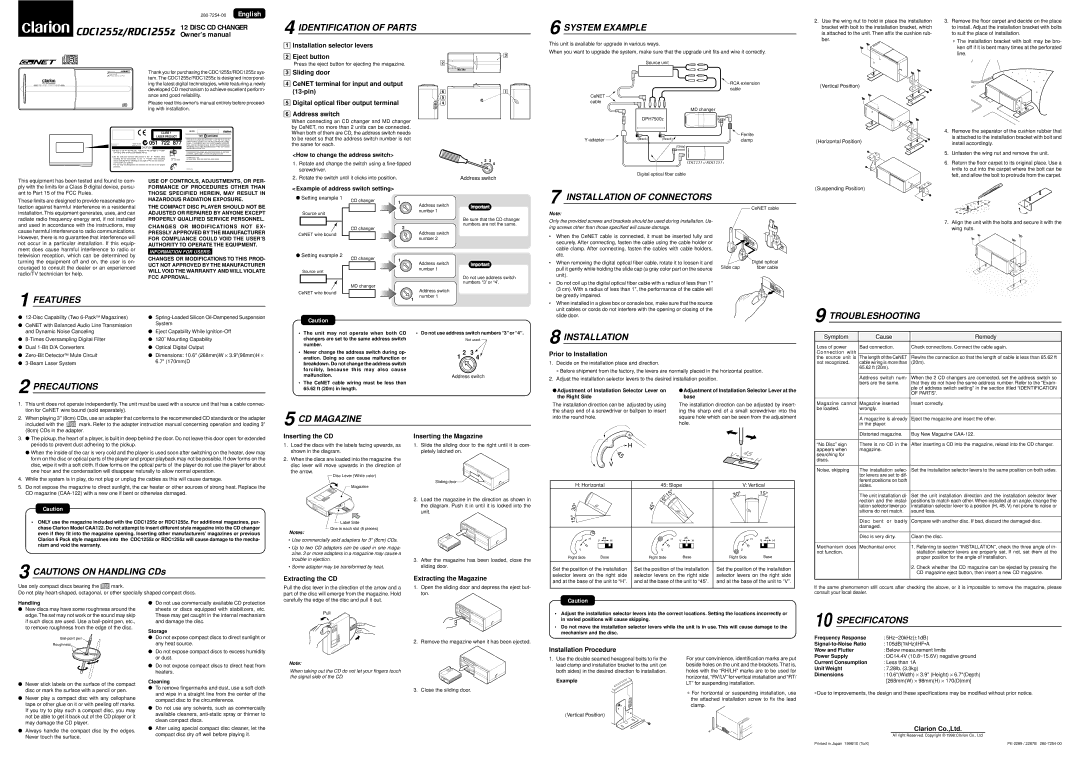

CDC1255z
8-TIMES OVERSAMPLING DIGITAL FILTER /DUAL 1-BIT DAC
OPTICAL DIGITAL OUTPUT
DIGITAL AUDIO/12- DISC CD CHANGER
Thank you for purchasing the CDC1255z/RDC1255z sys- tem. The CDC1255z/RDC1255z is designed incorporat- ing the latest digital technologies, while featuring a newly developed CD mechanism to achieve excellent perform- ance and good reliability.
Please read this owner’s manual entirely before proceed- ing with installation.
1Installation selector levers
2Eject button
Press the eject button for ejecting the magazine.
3Sliding door
4CeNET terminal for input and output (13-pin)
5Digital optical fiber output terminal
6Address switch
3
2
This unit is available for upgrade in various ways.
When you want to upgrade the system, make sure that the upgrade unit fits and wire it correctly.
Source unit | |
| RCA extension |
| cable |
CeNET | |
cable | |
| MD changer |
DPH7500z | (Gray) |
ken off if it is bent many times at the perforated |
line. |
(Vertical Position)
This equipment has been tested and found to com- ply with the limits for a Class B digital device, pursu- ant to Part 15 of the FCC Rules.
USE OF CONTROLS, ADJUSTMENTS, OR PER- FORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN
2. Rotate the switch until it clicks into position. |
<Example of address switch setting>
Address switch
(Suspending Position)
These limits are designed to provide reasonable pro- tection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is en- couraged to consult the dealer or an experienced radio/TV technician for help.
HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
CHANGES OR MODIFICATIONS NOT EX- PRESSLY APPROVED BY THE MANUFACTURER FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
INFORMATION FOR USERS:.
CHANGES OR MODIFICATIONS TO THIS PROD- UCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL.
●Setting example 1
Source unit
CeNET wire bound
●Setting example 2
Source unit
CD changer
CD changer
CD changer
MD changer
1
Address switch number 1
2
Address switch number 2
1
Address switch number 1
IImportant
Be sure that the CD changer numbers are not the same.
Important
Do not use address switch numbers “3’ or “4’.
7 INSTALLATION OF CONNECTORS
CeNET cable
Note:
Only the provided screws and brackets should be used during installation. Us- ing screws other than those specified will cause damage.
• When the CeNET cable is connected, it must be inserted fully and securely. After connecting, fasten the cable using the cable holder or cable clamp. After connecting, fasten the cables with cable holders, etc.
• When removing the digital optical fiber cable, rotate it to loosen it and | Slide cap | Digtal optical |
pull it gently while holding the slide cap (a gray color part on the source | fiber cable |
unit). | | |
• Do not coil up the digital optical fiber cable with a radius of less than 1"
7.Align the unit with the bolts and secure it with the wing nuts.
● 12-Disc Capability (Two 6-Pack™Magazines) | ● Spring-Loaded Silicon Oil-Dampened Suspension |
● CeNET with Balanced Audio Line Transmission | System |
|
and Dynamic Noise Canceling | ● Eject Capability While lgnition-Off |
● 8-Times Oversampling Digital Filter | ● 120˚ Mounting Capability |
● Dual 1-Bit D/A Converters | ● Optical Digital Output |
● Zero-Bit Detector™ Mute Circuit | ● Dimensions: 10.6" (268mm)W × 3.9"(98mm)H × |
● 3-Beam Laser System | 6.7" (170mm)D |
|
2 PRECAUTIONS
1. | This unit does not operate independently. The unit must be used with a source unit that has a cable connec- |
| tion for CeNET wire bound (sold separately). |
2. | When playing 3" (8cm) CDs, use an adapter that conforms to the recommended CD standards or the adapter |
| included with the | mark. Refer to the adapter instruction manual concerning operation and loading 3" |
| (8cm) CDs in the adapter. |
Caution
• | The unit may not operate when both CD | • Do not use address switch numbers “3” or “4”. |
| changers are set to the same address switch | Not used. |
| number. | | |
• | Never change the address switch during op- | 1 2 3 | 4 |
| eration. Doing so can cause malfunction or |
| breakdown. Do not change the address switch | | |
| forcibly, because this may also cause | | |
| malfunciton. | Address switch |
•The CeNET cable wiring must be less than
65.62ft (20m) in length.
5 CD MAGAZINE
unit cables or cords do not interfere with the opening or closing of the |
slide door. |
8 INSTALLATION
Prior to Installation
1.Decide on the installation place and direction.
∗ Before shipment from the factory, the levers are normally placed in the horizontal position.
2.Adjust the installation selector levers to the desired installation position.
●Adjustment of Installation Selector Lever on | ●Adjustment of Installation Selector Lever at the |
the Right Side | base |
The installation direction can be adjusted by using | The installation direction can be adjusted by insert- |
the sharp end of a screwdriver or ballpen to insert | ing the sharp end of a small screwdriver into the |
into the round hole. | square hole which can be seen from the adjustment |
| hole. |
9 TROUBLESHOOTING
| Symptom | Cause | Remedy |
| Loss of power | Bad connection. | Check connections. Connect the cable again. |
| Connection with | | |
| The length of the CeNET | Rewire the connection so that the length of cable is less than 65.62 ft |
| the source unit is |
| not recognized. | cable wiring is more than | (20m). |
| | 65.62 ft (20m). | |
| | | |
| | Address switch num- | When the 2 CD changers are connected, set the address switch so |
| | bers are the same. | that they do not have the same address number. Refer to the “Exam- |
| | | ple of address switch setting” in the section titled “IDENTIFICATION |
| | | OF PARTS”. |
| | | |
| Magazine cannot | Magazine inserted | Insert correctly. |
| be loaded. | wrongly. | |
| | | |
| | A magazine is already | Eject the magazine and insert the other. |
| | in the player. | |
3. | ● The pickup, the heart of a player, is built in deep behind the door. Do not leave this door open for extended |
| periods to prevent dust adhering to the pickup. |
| ● When the inside of the car is very cold and the player is used soon after switching on the heater, dew may |
| form on the disc or optical parts of the player and proper playback may not be possible. If dew forms on the |
| disc, wipe it with a soft cloth. If dew forms on the optical parts of the player do not use the player for about |
| one hour and the condensation will disappear naturally to allow normal operation. |
4. | While the system is in play, do not plug or unplug the cables as this will cause damage. |
5. | Do not expose the magazine to direct sunlight, the car heater or other sources of strong heat. Replace the |
| CD magazine (CAA-122) with a new one if bent or otherwise damaged. |
Caution
•ONLY use the magazine included with the CDC1255z or RDC1255z. For additional magazines, pur- chase Clarion Model CAA122. Do not attempt to insert different style magazine into the CD changer even if they fit into the magazine opening. Inserting other manufacturers’ magazines or previous Clarion 6 Pack style magazines into the CDC1255z or RDC1255z will cause damage to the mecha- nism and void the warranty.
3 CAUTIONS ON HANDLING CDs
Inserting the CD
1.Load the discs with the labels facing upwards, as shown in the diagram.
2.When the discs are loaded into the magazine the disc lever will move upwards in the direction of
the arrow.
Disc Lever (White color)
Magazine
Label Side
One in each slot (6 pieces)
Notes:
•Use commercially sold adapters for 3” (8cm) CDs.
•Up to two CD adapters can be used in one maga- zine. 3 or more adapters in a magazine may cause a trouble in ejection.
•Some adapter may be transformed by heat.
Inserting the Magazine
1.Slide the sliding door to the right until it is com- pletely latched on.
Sliding door
2.Load the magazine in the direction as shown in the diagram. Push it in until it is locked into the unit.
3.After the magazine has been loaded, close the sliding door.
| | H | | | | | | | | |
| 45 | | | | | | V | 45 | H |
| | | | | | | |
| V | | | | | | | | |
| | | | | | | | | |
H: Horizontal | | 45: Slope | | | | V: Vertical |
| | | | ° | | | | ° | | 15° |
| | | | 15 | | | | |
| | | ° | | | 30 | | |
| | | | | | | |
° | | ° | 15 | | | | | | | |
30 | | 45 | | | | | | | | |
° | | | | | | | | | | |
15 | | | | | | | | | | |
H | 45 | | | H | | 45 | | | H | 45 |
V H | | | V H | | | V H |
| | | | | | |
Right Side | Base | Right Side | Base | Right Side | Base |
| | |
Set the position of the installation | Set the position of the installation | Set the position of the installation |
selector levers on the right side | selector levers on the right side | selector levers on the right side |
| Distorted magazine. | Buy New Magazine CAA-122. |
| | |
“No Disc” sign | There is no CD in the | After inserting a CD into the magazine, reload into the CD changer. |
appears when | magazine. | |
searching for | | |
discs. | | |
| | |
Noise, skipping | The installation selec- | Set the installation selector levers to the same position on both sides. |
| tor levers are set to dif- | |
| ferent positions on both | |
| sides. | |
| | |
| The unit installation di- | Set the unit installation direction and the installation selector lever |
| rection and the instal- | positions to match each other. When installed at an angle, change the |
| lation selector lever po- | installation selector lever to a position (H, 45, V) not prone to noise or |
| sitions do not match. | sound loss. |
| | |
| Disc bent or badly | Compare with another disc. If bad, discard the damaged disc. |
| damaged. | |
| | |
| Disc is very dirty. | Clean the disc. |
| | |
Mechanism does | Mechanical error. | 1. Referring to section “INSTALLATION”, check the three angle of in- |
not function. | | stallation selector levers are properly set. If not, set them at the |
| | proper position for the angle of installation. |
| | 2. Check whether the CD magazine can be ejected by pressing the |
| | CD magazine eject button, then insert a new CD magazine. |
Use only compact discs bearing the
mark.
Do not play heart-shaped, octagonal, or other specially shaped compact discs.
Extracting the CD
Pull the disc lever in the direction of the arrow and a part of the disc will emerge from the magazine. Hold
Extracting the Magazine
1.Open the sliding door and depress the eject but- ton.
and at the base of the unit to “H”. and at the base of the unit to “45”. and at the base of the unit to “V”. |
lf the same phenomenon still occurs after checking the above, or it is impossible to remove the magazine, please consult your local dealer.
Handling
●New discs may have some roughness around the edge.The set may not work or the sound may skip if such discs are used. Use a ball-point pen, etc., to remove roughness from the edge of the disc.
Ball-point pen
Roughness
● Never stick labels on the surface of the compact |
●Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These may get caught in the internal mechanism and damage the disc.
Storage
●Do not expose compact discs to direct sunlight or any heat source.
●Do not expose compact discs to excess humidity or dust.
●Do not expose compact discs to direct heat from heaters.
Cleaning
carefully the edge of the disc and pull it out.
Pull
Note:
When taking out the CD do not let your fingers touch the signal side of the CD.
2. Remove the magazine when it has been ejected.
Caution
•Adjust the installation selector levers into the correct locations. Setting the locations incorrectly or in varied positions will cause skipping.
•Do not move the installation selector levers while the unit is in use. This will cause damage to the mechanism and the disc.
Installation Procedure
| 1. Use the double seamed hexagonal bolts to fix the | For your convinience, identification marks are put |
| lead clamp and installation bracket to the unit (on | beside holes on the unit and the brackets. That is, |
| both sides) in the desired direction fo installation. | holes with the “RH/LH” marks are to be used for |
| Example | horizontal, “RV/LV” for vertical installation and “RT/ |
| LT” for suspending installation. |
| |
10 SPECIFICATONS
Frequency Response | : 5Hz~20kHz(±1dB) |
Signal-to-Noise Ratio | : 105dB(1kHz)IHF•A |
Wow and Flutter | : Below measurement limits |
Power Supply | : DC14.4V (10.8~15.6V) negative ground |
Current Consumption | : Less than 1A |
Unit Weight | : 7.28lb. (3.3kg) |
Dimensions | : 10.6"(Width) × 3.9" (Height) × 6.7"(Depth) |
| [268mm(W) × 98mm(H) × 170(D)mm] |
disc or mark the surface with a pencil or pen. |
● Never play a compact disc with any cellophane |
tape or other glue on it or with peeling off marks. |
If you try to play such a compact disc, you may |
not be able to get it back out of the CD player or it |
may damage the CD player. |
● Always handle the compact disc by the edges. |
Never touch the surface. |
●To remove fingermarks and dust, use a soft cloth and wipe in a straight line from the center of the compact disc to the circumference.
●Do not use any solvents, such as commercially available cleaners, anti-static spray or thinner to clean compact discs.
●After using special compact disc cleaner, let the compact disc dry off well before playing it.
3. Close the sliding door.
∗ For horizontal or suspending installation, use |
the attached installation screw to fix the lead |
clamp. |
(Vertical Position) |
∗Due to improvements, the design and these specifications may be modified without prior notice.
Clarion Co.,Ltd.
All right Reserved. Copyright © 1998:Clarion Co., Ltd.
