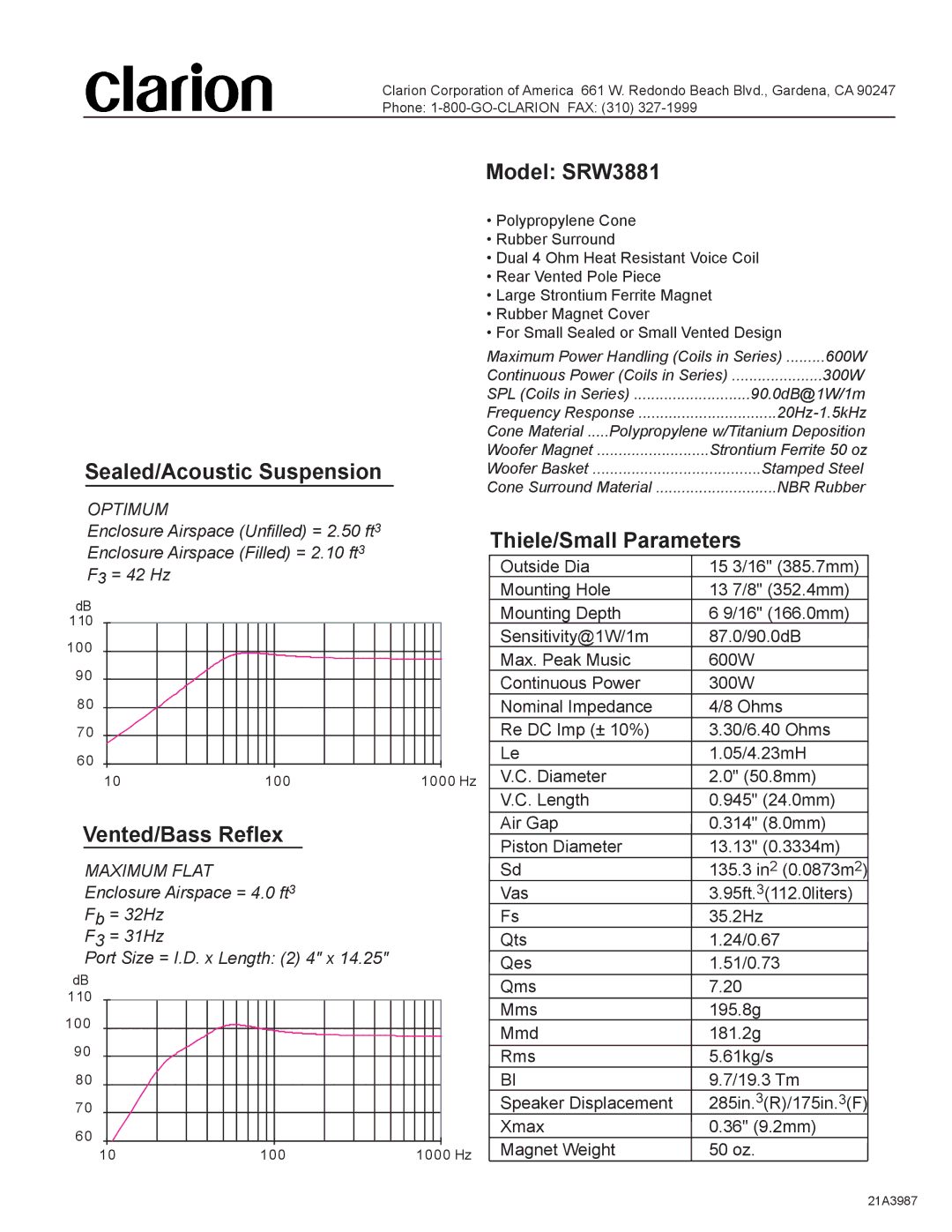

Sealed/Acoustic Suspension

Clarion Corporation of America 661 W. Redondo Beach Blvd., Gardena, CA 90247 Phone: 1-800-GO-CLARION FAX: (310) 327-1999

Sealed/Acoustic Suspension

OPTIMUM

Enclosure Airspace (Unfilled) = 2.50 ft3

Enclosure Airspace (Filled) = 2.10 ft3

F3 = 42 Hz

dB





110





100





90





80





70





60





10

100

1000 Hz

Vented/Bass Reflex

MAXIMUM FLAT



Enclosure

3



Airspace = 4.0 ft



F

b

= 32Hz





F

= 31Hz





3





Port Size = I.D. x Length: (2) 4" x 14.25"



dB









110









100









90









80









70









60

10

100

1000 Hz



Model: SRW3881

Polypropylene Cone

Rubber Surround

Dual 4 Ohm Heat Resistant Voice Coil

Rear Vented Pole Piece

Large Strontium Ferrite Magnet

Rubber Magnet Cover

For Small Sealed or Small Vented Design

Maximum Power Handling (Coils in Series)

.........600W

Continuous Power (Coils in Series)

.....................

300W

SPL (Coils in Series)

90.0dB@1W/1m

Frequency Response

20Hz-1.5kHz

Cone Material .....Polypropylene w/Titanium Deposition

Woofer Magnet

Strontium Ferrite 50 oz

Woofer Basket

Stamped Steel

Cone Surround Material

NBR Rubber

Thiele/Small Parameters

Outside Dia

15 3/16" (385.7mm)

Mounting Hole

13 7/8" (352.4mm)



Mounting Depth

6 9/16" (166.0mm)



Sensitivity@1W/1m

87.0/90.0dB



Max. Peak Music

600W



Continuous Power

300W

Nominal Impedance

4/8 Ohms





Re DC Imp (± 10%)

3.30/6.40 Ohms





Le

1.05/4.23mH





V.C. Diameter

2.0" (50.8mm)





V.C. Length

0.945" (24.0mm)





Air Gap

0.314" (8.0mm)





Piston Diameter

13.13" (0.3334m)





Sd

135.3 in2 (0.0873m2)





Vas

3.95ft.3(112.0liters)





Fs

35.2Hz

Qts

1.24/0.67







Qes

1.51/0.73







Qms

7.20







Mms

195.8g





Mmd

181.2g

Rms

5.61kg/s





BI

9.7/19.3 Tm

Speaker Displacement

285in.3(R)/175in.3(F)





Xmax

0.36" (9.2mm)





Magnet Weight

50 oz.





21A3987

Page 1
Image 1
Clarion manual Sealed/Acoustic Suspension, Vented/Bass Reflex, Model SRW3881, Thiele/Small Parameters
