Clarion Sales Corporation 661 W. Redondo Beach Blvd., Gardena, CA 90247 Phone: 1-800-GO-CLARION FAX: (310) 327-1999

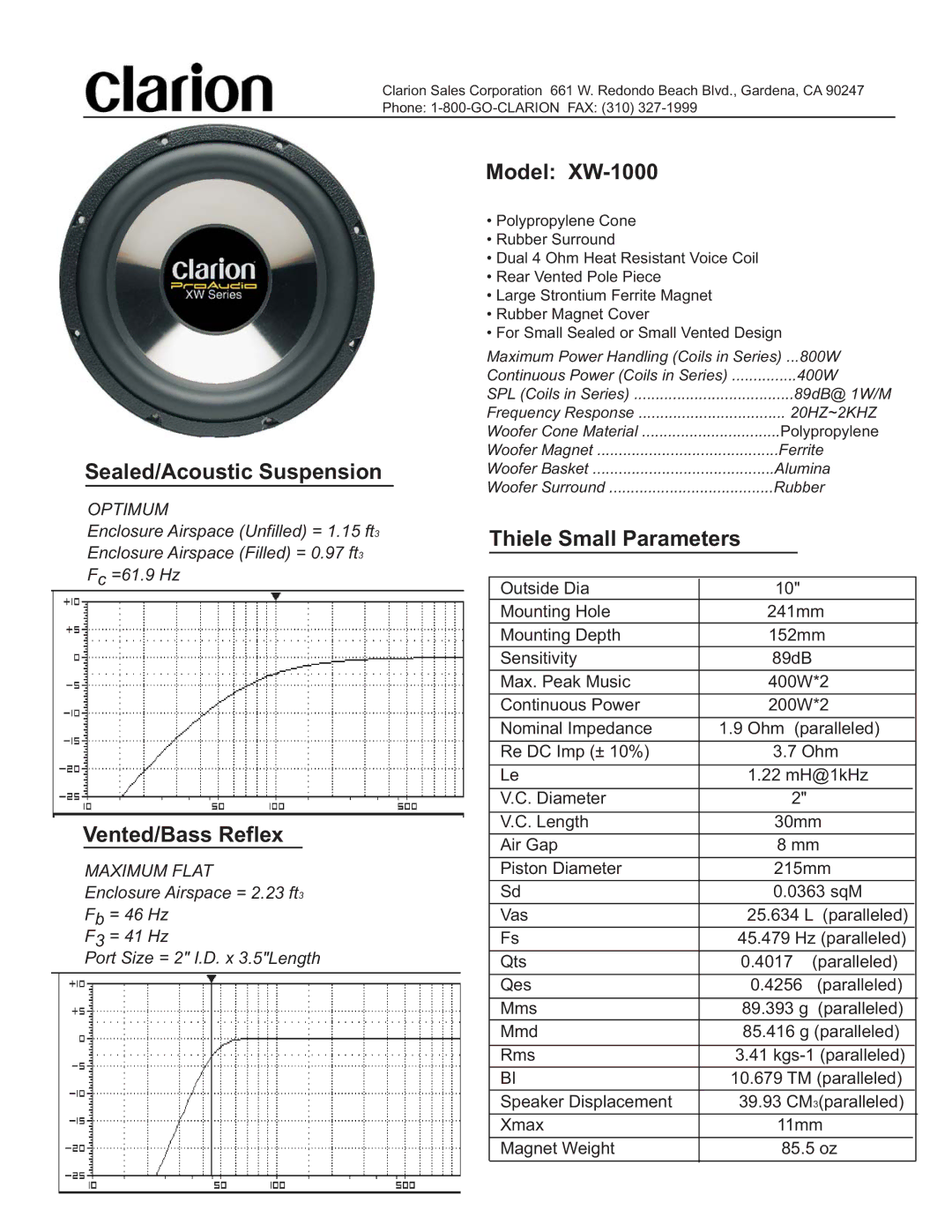

Model: XW-1000

Sealed/Acoustic Suspension

Polypropylene Cone

Rubber Surround

Dual 4 Ohm Heat Resistant Voice Coil

Rear Vented Pole Piece

Large Strontium Ferrite Magnet

Rubber Magnet Cover

For Small Sealed or Small Vented Design

Maximum Power Handling (Coils in Series) ...800W

Continuous Power (Coils in Series)

...............400W

SPL (Coils in Series)

89dB@ 1W/M

Frequency Response

20HZ~2KHZ

Woofer Cone Material

Polypropylene

Woofer Magnet

Ferrite

Woofer Basket

Alumina

Woofer Surround

Rubber

OPTIMUM

Enclosure Airspace (Unfilled) = 1.15 ft3 Enclosure Airspace (Filled) = 0.97 ft3 Fc =61.9 Hz

Vented/Bass Reflex

MAXIMUM FLAT

Enclosure Airspace = 2.23 ft3

F

b

= 46 Hz





F

3

= 41 Hz





Port Size = 2" I.D. x 3.5"Length

Thiele Small Parameters

Outside Dia

10"





Mounting Hole

241mm

Mounting Depth

152mm









Sensitivity

89dB











Max. Peak Music

400W*2







Continuous Power

200W*2







Nominal Impedance

1.9 Ohm (paralleled)







Re DC Imp (± 10%)

3.7 Ohm







Le

1.22 mH@1kHz









V.C. Diameter

2"











V.C. Length

30mm







Air Gap

8 mm







Piston Diameter

215mm







Sd

0.0363 sqM







Vas

25.634 L (paralleled)







Fs

45.479 Hz (paralleled)









Qts

0.4017

(paralleled)









Qes

0.4256

(paralleled)









Mms

89.393 g

(paralleled)







Mmd

85.416 g (paralleled)







Rms

3.41 kgs-1 (paralleled)







BI

10.679 TM (paralleled)







Speaker Displacement

39.93 CM3(paralleled)







Xmax

11mm







Magnet Weight

85.5 oz
