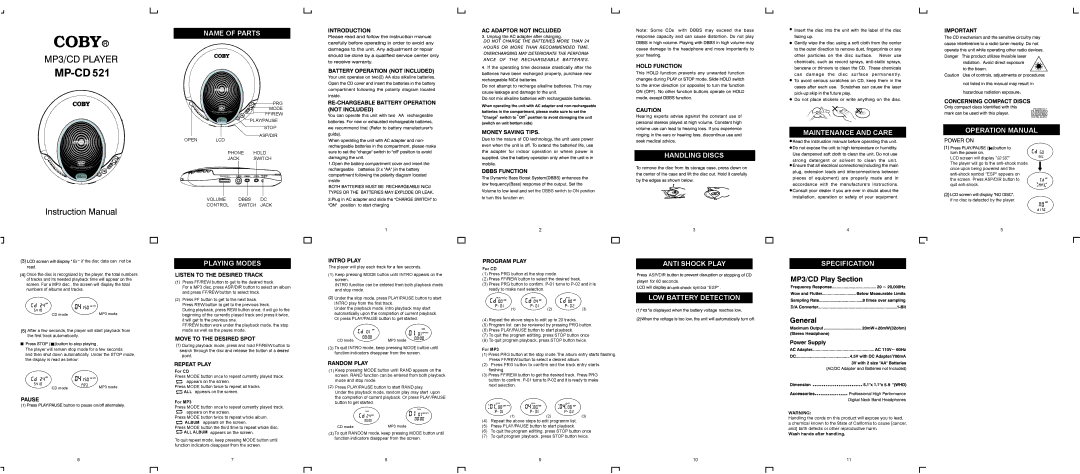

COBY electronic MP-CD521 operation manual

521

NAME OF PARTS

PRG

MODE

FF/REW

888888PLAY/PAUSE

OPEN LCD

STOP

ASP/DIR

MAINTENANCE AND CARE

OPERATION MANUAL

888888

if the disc data can not be read.

Once the disc is recognized by the player, the total numbers of tracks and its needed playback time will appear on the screen. For a MP3 disc , the screen will display the total numbers of albums and tracks.

	MP3
CD mode	MP3 mode

After a few seconds, the player will start playback from the first track automatically.

The player will remain stop mode for a few seconds

and then shut down automatically. Under the STOP mode, the display is read as below:

		MP3
CD mode	MP3	MP3 mode

6

PHONE HOLD

JACK SWITCH

VOLUME DBBS DC

CONTROL SWITCH JACK

PLAYING MODES

Press FF/REW button to get to the desired track.

For a MP3 disc, press ASP/DIR button to select an album and press FF/REW button to select track.

(2)Press FF button to get to the next track. Press REW button to get to the previous track.

During playback, press REW button once, it will go to the beginning of the currently played track and press it twice, it will get to the previous one.

FF/REW button work under the playback mode, the stop mode as well as the pause mode.

During playback mode, press and hold FF/REW button to search through the disc and release the button at a desired point.

For CD

Press MODE button once to repeat currently played track.

appears on the screen.

Press MODE button twice to repeat all tracks. ALL appears on the screen.

For MP3

Press MODE button once to repeat currently played track.

appears on the screen.

Press MODE button twice to repeat whole album.

ALBUM appears on the screen.

Press MODE button the third time to repeat whole disc.

ALL ALBUM appears on the screen.

To quit repeat mode, keep pressing MODE button until function indicators disappear from the screen.

7

1

The player will play each track for a few seconds.

(1)Keep pressing MODE button until INTRO appears on the screen.

INTRO function can be entered from both playback mode and stop mode.

Under the stop mode, press PLAY/PAUSE button to start INTRO play from the first track.

Under the playback mode, intro playback may start automatically upon the completion of current playback. Or press PLAY/PAUSE button to get started.

MP3

CD mode MP3 mode

(3)To quit INTRO mode, keep pressing MODE button until function indicators disappear from the screen.

(1)Keep pressing MODE button until RAND appears on the screen. RAND function can be entered from both playback mode and stop mode.

(2)Press PLAY/PAUSE button to start RAND play.

Under the playback mode, random play may start upon the completion of current playback. Or press PLAY/PAUSE button to get started.

RAND

	RAND
	MP3
CD mode	MP3 mode

(3)To quit RANDOM mode, keep pressing MODE button until function indicators disappear from the screen.

8

set the DBBS switch to ON position to turn this function on.

2

For CD

(1)Press PRG button at the stop mode.

(2)Press FF/REW button to select the desired track.

(3)Press PRG button to confirm. P-01 turns to P-02 and it is ready to make next selection.

PROGPROGPROG

(1) (2) 2 (3)

(4)Repeat the above steps to edit up to 20 tracks.

(5)Program list can be reviewed by pressing PRG button.

(6)Press PLAY/PAUSE button to start playback.

(7)To quit the program editting, press STOP button once

(8)To quit program playback, press STOP button twice.

For MP3

(1)Press PRG button at the stop mode.The album entry starts flashing. Press FF/REW button to select a desired album.

(2)Press PRG button to confirm and the track entry starts flashing.

(3)Press FF/REW button to get the desired track. Press PRG button to confirm. P-01 turns to P-02 and it is ready to make next selection.

PROG	PROG	PROG
	MP3

		2
(1)	(2)	(3)

(4)Repeat the above steps to edit programm list.

(5)Press PLAY/PAUSE button to start playback.

(6)To quit the program editting, press STOP button once

(7)To quit program playback, press STOP button twice.

9

HANDLING DISCS

3

ANTI SHOCK PLAY

ASP/DIR

for 60 seconds.

symbol "ESP" .

LOW BATTERY DETECTION

10

4

SPECIFICATION

WARNING:

Handling the cords on this product will expose you to lead, a chemical known to the State of California to cause [cancer, and] birth defects or other reproductive harm.

Wash hands after handling.

11

60

LCD screen will display "60 SEC"	sec
The player will go to the anti-shock mode
once upon being powered and the
anti-shock symbol "ESP" appears on
the screen. Press ASP/DIR button to
quit anti-shock.	M

if no disc is detected by the player.

5
