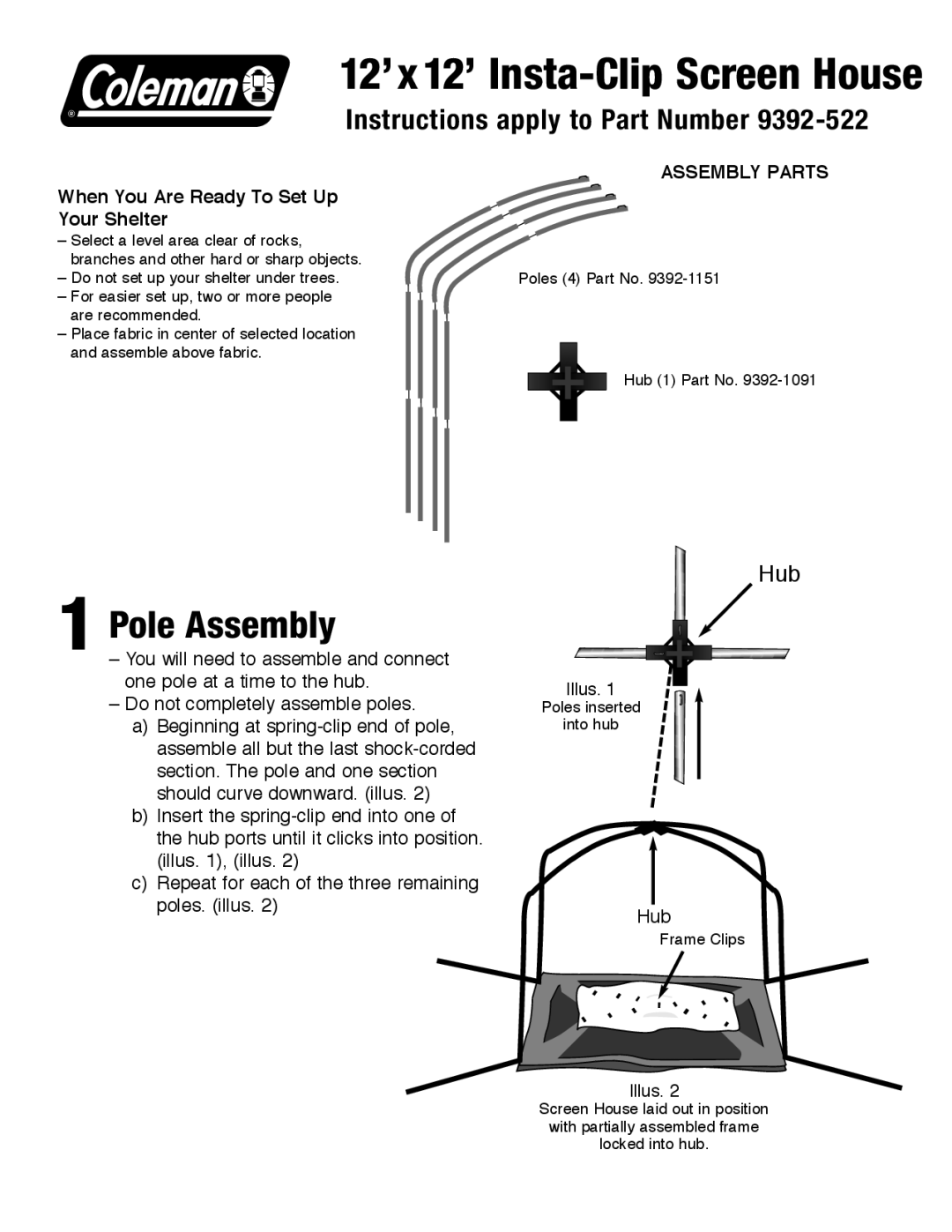

12’ x 12’ Insta-Clip Screen House

Instructions apply to Part Number 9392-522

ASSEMBLY PARTS

When You Are Ready To Set Up

Your Shelter

Select a level area clear of rocks, branches and other hard or sharp objects.

– Do not set up your shelter under trees.

Poles (4) Part No. 9392-1151

For easier set up, two or more people are recommended.

Place fabric in center of selected location and assemble above fabric.

Hub (1) Part No. 9392-1091

1 Pole Assembly

You will need to assemble and connect one pole at a time to the hub.

Do not completely assemble poles.

a)Beginning at spring-clip end of pole, assemble all but the last shock-corded section. The pole and one section should curve downward. (illus. 2)

b)Insert the spring-clip end into one of the hub ports until it clicks into position. (illus. 1), (illus. 2)

c)Repeat for each of the three remaining poles. (illus. 2)

Hub

Illus. 1

Poles inserted

into hub

Hub

Frame Clips

Illus. 2

Screen House laid out in position with partially assembled frame locked into hub.

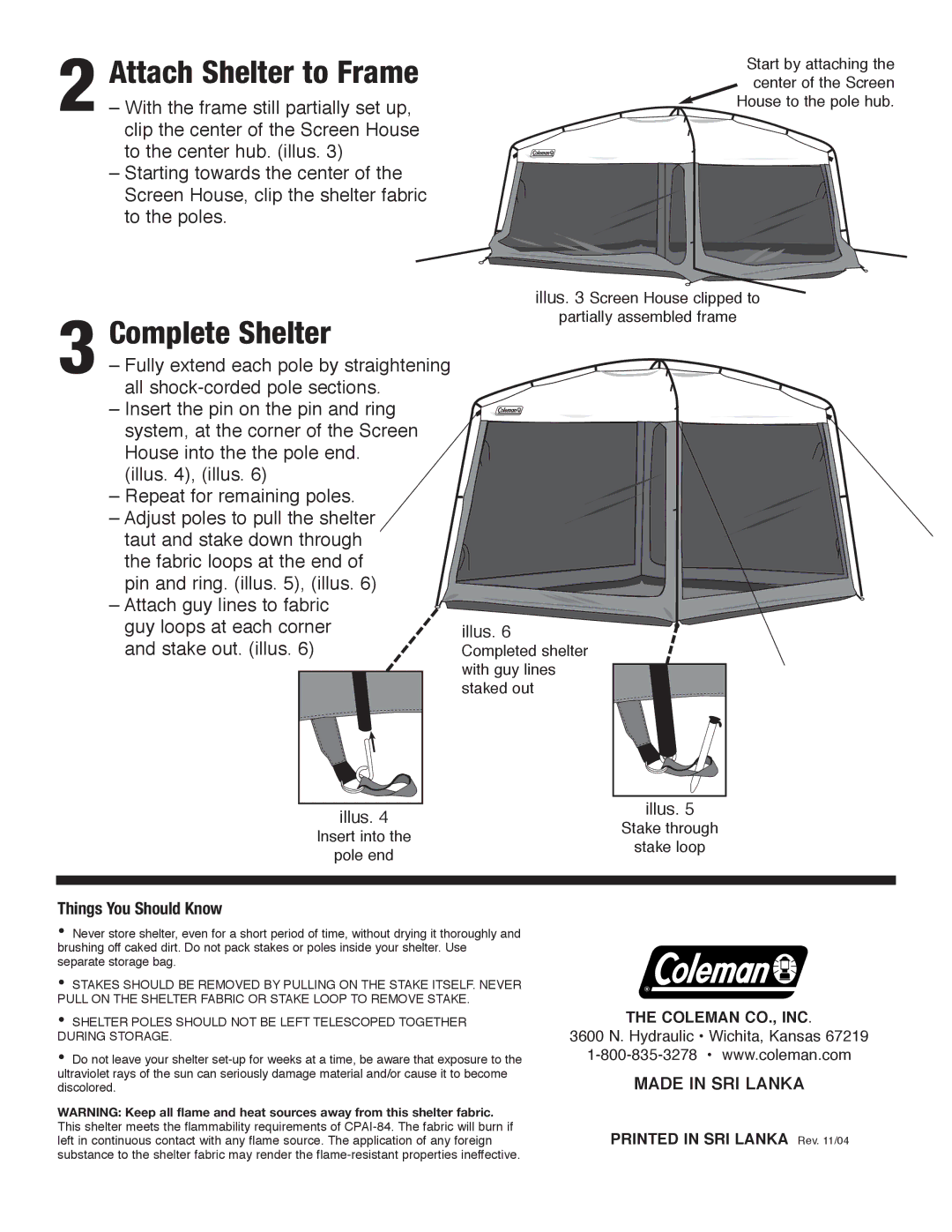

Page 1
Image 1
Coleman 9392-522 manual 12’ x 12’ Insta-Clip Screen House
