D E S C R I P T I O N

A return to simplicity, elegance and minimalism...Slender lines of unbroken light set in an architectural enviroment are what of essence of Straight and Narrow is all about. Accommodates most architectural lighting design applications.

Features:

-Straight and Narrow embodies Neo-Ray's critical attention to architectural detail as well as lighting performance

-Continous and unbroken light

-Extruded aluminum housing offers precise in-line appearance

-Runs are provided to nearest foot

Catalog #

Project

Comments

Prepared by

Type

Date

S P E C I F I C AT I O N F E AT U R E S

C o n s t r u c t i o n

E l e c t r i c a l

M o u n t i n g

Extruded aluminum housing. Nominal 3', 4', 6' or 8' illuminated sections.

S h i e l d i n g

Trimless, snap-in white high transmission acrylic diffuser. Snap-in high performance semi-specular or white parabolic louver.

120, 277 or universal voltage, electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

F i n i s h

Durable, low gloss, white powder coated acrylic. Optional custom finish.

Fixture mounts directly to existing structure over a standard electrical box (not supplied by Neo-Ray). Blocking provided by others.

ADA Compliant

Side mounted electrical box and blocking by others

5/8”

Side mounted electrical box and blocking by others

5-5/8”

2-3/8”

22DIW 1x1 with high performance louver (S91)

4”

5/8”





2-3/8”





22DW with satin white lens (S92)

Straight & Narrow

22DIW

22DW

T5 or T5HO

WA L L

DIRECT- INDIRECT (DIW)

DIRECT (DW)

A D A

O R D E R I N G I N F O R M AT I O N

C O M P L I A N T

SAMPLE NUMBER: S22DIW/1X1T5HO/4/1EB - SI - EM - GLR - S91

22

W

Series

22=Straight & Narrow

Light Output

DI=Direct-Indirect

D=Direct













Mounting



Lamp Type

W=Wall



T5









T5HO













Number of Lamps (not included)

1x1=1 Lamp up/ 1 Lamp down (DIW only)

1=1 Lamp (DW only)

Length

Voltage

Ballast1

3=3 ft

1=120V

EB=Electronic

4=4 ft

2=277V

Ballast (standard)

6=6 ft

U=Universal

DB=Dimming

8=8 ft



Ballast

XX=Continuous Runs

Switching Options

Emergency

Fusing

SI=Single Switching

EM= Emergency

GLR

DU=Dual Switching

Pack (consult

GMF

(DIW only)

factory)1



Louver Options

S91=High performance louver S91W=White louver S91P=High performance louver with acrylic overlay S91WP=White louver with acrylic overlay

S92=Satin white lens

1 Required voltage information

For some electronic, dimming and EM battery pack ballast combinations fixture has space limitation (consult factory)

Not all option combination available, please consult your COOPER Lighting representative for additional information

www.cooperlighting.com

NOTE: Specifications and dimensions are subject to change without notice.

ADN070412

Page 1
Image 1

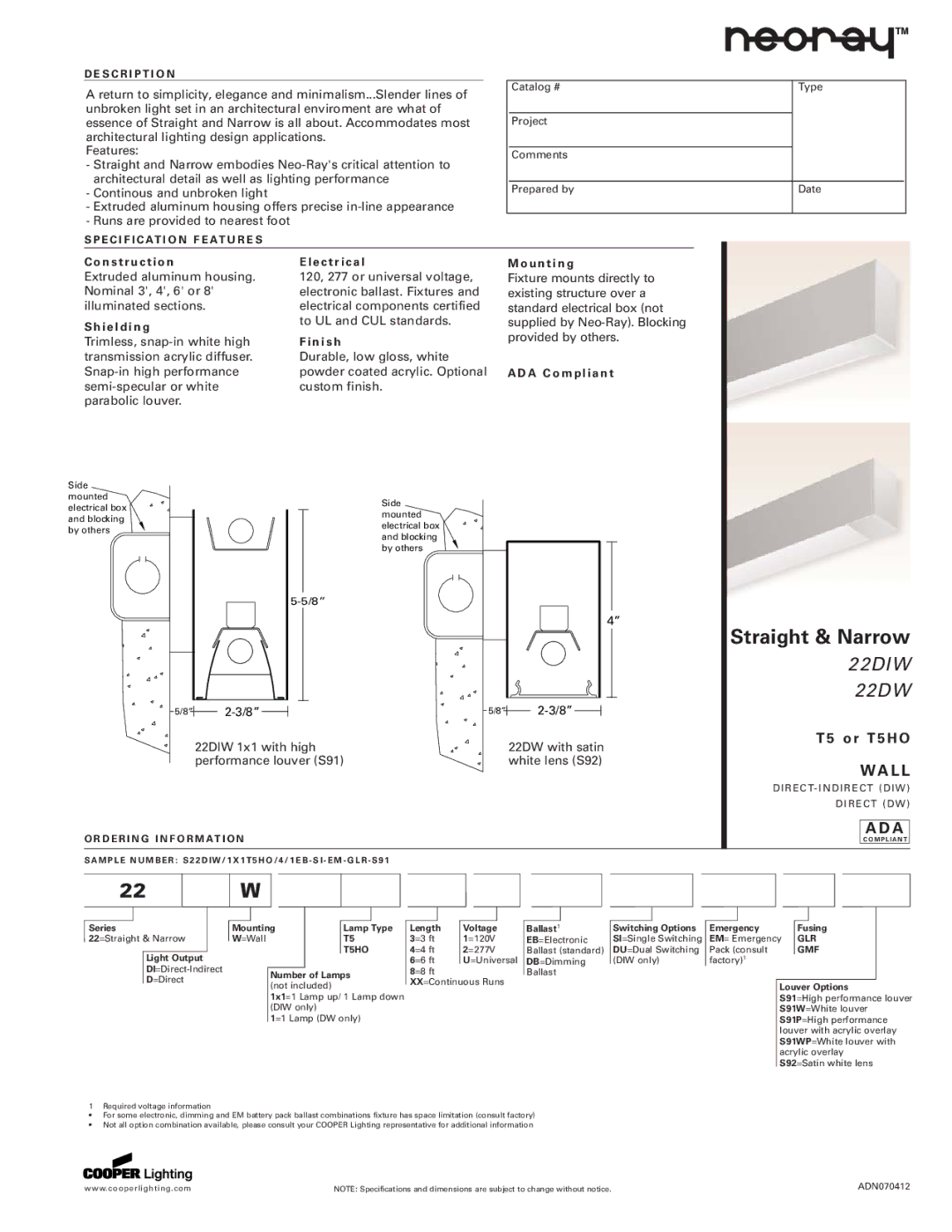

Cooper Lighting 22DW, 22DIW specifications S C R I P T I O N, E C I F I C At I O N F E At U R E S
