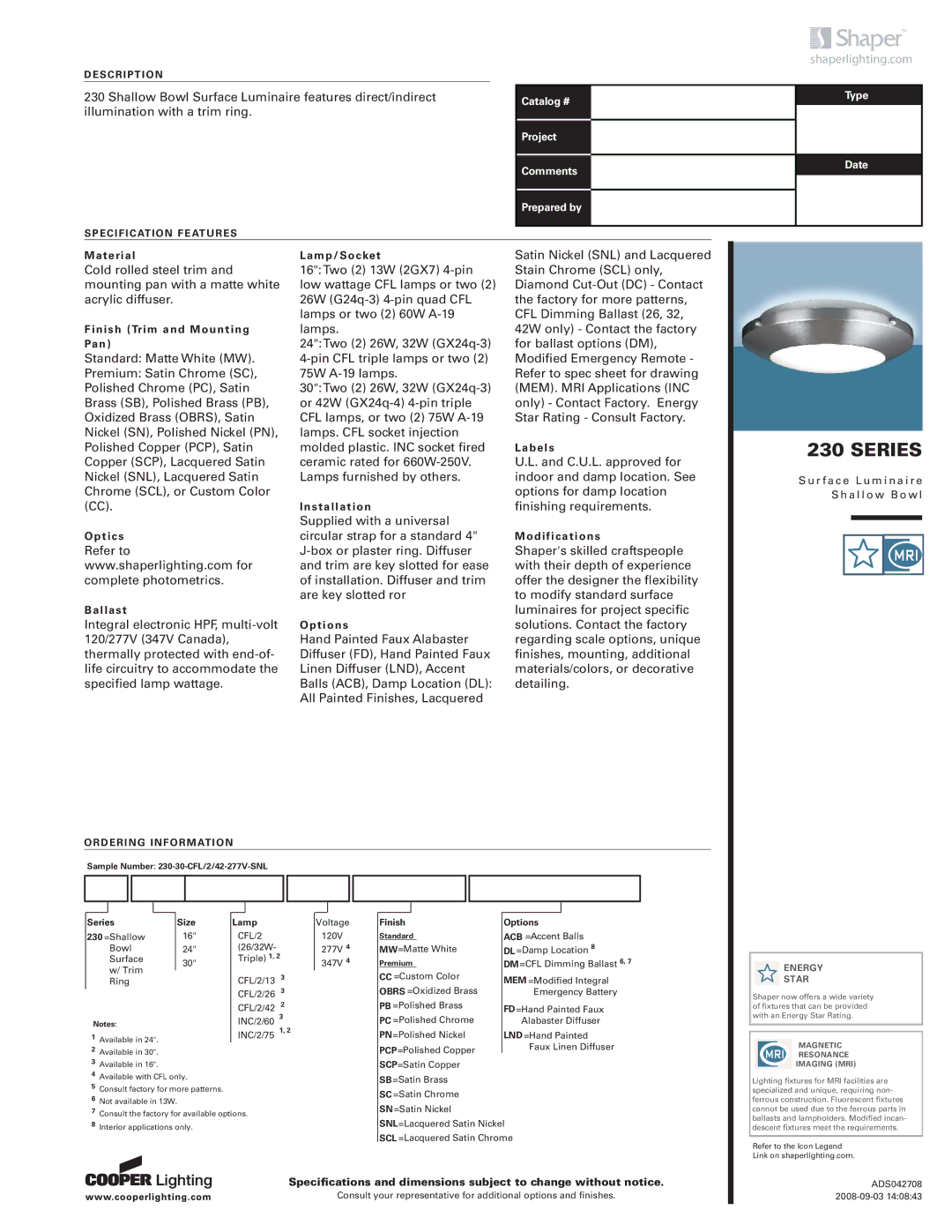

Cooper Lighting 230 specifications Series

DESCRIPTION

230 Shallow Bowl Surface Luminaire features direct/indirect illumination with a trim ring.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Cold rolled steel trim and mounting pan with a matte white acrylic diffuser.

Finish (Trim and Mounting Pan)

Standard: Matte White (MW).

Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Oxidized Brass (OBRS), Satin Nickel (SN), Polished Nickel (PN), Polished Copper (PCP), Satin Copper (SCP), Lacquered Satin Nickel (SNL), Lacquered Satin Chrome (SCL), or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

16":Two (2) 13W (2GX7) 4-pin low wattage CFL lamps or two (2) 26W (G24q-3) 4-pin quad CFL lamps or two (2) 60W A-19 lamps.

24":Two (2) 26W, 32W (GX24q-3) 4-pin CFL triple lamps or two (2) 75W A-19 lamps.

30":Two (2) 26W, 32W (GX24q-3) or 42W (GX24q-4) 4-pin triple CFL lamps, or two (2) 75W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring. Diffuser and trim are key slotted for ease of installation. Diffuser and trim are key slotted ror

Options

Hand Painted Faux Alabaster

Diffuser (FD), Hand Painted Faux

Linen Diffuser (LND), Accent

Balls (ACB), Damp Location (DL):

All Painted Finishes, Lacquered

Satin Nickel (SNL) and Lacquered Stain Chrome (SCL) only, Diamond Cut-Out (DC) - Contact the factory for more patterns, CFL Dimming Ballast (26, 32,

42W only) - Contact the factory for ballast options (DM), Modified Emergency Remote - Refer to spec sheet for drawing (MEM). MRI Applications (INC only) - Contact Factory. Energy Star Rating - Consult Factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

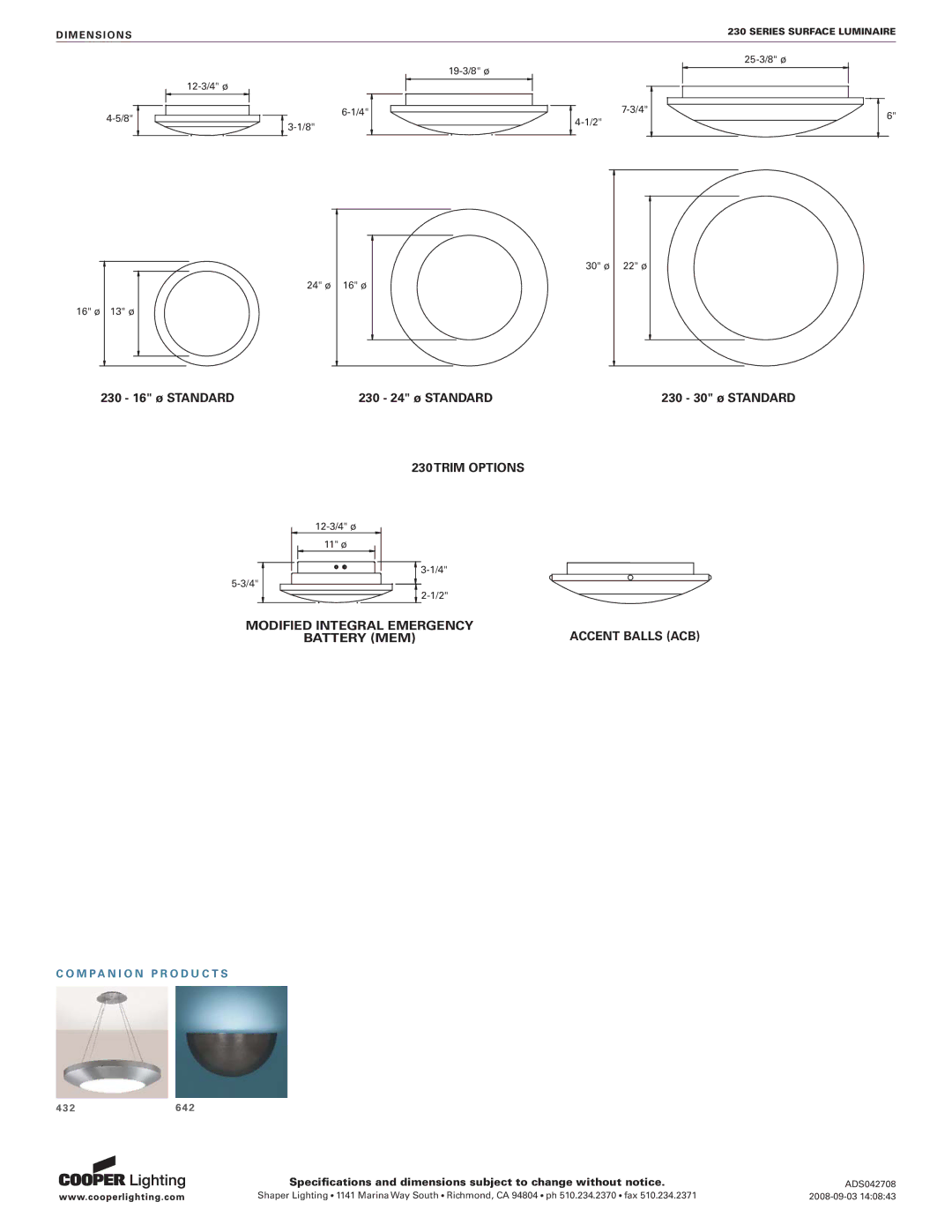

230 SERIES

S u r f a c e L u m i n a i r e S h a l l o w B o w l

ORDERING INFORMATION

Sample Number: 230-30-CFL/2/42-277V-SNL

Series		Size	Lamp
230 =Shallow		16"	CFL/2
	Bowl	24"	(26/32W-
	Surface	30"	Triple) 1, 2
	w/ Trim
			CFL/2/13	3
	Ring
			CFL/2/26	3
			CFL/2/42	2
Notes:			INC/2/60 3
1 Available in 24".			INC/2/75 1, 2

2Available in 30".

3Available in 16".

4Available with CFL only.

5Consult factory for more patterns.

6Not available in 13W.

7Consult the factory for available options.

8Interior applications only.

Voltage 120V 277V 4 347V 4

Finish
	Options
Standard	ACB =Accent Balls
MW=Matte White	DL =Damp Location 8
Premium	DM=CFL Dimming Ballast 6, 7
CC =Custom Color
	MEM =Modified Integral
OBRS =Oxidized Brass
	Emergency Battery
PB =Polished Brass	FD=Hand Painted Faux
PC =Polished Chrome
	Alabaster Diffuser
PN=Polished Nickel	LND =Hand Painted
PCP=Polished Copper	Faux Linen Diffuser
SCP=Satin Copper

SB =Satin Brass

SC =Satin Chrome

SN =Satin Nickel

SNL=Lacquered Satin Nickel

SCL =Lacquered Satin Chrome

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
