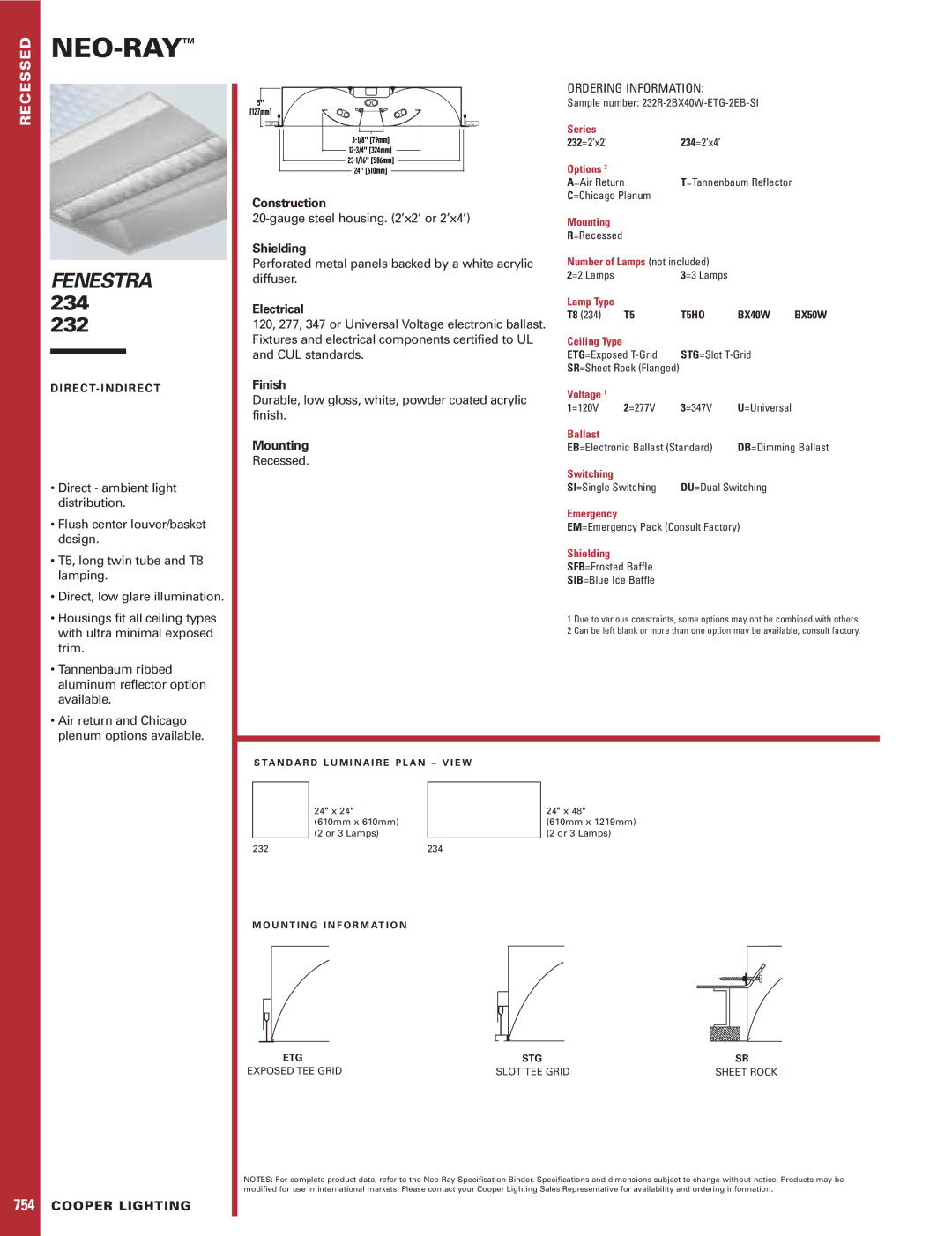

RECESSED |
|
|
FENESTRA 234 232
5"
[127mm]
24" [610mm]
Construction
Shielding
Perforated metal panels backed by a white acrylic diffuser.
Electrical
120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.
ORDERING INFORMATION:
Sample number:
Series
232=2’x2’234=2’x4’
Options 2
A=Air ReturnT=Tannenbaum Reflector C=Chicago Plenum
Mounting
R=Recessed
Number of Lamps (not included) |
|
| ||
2=2 Lamps |
| 3=3 Lamps |
|
|
Lamp Type |
|
|
|
|
T8 (234) | T5 | T5HO | BX40W | BX50W |
Ceiling Type |
|
|
|
|
ETG=Exposed | STG=Slot |
| ||
SR=Sheet Rock (Flanged) |
|
|
| |
D I R E C T- I N D I R E C T
•Direct - ambient light distribution.
•Flush center louver/basket design.
•T5, long twin tube and T8 lamping.
•Direct, low glare illumination.
•Housings fit all ceiling types with ultra minimal exposed trim.
•Tannenbaum ribbed aluminum reflector option available.
•Air return and Chicago plenum options available.
Finish
Durable, low gloss, white, powder coated acrylic finish.
Mounting
Recessed.
Voltage 1 |
|
|
|
1=120V | 2=277V | 3=347V | U=Universal |
Ballast |
|
|
|
EB=Electronic Ballast (Standard) | DB=Dimming Ballast | ||
Switching |
|
|
|
SI=Single Switching | DU=Dual Switching | ||
Emergency
EM=Emergency Pack (Consult Factory)
Shielding
SFB=Frosted Baffle
SIB=Blue Ice Baffle
1 Due to various constraints, some options may not be combined with others. 2 Can be left blank or more than one option may be available, consult factory.
754 COOPER LIGHTING
S T A N D A R D L U M I N A I R E P L A N – V I E W
| 24" x 24" |
|
| 24" x 48" |
| (610mm x 610mm) |
|
| (610mm x 1219mm) |
| (2 or 3 Lamps) |
|
| (2 or 3 Lamps) |
232 |
| 234 |
| |
M O U N T I N G I N F O R M AT I O N
ETG | STG | SR |
EXPOSED TEE GRID | SLOT TEE GRID | SHEET ROCK |
NOTES: For complete product data, refer to the
