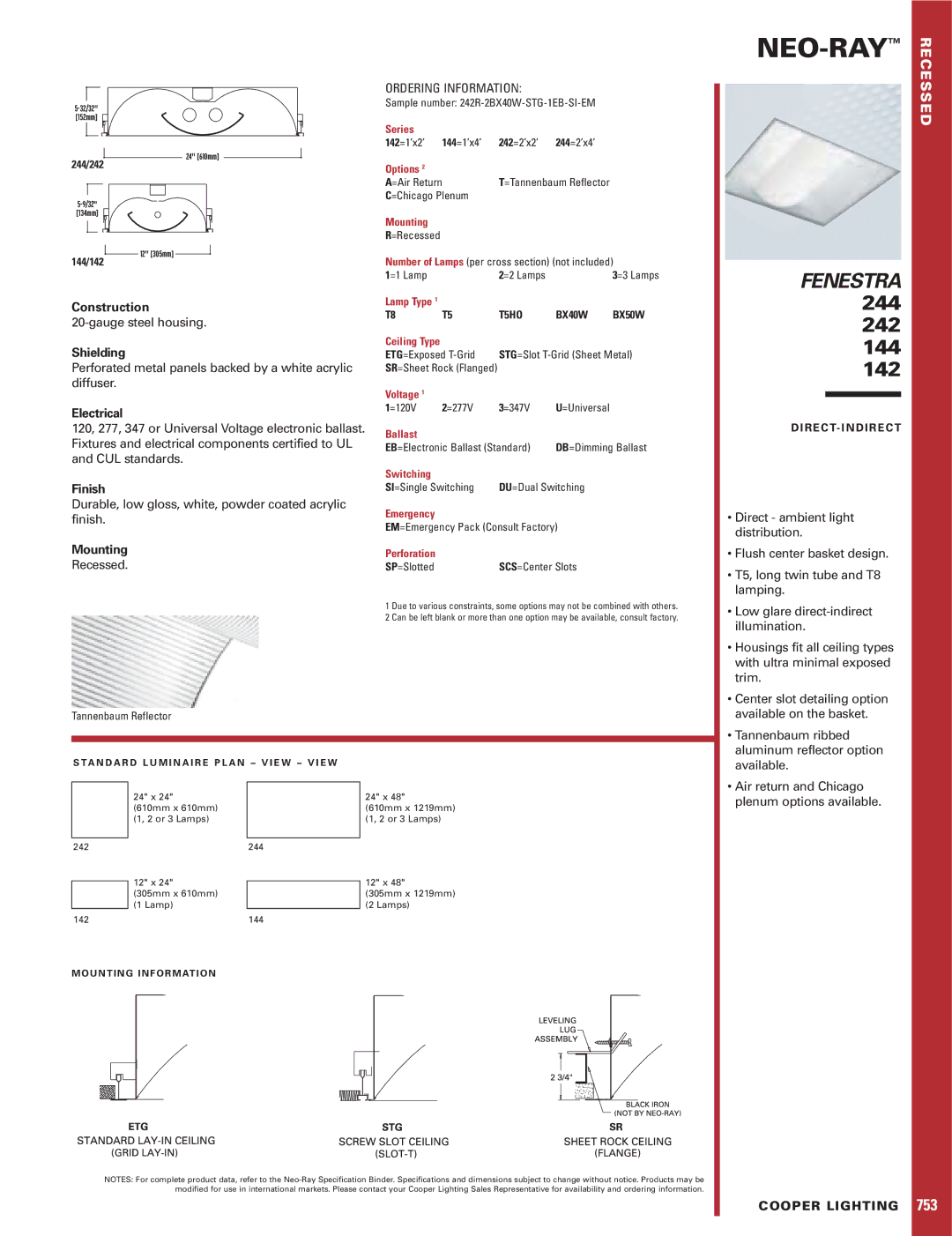

Image 1
Construction

5-32/32" [152mm]

24" [610mm]

244/242

5-9/32" [134mm]

12" [305mm]

144/142

Construction

20-gauge steel housing.

Shielding

Perforated metal panels backed by a white acrylic diffuser.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Recessed.

ORDERING INFORMATION:

Sample number: 242R-2BX40W-STG-1EB-SI-EM

Series

142=1’x2’ 144=1’x4’ 242=2’x2’ 244=2’x4’

Options 2

A=Air ReturnT=Tannenbaum Reflector C=Chicago Plenum

Mounting

R=Recessed

Number of Lamps (per cross section) (not included)

1=1 Lamp



2=2 Lamps



3=3 Lamps

Lamp Type 1









T8

T5

T5HO

BX40W

BX50W

Ceiling Type

ETG=Exposed T-Grid STG=Slot T-Grid (Sheet Metal) SR=Sheet Rock (Flanged)

Voltage 1







1=120V

2=277V

3=347V

U=Universal

Ballast







EB=Electronic Ballast (Standard)

DB=Dimming Ballast

Switching







SI=Single Switching

DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Perforation



SP=Slotted

SCS=Center Slots

NEO-RAY

RECESSED



FENESTRA 244 242 144 142

D I R E C T- I N D I R E C T

• Direct - ambient light

distribution.

• Flush center basket design.

• T5, long twin tube and T8

lamping.

1 Due to various constraints, some options may not be combined with others. 2 Can be left blank or more than one option may be available, consult factory.

Tannenbaum Reflector

• Low glare direct-indirect

illumination.

• Housings fit all ceiling types

with ultra minimal exposed

trim.

• Center slot detailing option

available on the basket.

• Tannenbaum ribbed

aluminum reflector option

S T A N D A R D L U M I N A I R E P L A N – V I E W – V I E W



24" x 24"





(610mm x 610mm)





(1, 2 or 3 Lamps)









242

244



12" x 24"









(305mm x 610mm)





(1 Lamp)



142

144

24" x 48"

(610mm x 1219mm) (1, 2 or 3 Lamps)

12" x 48"

(305mm x 1219mm) (2 Lamps)

available.

• Air return and Chicago

plenum options available.

M O U N T I N G I N F O R M AT I O N

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
