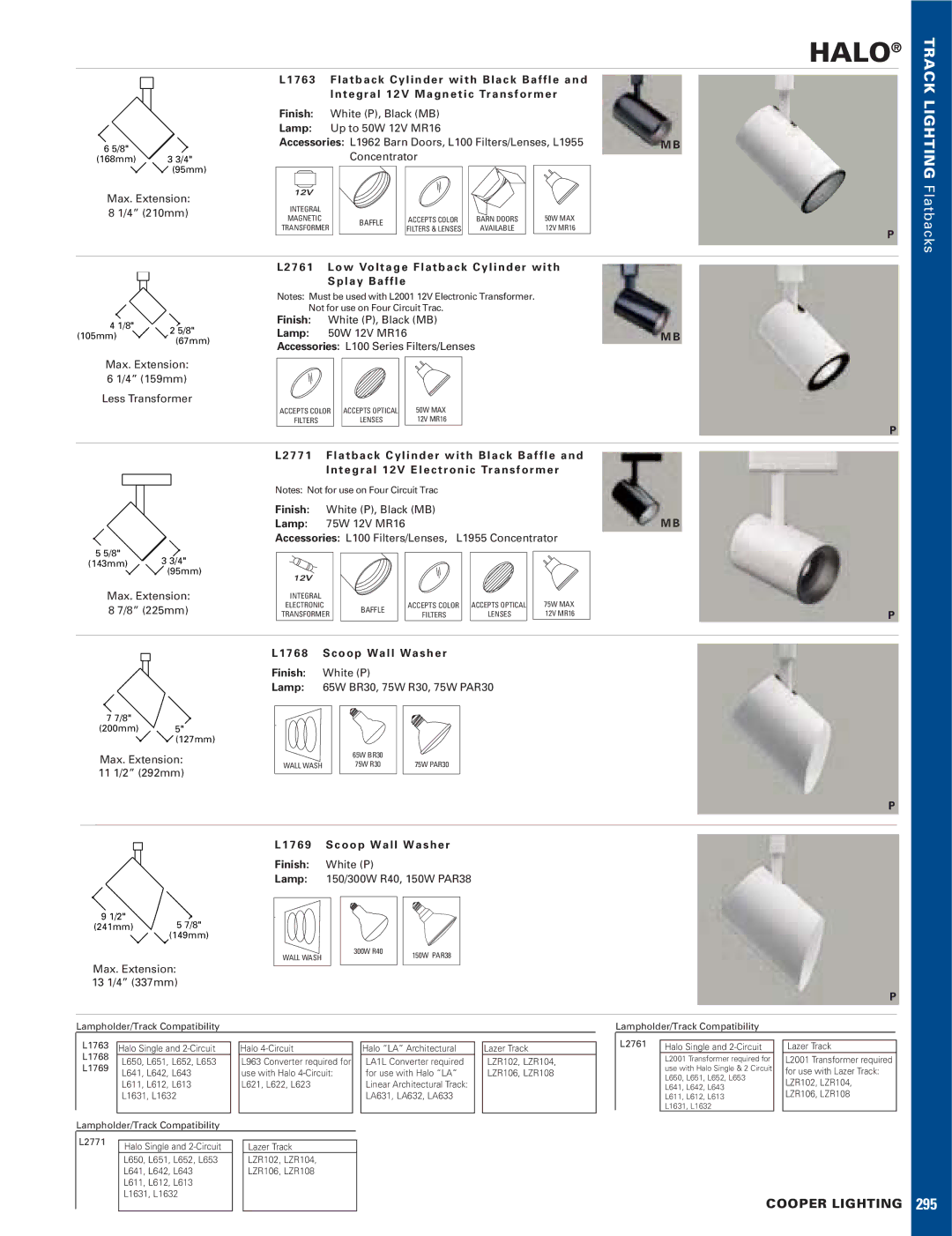

Halo, Track Lighting Flatbacks | Cooper Lighting 295 instruction

6 5/8"
(168mm)	3 3/4"

(95mm)

Max. Extension: 8 1/4” (210mm)

L 1 7 6 3 F l a t b a c k C y l i n d e r w i t h B l a c k B a f f l e a n d I n t e g r a l 1 2 V M a g n e t i c Tr a n s f o r m e r

Finish:	White (P), Black (MB)
Lamp:	Up to 50W 12V MR16
Accessories: L1962 Barn Doors, L100 Filters/Lenses, L1955					M B
	Concentrator
12V
INTEGRAL				50W MAX
MAGNETIC	BAFFLE	ACCEPTS COLOR	BARN DOORS	50W MAX
TRANSFORMER	BAFFLE	FILTERS & LENSES	AVAILABLE	12V MR16
TRANSFORMER		FILTERS & LENSES	AVAILABLE	12V MR16

HALO®

TRACK LIGHTING Flatbacks

4 1/8"

2 5/8"

(105mm)

(67mm)

Max. Extension: 6 1/4” (159mm)

Less Transformer

L 2 7 6 1 L o w Vo l t a g e F l a t b a c k C y l i n d e r w i t h

S p l a y B a f f l e

Notes: Must be used with L2001 12V Electronic Transformer.

Not for use on Four Circuit Trac.

Finish: White (P), Black (MB)

Lamp: 50W 12V MR16M B

Accessories: L100 Series Filters/Lenses

ACCEPTS COLOR	ACCEPTS OPTICAL	50W MAX
FILTERS	LENSES	12V MR16

5 5/8"

(143mm) 3 3/4" (95mm)

Max. Extension: 8 7/8” (225mm)

L 2 7 7 1 F l a t b a c k C y l i n d e r w i t h B l a c k B a f f l e a n d I n t e g r a l 1 2 V E l e c t r o n i c Tr a n s f o r m e r

Notes: Not for use on Four Circuit Trac

Finish:	White (P), Black (MB)
Lamp:	75W 12V MR16				M B
Accessories: L100 Filters/Lenses, L1955 Concentrator
12V
INTEGRAL				ACCEPTS OPTICAL	75W MAX
ELECTRONIC		BAFFLE	ACCEPTS COLOR	ACCEPTS OPTICAL	75W MAX
TRANSFORMER		BAFFLE	FILTERS	LENSES	12V MR16

		L 1 7 6 8	S c o o p W a l l W a s h e r
		Finish:	White (P)
		Lamp:	65W BR30, 75W R30, 75W PAR30
7 7/8"
(200mm)	5"
	(127mm)
Max. Extension:			65W BR30
Max. Extension:		WALL WASH	75W R30	75W PAR30
11 1/2” (292mm)		WALL WASH	75W R30	75W PAR30
11 1/2” (292mm)

L 1 7 6 9 S c o o p W a l l W a s h e r

Finish: White (P)

Lamp: 150/300W R40, 150W PAR38

9 1/2"	5 7/8"
(241mm)

(149mm)

WALL WASH

Max. Extension: 13 1/4” (337mm)

300W R40

150W PAR38

Lampholder/Track Compatibility

L1763
L1763	Halo Single and 2-Circuit	Halo 4-Circuit		Halo “LA” Architectural	Lazer Track
L1768	L650, L651, L652, L653	L963 Converter required for		LA1L Converter required	LZR102, LZR104,
L1769	L650, L651, L652, L653	L963 Converter required for		LA1L Converter required	LZR102, LZR104,
L1769	L641, L642, L643	use with Halo 4-Circuit:		for use with Halo “LA”	LZR106, LZR108
	L641, L642, L643	use with Halo 4-Circuit:		for use with Halo “LA”	LZR106, LZR108
	L611, L612, L613	L621, L622, L623		Linear Architectural Track:
	L1631, L1632			LA631, LA632, LA633


Lampholder/Track Compatibility
L2771
L2771	Halo Single and 2-Circuit		Lazer Track
	Halo Single and 2-Circuit		Lazer Track
	L650, L651, L652, L653		LZR102, LZR104,
	L641, L642, L643		LZR106, LZR108
	L611, L612, L613
	L1631, L1632

Lampholder/Track Compatibility

L2761	Halo Single and 2-Circuit	Lazer Track
	L2001 Transformer required for	L2001 Transformer required
	use with Halo Single & 2 Circuit	for use with Lazer Track:
	L650, L651, L652, L653	LZR102, LZR104,
	L641, L642, L643	LZR102, LZR104,
	L641, L642, L643	LZR106, LZR108
	L611, L612, L613	LZR106, LZR108
	L1631, L1632

COOPER LIGHTING 295
