COOPER LIGHTING - METALUX®

D I M E N S I O N SD E S C R I P T I O N

PARALUX

NOMINAL SIZE

A

B

1' x 4'

11-3/4" (298mm)

6-5/8" (168mm)

1' x 4' (OU)

11-3/4" (298mm)

8-1/4" (210mm)

2' x 2'

23-3/4" (603mm)

5-5/8" (143mm)

2' x 4'

23-3/4" (603mm)

5-5/8" (143mm)

20" x 24"

19-3/4" (502mm)

5-5/8" (143mm)

20" x 48"

19-3/4" (502mm)

5-5/8" (143mm)

O R D E R I N G I N F O R M AT I O N

The Paralux III series features recessed aesthetics and the latest in energy efficient technology. The luminaire incorporates a 3" precision cell louver into a nominal 5-1/2" deep para-contoured fixture housing. This combination creates a total high performance parabolic optical assembly for optimum performance. The Paralux III series offers balanced illumination with reduced glare, increased VCP’s and excellent shielding. The series is compatible with all of today’s popular ceiling systems. The Paralux III series is an excellent choice for commercial office spaces, schools, hospitals or retail merchandising areas.

2EP3GAX SERIES

1 ' x 4 ' , 2 ' x 2 ' , 2 ' x 4 ' , 2 0 " x 2 4 " o r 2 0 " x 4 8 " P a r a b o l i c

1 , 2 , 3 o r 4 L a m p P a r a b o l i c L o u v e r

III

S A M P L E N U M B E R : 2 E P 3 G A X - 3 3 2 S 3 6 I - 1 2 0 V - E B 8 1 - U

PA R A L U X I I I

R E C E S S E D S TAT I C O R

A I R S U P P LY T R O F F E R

HM=Hard

Metric

HR=Heat

Removal (1)

HRDO=Heat

Removal

Damper Open

HRDC=Heat

Removal

Damper Closed

Width

2'=2' width Blank=1' width or 20" width

EP=Paralux Louver

3=3" Louver Depth

Trim Type

G=Grid/Lay-in (Standard) G or T=Concealed T

G or T=Slot Grid (2)

F=Flange Trim

MZ=Modular Trim

Convertible Fixture (3) Standard G (Grid)

2048= 20" Width

x 48" Length

2024= 20" Width

x 24" Length

Number

of Lamps (4)

1, 2, 3 or 4 lamps

(Not included)

Wattage (Length) U6T8=31W T8 (24") 17=17W T8 (24") U15/8=31W T8 (24") BX40=40W Biax (24") 32=32W T8 (48")

Louver Color

S=Silver

W=White

Cell Configuration*

(See below for Louver Options)

Louver Finish

H=Semi-Specular/Haze (Gold only)

Voltage (5)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal

Voltage 120-277 (6)

Options

GL=Single Element Fuse GM=Double Element Fuse WTR=White Reveal

Lamps - for lamps installed, see lamp options table Flex - for flex installed, see flex ordering table Emergency - for EM installed, see EM options table



Options

Packaging



(See Options

U=Unit Pack



Section)

PAL=Job Pack,





out of carton

Ballast Type (5)

PALC=Job Pack,

Blank=Standard Magnetic

in carton

Ballast (Biax & 20W)



LE3=T12 Magnetic Energy Saving

EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start. High Ballast Factor >1.13. Total

No. of

Harmonic Distortion < 20%

Ballast



1, 2 or 3



ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB5 = T5 Biax Electronic Instant Start. Total Harmonic Distortion < 20%

No. of Ballast 1, 2 or 3

TEB5 =T5 Biax Electronic Instant Start. Total Harmonic Distortion < 10%

No. of Ballast

•

Equipped with energy



saving ballasts/complies



with federal energy



efficiency standards

•

Computer designed,



precision cell louver



technology

•

Field convertible feature

• Self locking spring loaded



cam latches/ T hinges

• Four auxiliary fixture end



suspension points provided

•

Interlocking tabs and



screws secure end plates

Type-Fixtures can be field converted to

T-option or vice-versa. Fixture also

adaptable with flanged or modular trims.

AX=Air Supply Floating Louver X=Blank Side/Floating Louver - Non-Air Supply (Omit A)

AVX=Air Supply Floating Louver with Directional Air Vane (Add V)

I=Semi-Specular/Haze (Low Iridescent) Standard (Silver Only)

MI=Specular/Mirrored (Low Iridescent) (Silver Only) P=Painted (White only)

1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

DLS=Digital Lighting System Dimming

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

• End plate grid-lock



feature (1)

•

Efficient air handling



options

• DLS Dimming Ballasts are



available

•

Floating louver/black reveal

• For information on flanged

P R O D U C T I N F O R M AT I O N F O R PA R A L U X I I I

Housing

Louver Cell

Number

Size

Configuration*

of Cells

1' x 2'

13, 14, 23,

24

3, 4, 6,

8











1' x 4'

16, 18, 26,

28

6, 8, 12,

16











2' x 2'

23, 33, 34,

44

6, 9, 12,

16

20" x 24"

23, 24, 33,

34

6, 8, 9, 12







20" x 48"

26, 36, 38

12, 18, 24







2' x 4'

26, 28, 36, 38, 46, 48

12, 16, 18, 24, 24, 32

*Example: 36= 3 rows of 6 (18 cells)

NOTES: (1) Integral end plate grid lock feature not available in heat removal. (2)An EQ Grid Clip is recommended for all 9/16" ceiling systems. (3)Convertibility applies to housing only, appropriate shielding media assemblies must be utilized. (4)Standard off-center ballast on 3-lamp fixtures. (5)Products also available in non-US voltages and frequencies for international markets. (6) Not available when specifying emergencies, voltage must be specific.

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.

fixture, including ceiling

opening size, see Technical

Section.

• UL/CUL Listed. Suitable for

damp locations.

COOPER LIGHTING

391

Page 1 Page 1
Page 1
Image 1

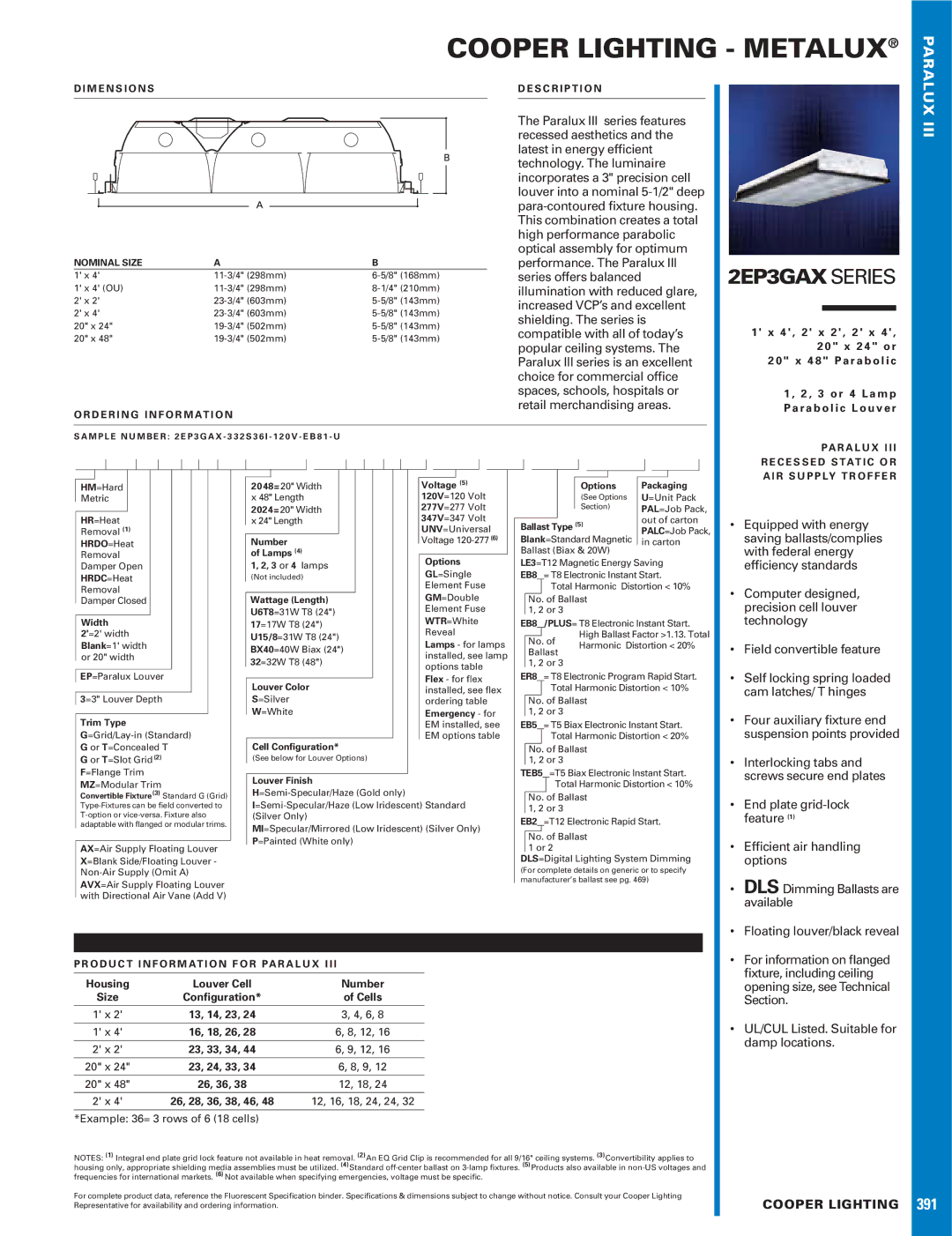

Cooper Lighting 2EP3GAX Series dimensions Paralux, Iii
