COOPER LIGHTING - METALUX®

DESCRIPTION

The F-Bay I5 series is an outstanding solution for high mounting height industrial or retail applications. The F-Bay I5 optic has been optimized to provide maximum performance from T5 lamps. Optional uplight component is provided to enable excellent ceiling uniformity. The I5's high lumen package allows the benefits of fluorescent to be applied at high mounting heights that were traditionally exclusive to H.I.D. The primary benefits include exceptional color rendering, high system efficacy, 95% lumen maintenance, long lamp life, instant on/instant re-strike, economical dimming, and uniform brightness control. Primary applications include "big box" retail, shopping malls, light industrial, school gymnasiums, etc.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

TypeDate

A ... Construction

Specification grade full body housing, end plates and socket tracks are die formed 20 gauge cold rolled steel in 4' or 8' lengths. The housing features an integral ballast channel that adds strength and provides numerous KOs for easy installation.

B ... Electrical

Class "P" ballasts are positively secured by mounting bolts. Rotorlock Bi-Pin lampholders and optional top ballast access plate enables service from above without disturbing the internal optics. Optional modular power receptacle meets UL2459 and NEC

410.73 and is UL/cUL rated for

make and break under load from

outside the luminaire to speed

maintenance. UL/cUL listed.

Suitable for damp locations.

D ... Downlight/Uplight Optics

Optical modules are fully enclosed inside housing to protect against damage. Die formed reflectors are faceted with two optical distribu- tions: medium and wide. Medium beam optical modules utilize 95% specular aluminum finish. Open downlight design optimizes performance with uplight slots available as an option for nominal 8% uplight component. An optional attractive thin blade white baffle adds longitudinal shielding. A clear or frosted white acrylic lens is also available. Optional heavy duty wireguard can be used with or without the lens or baffle. Latched retention of shielding optics (safety leader restraints) allow for easy access.

Mounting

The I5 series is suited for surface, suspension mounting with optional wire hook and chain set, stem or cable mounting. Top connector box mounting is also available. Narrow 11" housing allows mounting within 12" horizontally from the nearest edge of the sprinkler deflector.

Options

Integral Occupancy Sensor available and provides from 600 sq. ft. (MS) up to 1250 sq. ft. (MSO) of coverage at a maximum mounting height of 40'.

F-BAY

I5 Series

4' OR 8'

2 LAMPS

Retail/Light Industrial

T5 Linear Fluorescent Hi-Bay

Lighting System

A B C D

C ... Finish

Electrostatically applied baked white enamel finish is preceded by a multistage cleaning cycle, iron phosphate coating with rust inhibitor.

4-15/16" [126mm]

11" [280mm]

MOUNTING DATA LAMP CONFIGURATIONS

11/16" [18mm] K.O. (2)	Top Connector Box	4-15/16"
		[126mm]
for Cable or Pendant Mounting	Mounting
	Access Plate	4-5/8”
		[118mm]
		11" [280mm]

11"

[280mm]

	46" [1168mm]		11/16" [18mm] K.O.
11/16" [18mm] K.O.		Top Connector Box	for Cable or Pendant Mounting
for Cable or Pendant Mounting		Mounting
				Access Plate

11"

[280mm]

46" [1168mm]

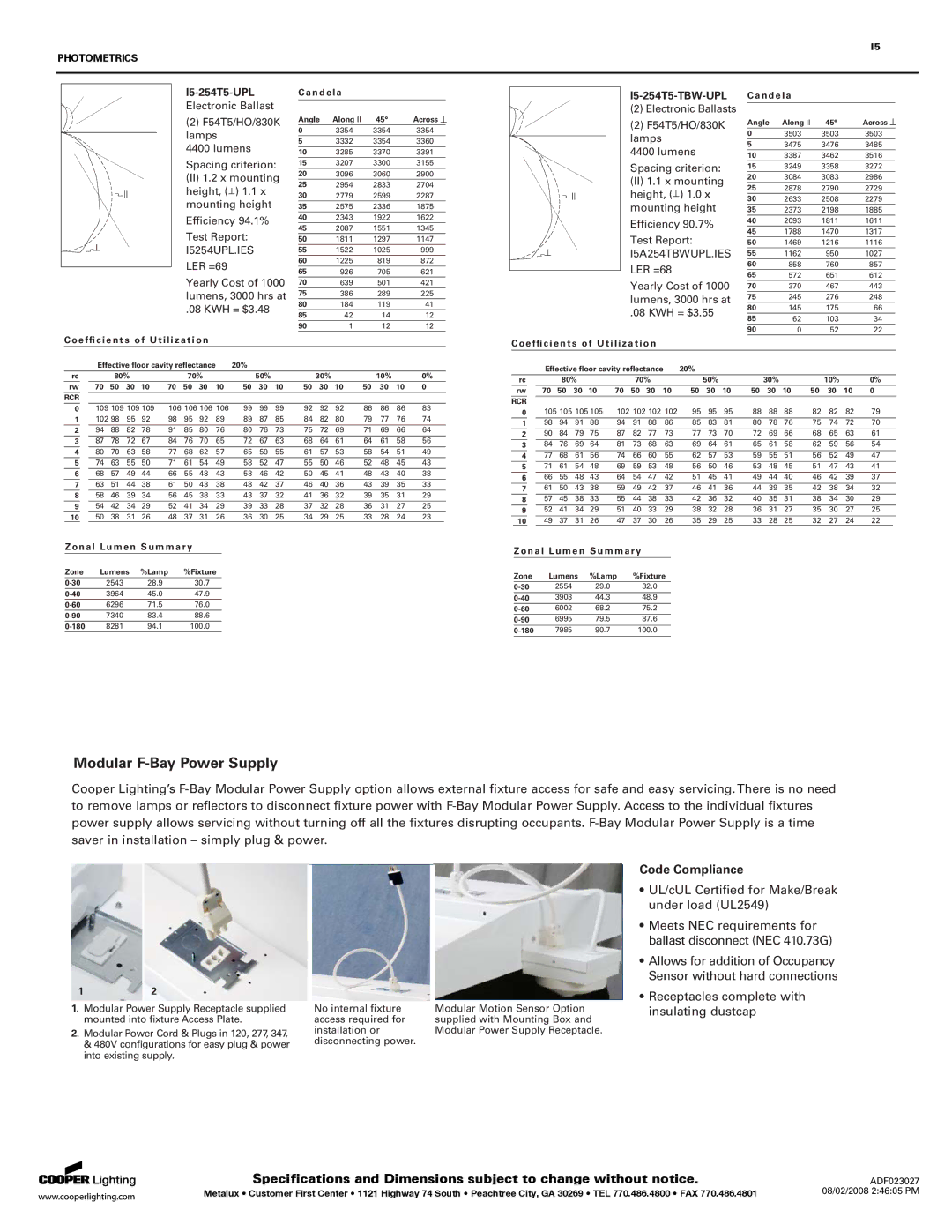

E N E R G Y D A T A

Input Watts:

EB Ballast & T5HO Lamps

254T5 = (117) 8T254T5 = (229)

Luminaire Efficacy Rating

LER =68

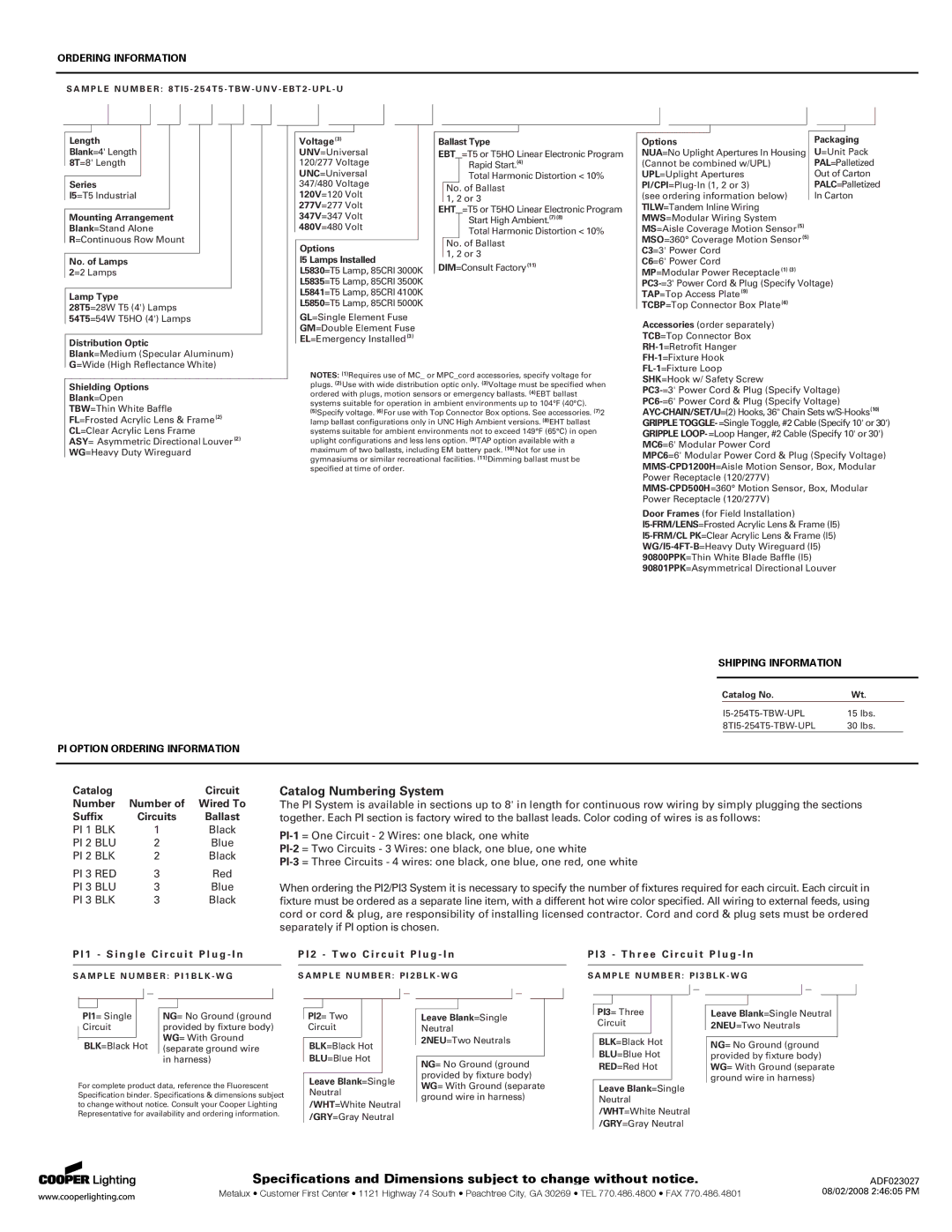

Catalog Number: I5-254T5-TBW-UPL

Yearly Cost of 1000 lumens, 3000 hrs at .08 KWH = $3.55

*Reference the lamp/ballast data in the Technical Section for specific lamp/ballast requirements

**Consult Pre Sales Technical Support.

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING

TO LOCAL, STATE OR FEDERAL LAWS

92" [2337mm]

2-3/4" [70mm]

Safe and convenient means of

disconnecting power

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.
