SHAPER

PENDANTS



6" ø

6" ø

6" ø



1-1/8"

1-1/8"

1-1/8"



24"

24"

24" 8-7/8"



6-1/4"

7-3/4"









28" ø

36" ø

42" ø









28" ø

36" ø















42" ø

404 SERIES

28" STANDARD











404 Direct/Indirect Pendant features a



36" STANDARD



low profile bowl and is available in





42"STANDARD

three diameters with multiple mounting







options.

Sample Number: 404-36-CFL/4/26-347V-OBRS-__

MATERIAL

Painted and plated cold rolled steel, solid brass or aluminum with a matte white acrylic bowl. Optional cold rolled steel, solid brass or stainless steel caming ring. Three stem is standard suspension. Minimum 18” (OA).

INSTALLATION

Supplied with either a circle strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided.

BALLAST

LAMP/SOCKET

28": Four (4) 13W (2GX7)

4-pin low wattage CFL lamps, 26W or 32W (GX24q-3) triple 4-pin CFL lamps or three (3) 75W A-19 lamps.

36": Four (4) or eight (8) 27W (2G11) high lumen CFL lamps, four (4) 42W (GX24q-4) 4-pin triple CFL lamps or six (6) 75W A-19 lamps.

42": Four (4) or eight (8) 39W (2G11) high lumen CFL lamps, four (4) or eight (8) 42W (GX24q-4)

4-pin triple CFL lamps or six (6) 100W A-19 lamps. CFL socket injection

SeriesSize

404=Luminous 28"

Shallow Bowl 36" 42"

Notes:

1.Available in 28".

2.Available in 36".

3.Available in 42".

4.Available with CFL only.

5.Not available in 13W.

6.Not available in 27W.

7.Consult the factory for available options.

8.Supplied by others.

9.Not available with 1SAC, SJWAC or SJCAC. Specify up to 45°.

Lamp

CFL/4/131 CFL/4/261 CFL/4/272 CFL/4/321 CFL/4/393 CFL/4/422, 3 CFL/8/272 CFL/8/393 CFL/8/423 INC/3/751 INC/6/752 INC/6/1003

Voltage

Finish

120V

MW (standard),

277V4

CC, OBRS, PB, PC PCP,

347V4

PN, SAL, SB, SC, SCL,



SCP, SN, SNL





Suspension

Options



Height

1S

2TRB

24"

1SAC

TR

Or Specify

QPB

CT



SJCAC

DL



SJWAC

DM 5, 6, 7



TPB

CFL



TSS2B

IEM2, 3



TSS3B

REM8



TSS4B

SCA9



2TBF

FB



Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

406 SERIES

406 Direct/Indirect Pendant features a luminous, perforated or solid upper dome with an indirect solid lower bowl and is available in two diameters with multiple mounting options.



6" ø





6" ø





1-1/8"





1-1/8"



24"



32"









11"

















4"







14"



10" ø









4-1/2"





















14-1/2" ø



28" ø 10" ø

36" ø 14-1/2" ø

















28" STANDARD















36" STANDARD



Sample Number: 406-LUD-36-CFL/4/26-347V-OBRS-__







Series

Bowl



Size

Lamp

Voltage

406=Direct/Indirect

LUD = Luminous Upper Dome



28”

CFL/2/261

120V

Dome

PUD = Perforated Upper Dome



36”

CFL/2/321

277V3



SUD = Solid Upper Dome





CFL/2/421

347V3









CFL/4/262



CFL/4/322

INC/2/751

INC/3/752

MATERIAL

Painted and plated cold rolled steel or aluminum. Optional Caming Trim, luminous dome. Matte white acrylic Luminous Upper Dome (LUD), Perforated Upper Dome with acrylic liner and caming trim (PUD) or Solid Upper Dome (SUD) that is supplied with a painted white interior, exterior as per finish specification. Three stem is standard suspension. Minimum 18” (OA).

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

LAMP/SOCKET 28": Two (2) 26W, 32W (GX24q-3) or 42W

(GX24q-4) 4-pin triple CFL lamps or two (2) 75W A-19 lamps.

36": Four (4) 26W, 32W (GX24q-3) or 4-pin triple CFL lamps or three (3) 75W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W- 250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

Notes:

1.Available in 28".

2.Available in 36".

3.Available with CFL only.

4.LUD and 28" SUD only.

5.28" SUD only.

6.LUD only.

7.Consult the factory for available options.

8.Supplied by others.

9.Specify up to 45°.

Finish

MW (standard), CC, OBRS, PB4, PC4, PCP5, PN4, SAL, SB, SC, SCL, SCP, SN,

SNL





Suspension

Options



Height

1S

DM7

24"

TSS2B

REM8

Or Specify

TSS3B

SCA9



TSS4B





CT6





DL





INSTALLATION Supplied with a universal circular strap for a standard 4" J-box or plaster ring. Safety cable provided.

958COOPER LIGHTING

Page 1

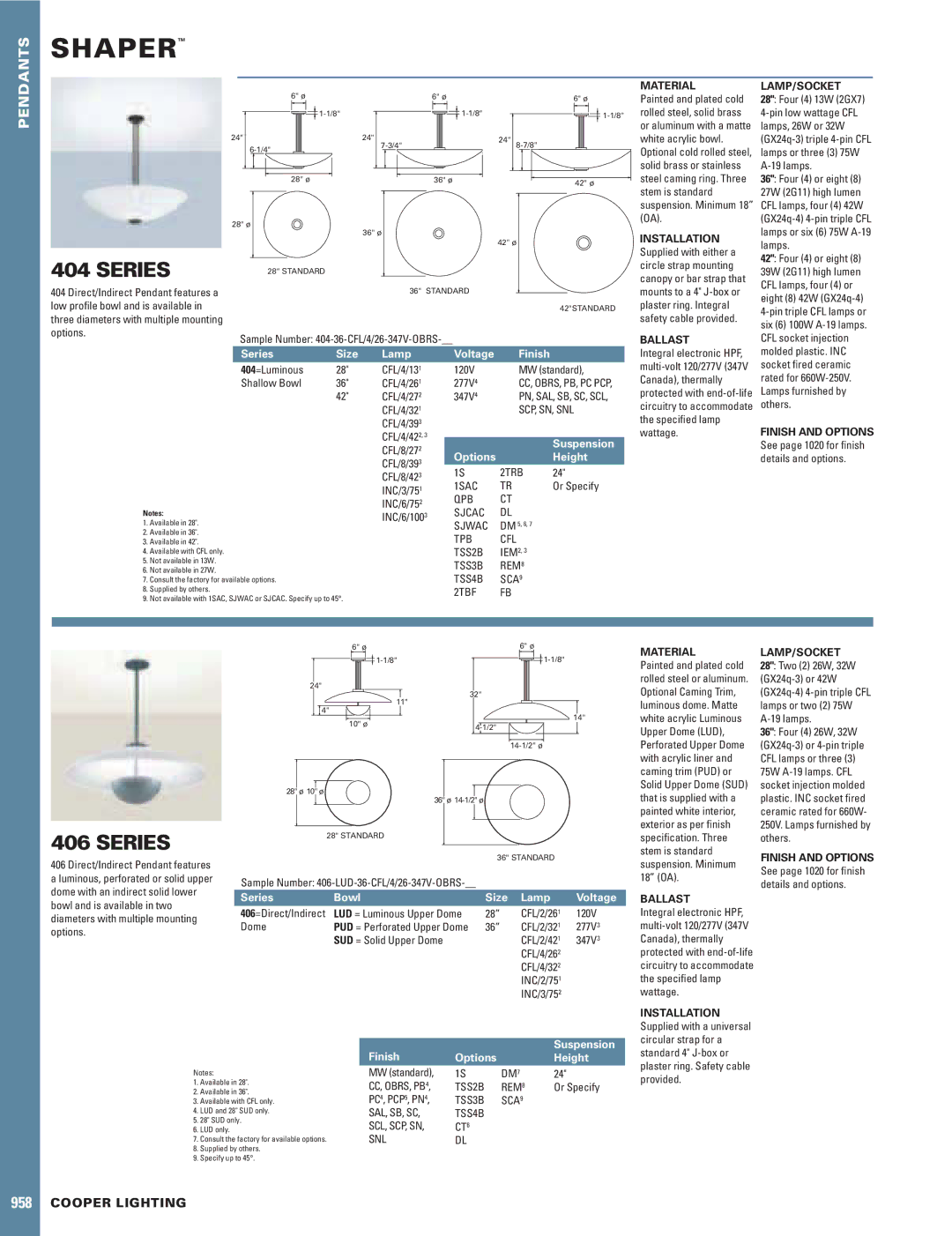

Image 1
