PENDANTS

SHAPER

482 SERIES

482 Luminous Cylinder features Accent Trim Bars and Finials and is a available in two diameters with multiple mounting options.



5" ø



5" ø





3/4"



3/4"



42"









24"



54"



















30"



10" ø STANDARD













12" ø STANDARD



Sample Number: 482-12-CFL/4/40-347V-OBRS-__



Sample Number: 482-12-CFL/4/40-347V-OBRS-__

Downlight



Series

Size

Lamp

Lamp

Voltage

482=

10"

CFL/4/391

HAL/1/1502

120V

Cylinder w/ Accent

12"

CFL/4/402



277V3

Trim Bars and Finials

12"-D

CFL/4/502



347V3





CFL/4/552









INC/6/751









INC/6/1002





MATERIAL

Solid brass or aluminum housing and decorative trim/finials. Matte acrylic luminous cylinder. Regressed aluminum louver frame and 1/2" x 1/2" cube cell louver. One 5/8" stem is standard suspension. Hang height (10" cylinder) of 42" (OA), minimum 34" (OA) and (12" cylinder) 54" (OA), minimum 40" (OA). Supplied with a swivel canopy which will accommodate up to 45° total adjustment.

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp

LAMP/SOCKET

10": Four (4) 39W (2G11) high lumen CFL lamps or six (6) 75W A-19 lamps.

12": Four (4) 40W, 50W or 55W (2G11) high lumen CFL lamps or six (6) 100W A-19 lamps.

12" Downlight (D): One

(1)150WPAR38H. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W- 250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.











Suspension

Notes:

Finish

Options

Height

1.

Available in 10".

MW (standard),

3S

SCA7

42'' (OA) - 10'' cyl.

2.

Available in 12".

CC, OBRS, PB,

DL

FC

54'' (OA) - 12'' cyl.

3.

Available with CFL only.

4.

Consult the factory for available options.

PC, PCP, SAL,

DM4

HTB

Or Specify

5.

Consult factory for alternative trim patterns, perf and color inserts.

SB, SC, SCL,

IEM2

HTB/V



6.

Supplied by others.



7.

Specify up to 45°.

SCP

PI5

TB









REM6

VTB



wattage.

INSTALLATION Two circuit wiring. Supplied with either a circle strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided.

22” STANDARD

494 SERIES







34” STANDARD











The 494 Direct/Indirect Pendant features









a luminous bowl with double ring trim









and is available in three diameters with









multiple mounting options.











Sample Number: 494-34-CFL/8/32-347V-SCL-22







Series

Size

Lamp

Voltage

Finish

Options

494 = Luminous Bowl

22"

CFL/4/131

120V

MW (standard),

1S

w/ Double Ring Trim

34"

CFL/4/261, 2

277V4

CC, OBRS, PB,

3S



40"

CFL/4/322

347V4

PC, PCP, PN,

QP





CFL/4/393



SAL, SB, SC,

SJCAC





CFL/4/423



SCL, SCP, SN,

SJWAC





CFL/8/262



SNL

SSS2B





CFL/8/27





SSS3B





CFL/8/322





SSS4B





CFL/8/423





TP

40” STANDARD

Suspension Height

24'' (OA) - 22'' dia. 32'' (OA) - 34'' dia. 38'' (OA) - 40'' dia. Or Specify

MATERIAL

Painted and plated cold rolled steel or natural aluminum. Matte white acrylic bowl. Single Stem Aircraft Cable (Standard): One 5/8" stem and three or four 3/32" cables with a standard hang height of 24" (OA), minimum 20" (OA).

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

INSTALLATION Supplied with either a circle strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided.

LAMP/SOCKET

22": Four (4) 13W (2GX7) 4-pin low wattage CFL lamps, 26W (GX24q-3)

4-pin quad CFL lamps or three (3) 75W A-19 lamps. 34": Four (4) or eight (8) 26W or 32W (GX24q-3)

4-pin triple CFL lamps or three (3) 100W A-19 lamps.

40": Four (4) or eight (8) 39W (2G11) high lumen CFL lamps, 42W (GX24q-

4)4-pin triple CFL lamps or six (6) 100W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

INC/3/751

DL

INC/3/1002

DM6

INC/6/1003

IEM2, 3



REM7

SCA8

FB

TB

Notes:

1.Available in 22".

2.Available in 34".

3.Available in 40".

4.Available with CFL only.

5.For polished finishes the bottom inside edge of the ring is satin to prevent upper ring reflections.

6.Consult the factory for available options.

7.Supplied by others.

8.Not available with 1SAC, SJWAC or SJCAC. Specify up to 45°.

966COOPER LIGHTING

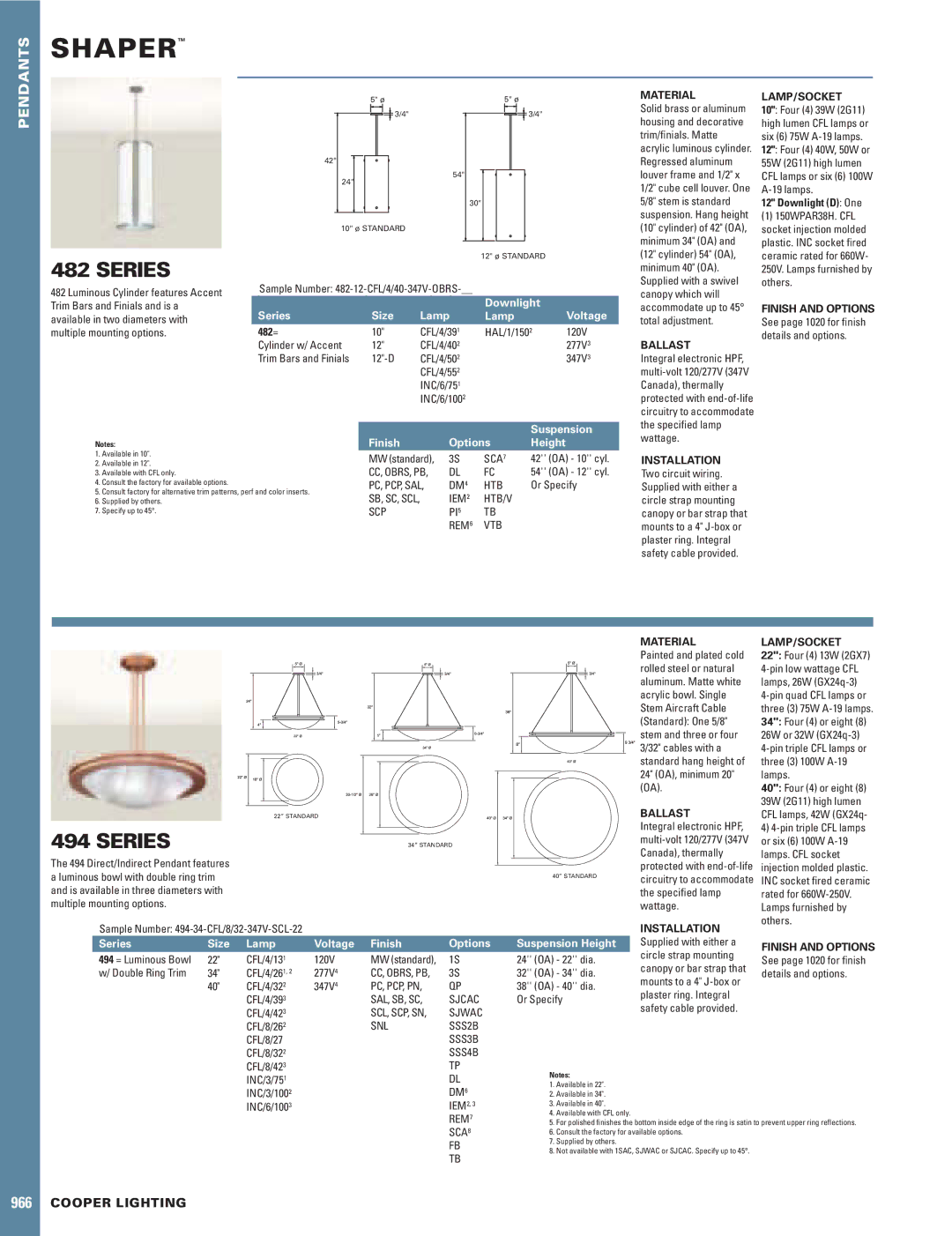

Page 1
