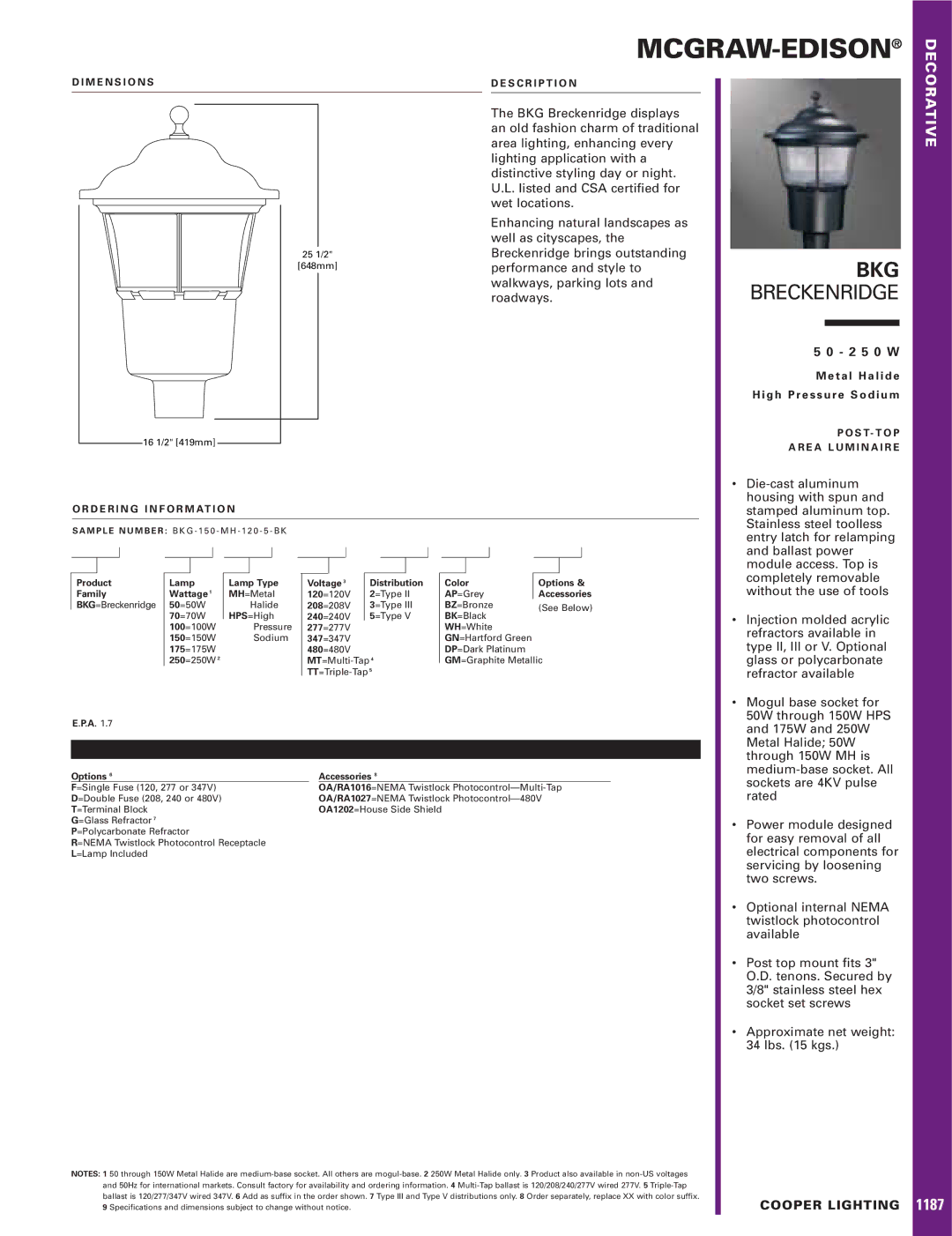

Cooper Lighting 50-250W dimensions Mcgraw-Edison, Breckenridge, 1187, 5 0 - 2 5 0 W

MCGRAW-EDISON®

D I M E N S I O N S

25 1/2"

[648mm]

16 1/2" [419mm]

D E S C R I P T I O N

The BKG Breckenridge displays an old fashion charm of traditional area lighting, enhancing every lighting application with a distinctive styling day or night. U.L. listed and CSA certified for wet locations.

Enhancing natural landscapes as well as cityscapes, the Breckenridge brings outstanding performance and style to walkways, parking lots and roadways.

BKG

BRECKENRIDGE

5 0 - 2 5 0 W

M e t a l H a l i d e

H i g h P r e s s u r e S o d i u m

P O S T- T O P

A R E A L U M I N A I R E

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : B K G - 1 5 0 - M H - 1 2 0 - 5 - B K

• Die-cast aluminum

housing with spun and

stamped aluminum top.

Stainless steel toolless

entry latch for relamping

and ballast power

module access. Top is

completely removable

Product

Family

BKG=Breckenridge

E.P.A. 1.7

Lamp Wattage 1 50=50W 70=70W 100=100W 150=150W 175=175W 250=250W 2

Lamp Type

MH=Metal

Halide

HPS=High

Pressure

Sodium

Voltage 3	Distribution	Color	Options &
120=120V	2=Type II	AP=Grey	Accessories
208=208V	3=Type III	BZ=Bronze	(See Below)
240=240V	5=Type V	BK=Black
277=277V		WH=White
347=347V		GN=Hartford Green
480=480V		DP=Dark Platinum
MT=Multi-Tap 4		GM=Graphite Metallic
TT=Triple-Tap 5

without the use of tools

• Injection molded acrylic

refractors available in

type II, III or V. Optional

glass or polycarbonate

refractor available

• Mogul base socket for

50W through 150W HPS

and 175W and 250W

Metal Halide; 50W

through 150W MH is

medium-base socket. All

DECORATIVE

Options 6	Accessories 8
F=Single Fuse (120, 277 or 347V)	OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap
D=Double Fuse (208, 240 or 480V)	OA/RA1027=NEMA Twistlock Photocontrol—480V
T=Terminal Block	OA1202=House Side Shield
G=Glass Refractor 7
P=Polycarbonate Refractor
R=NEMA Twistlock Photocontrol Receptacle
L=Lamp Included

	sockets are 4KV pulse
	rated
•	Power module designed
	for easy removal of all
	electrical components for
	servicing by loosening
	two screws.
•	Optional internal NEMA
	twistlock photocontrol
	available
• Post top mount fits 3"
	O.D. tenons. Secured by
	3/8" stainless steel hex
	socket set screws
•	Approximate net weight:
	34 lbs. (15 kgs.)

NOTES: 1	50 through 150W Metal Halide are medium-base socket. All others are mogul-base. 2 250W Metal Halide only. 3 Product also available in non-US voltages
and 50Hz for international markets. Consult factory for availability and ordering information. 4 Multi-Tap ballast is 120/208/240/277V wired 277V. 5 Triple-Tap
ballast is 120/277/347V wired 347V. 6 Add as suffix in the order shown. 7 Type III and Type V distributions only. 8 Order separately, replace XX with color suffix.		COOPER LIGHTING
9	Specifications and dimensions subject to change without notice.

1187
