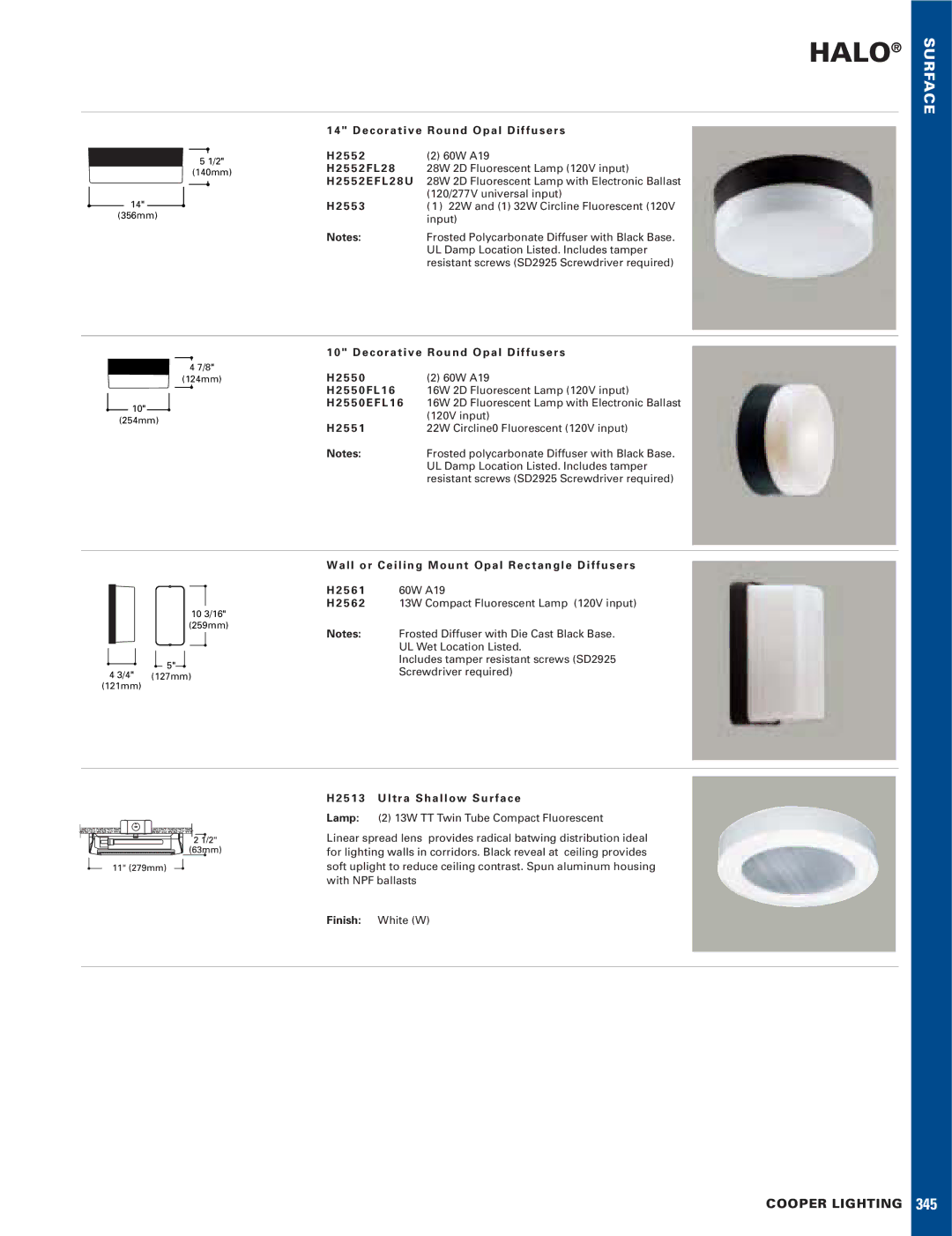

HALO®
SURFACE
5 1/2"
(140mm)
14"
(356mm)
1 4 " D e c o r a t i v e R o u n d O p a l D i f f u s e r s
H 2 5 5 2 | (2) 60W A19 | |
H 2 5 5 2 F L 2 8 | 28W | 2D Fluorescent Lamp (120V input) |
H 2 5 5 2 E F L 2 8 U 28W | 2D Fluorescent Lamp with Electronic Ballast | |
H 2 5 5 3 | (120/277V universal input) | |
( 1 ) 22W and (1) 32W Circline Fluorescent (120V | ||
| input) | |
Notes: | Frosted Polycarbonate Diffuser with Black Base. | |
| UL Damp Location Listed. Includes tamper | |
| resistant screws (SD2925 Screwdriver required) | |
1 0 " D e c o r a t i v e R o u n d O p a l D i f f u s e r s
4 7/8"
(124mm)
10"
(254mm)
H 2 5 5 0 | (2) 60W A19 | |
H 2 5 5 0 F L 1 6 | 16W | 2D Fluorescent Lamp (120V input) |
H 2 5 5 0 E F L 1 6 | 16W | 2D Fluorescent Lamp with Electronic Ballast |
H 2 5 5 1 | (120V input) | |
22W | Circline0 Fluorescent (120V input) | |
Notes: | Frosted polycarbonate Diffuser with Black Base. | |
| UL Damp Location Listed. Includes tamper | |
| resistant screws (SD2925 Screwdriver required) | |
Wa l l o r C e i l i n g M o u n t O p a l R e c t a n g l e D i f f u s e r s
|
|
| H 2 5 6 1 | 60W A19 | |
|
|
| H 2 5 6 2 | 13W Compact Fluorescent Lamp (120V input) | |
|
|
| 10 3/16" |
| |
|
|
| (259mm) | Frosted Diffuser with Die Cast Black Base. | |
|
|
| Notes: | ||
|
|
|
| UL Wet Location Listed. | |
|
|
| 5" | Includes tamper resistant screws (SD2925 | |
4 3/4" | Screwdriver required) | ||||
(127mm) | |||||
| |||||
(121mm)
H 2 5 1 3 U l t r a S h a l l o w S u r f a c e
Lamp: (2) 13W TT Twin Tube Compact Fluorescent
Linear spread lens provides radical batwing distribution ideal for lighting walls in corridors. Black reveal at ceiling provides soft uplight to reduce ceiling contrast. Spun aluminum housing with NPF ballasts
Finish: White (W)
