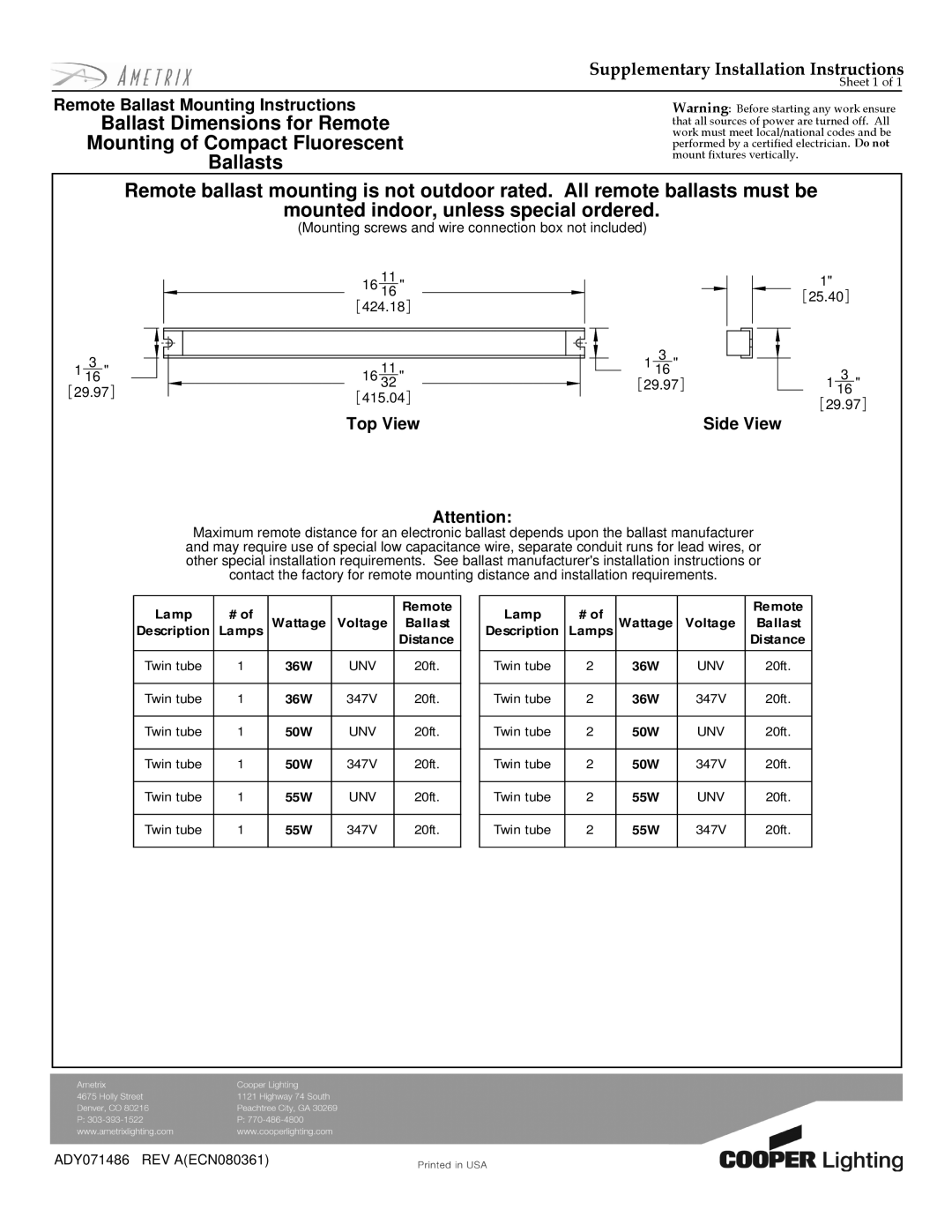

Supplementary Installation Instructions



Sheet 1 of 1

Remote Ballast Mounting Instructions

Warning: Before starting any work ensure



Ballast Dimensions for Remote

that all sources of power are turned off. All



Mounting of Compact Fluorescent

work must meet local/national codes and be

performed by a certified electrician. Do not

Ballasts

mount fixtures vertically.





Remote ballast mounting is not outdoor rated. All remote ballasts must be

mounted indoor, unless special ordered.

3

1 16 "

29.97





(Mounting screws and wire connection box not included)









16

11

"





















1"











16























25.40









424.18





























































































































11



1

3

"







16

"

16



3



32

29.97

1

"





16

415.04

















29.97













Top View

Side View

Attention:

Maximum remote distance for an electronic ballast depends upon the ballast manufacturer and may require use of special low capacitance wire, separate conduit runs for lead wires, or other special installation requirements. See ballast manufacturer's installation instructions or contact the factory for remote mounting distance and installation requirements.

Lamp

# of





Remote

Wattage

Voltage

Ballast

Description

Lamps









Distance











Twin tube

1

36W

UNV

20ft.











Twin tube

1

36W

347V

20ft.











Twin tube

1

50W

UNV

20ft.











Twin tube

1

50W

347V

20ft.











Twin tube

1

55W

UNV

20ft.











Twin tube

1

55W

347V

20ft.











Lamp

# of





Remote

Wattage

Voltage

Ballast

Description

Lamps









Distance











Twin tube

2

36W

UNV

20ft.











Twin tube

2

36W

347V

20ft.











Twin tube

2

50W

UNV

20ft.











Twin tube

2

50W

347V

20ft.











Twin tube

2

55W

UNV

20ft.











Twin tube

2

55W

347V

20ft.











ADY071486 REV A(ECN080361)

Page 1
