Construction
Extruded aluminum housing. Nominal 3’, 4’, 6’ or 8’ illuminated sections.
End Caps
Shielding
Clear ribbed acrylic lens or contoured baffle.
Electrical
120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic finish.
Mounting
Fixture mounts directly to existing structure over a 2”x 4” standard electrical box mounted horizontally in the wall.
ORDERING INFORMATION:
Sample number:
Series
6=Cirque
Light Output
Mounting
W=Wall
Number of Lamps (per cross section) (not included)
1=1 Lamp | 2=2 Lamps |
Lamp Type
T8T5T5HO
Run Length
Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)
Voltage 1 |
|
|
|
1=120V | 2=277V | 3=347V | U=Universal |
Ballast |
|
|
|
EB=Electronic Ballast (Standard) | DB=Dimming Ballast | ||
Switching |
|
|
|
SI=Single Switching | DU=Dual Switching | ||
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding (Available for 83 and 89 only)
S14=Contoured Baffle S26=Clear Ribbed Acrylic Lens
1 Due to various constraints, some options may not be combined with others.
| WALL |
|

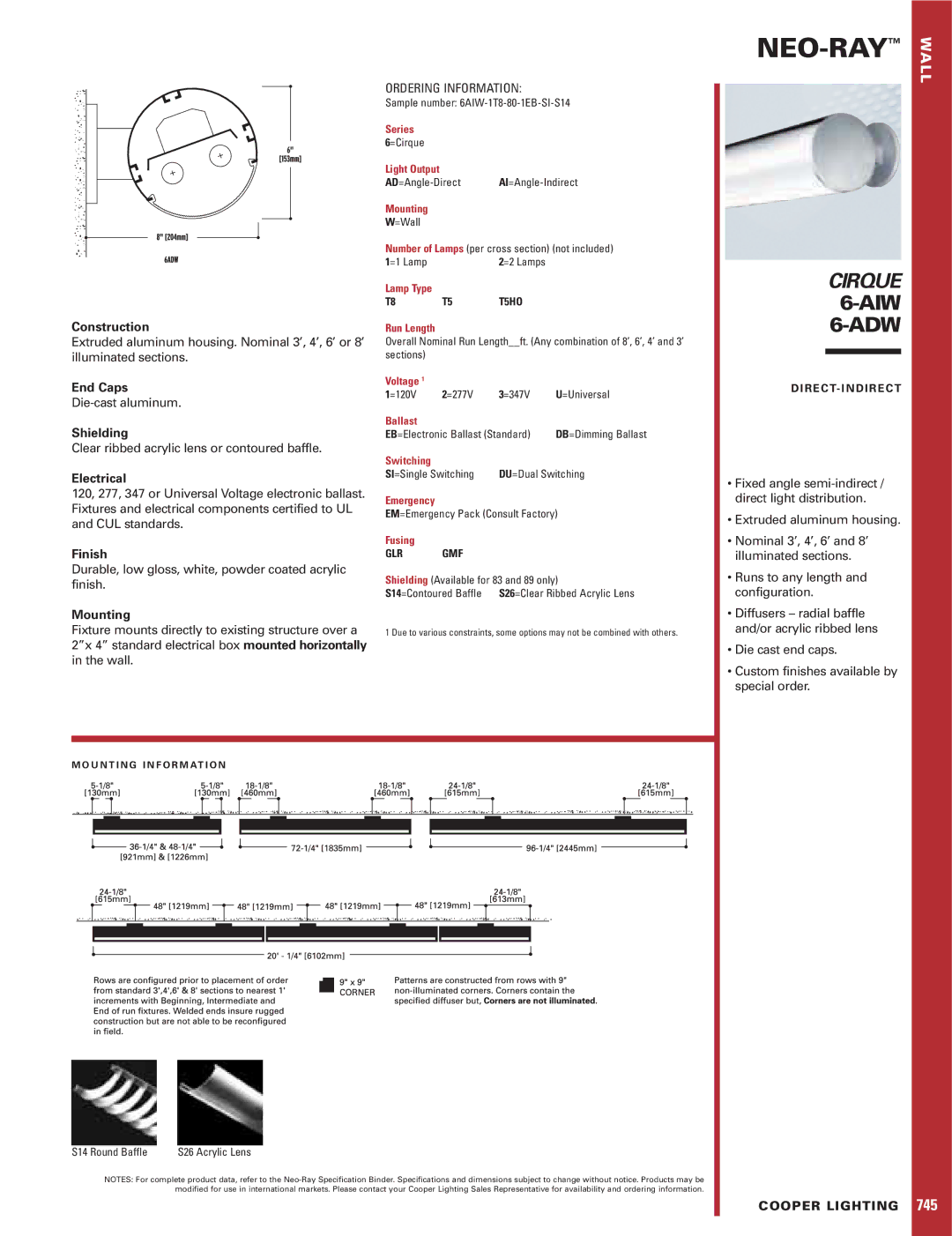

CIRQUE 6-AIW
6-ADW
D I R E C T- I N D I R E C T
•Fixed angle
•Extruded aluminum housing.
•Nominal 3’, 4’, 6’ and 8’ illuminated sections.
•Runs to any length and configuration.
•Diffusers – radial baffle and/or acrylic ribbed lens
•Die cast end caps.
•Custom finishes available by special order.
M O U N T I N G I N F O R M AT I O N
S14 Round Baffle | S26 Acrylic Lens |
NOTES: For complete product data, refer to the
