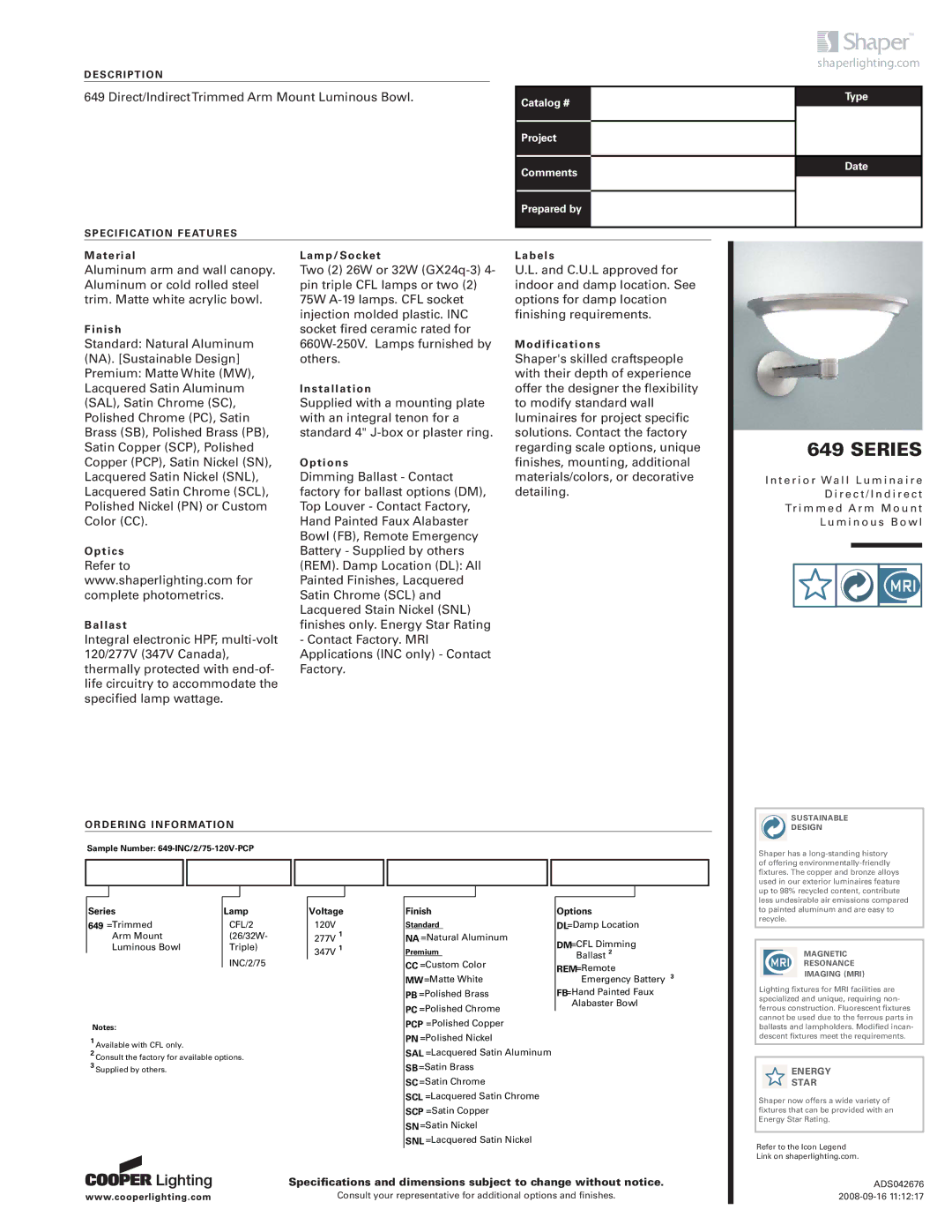

DESCRIPTION

649 Direct/IndirectTrimmed Arm Mount Luminous Bowl.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Aluminum arm and wall canopy. Aluminum or cold rolled steel trim. Matte white acrylic bowl.

Finish

Standard: Natural Aluminum (NA). [Sustainable Design] Premium: Matte White (MW), Lacquered Satin Aluminum (SAL), Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Satin Copper (SCP), Polished Copper (PCP), Satin Nickel (SN), Lacquered Satin Nickel (SNL), Lacquered Satin Chrome (SCL), Polished Nickel (PN) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

Two (2) 26W or 32W (GX24q-3) 4- pin triple CFL lamps or two (2) 75W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a mounting plate with an integral tenon for a standard 4" J-box or plaster ring.

Options

Dimming Ballast - Contact factory for ballast options (DM), Top Louver - Contact Factory, Hand Painted Faux Alabaster Bowl (FB), Remote Emergency Battery - Supplied by others (REM). Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Stain Nickel (SNL) finishes only. Energy Star Rating

-Contact Factory. MRI Applications (INC only) - Contact Factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

649 SERIES

I n t e r i o r Wa l l L u m i n a i r e D i r e c t / I n d i r e c t Tr i m m e d A r m M o u n t L u m i n o u s B o w l

ORDERING INFORMATION

Sample Number: 649-INC/2/75-120V-PCP

SUSTAINABLE

DESIGN

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared

Series

Lamp

649 =Trimmed

CFL/2

Arm Mount

(26/32W-

Luminous Bowl

Triple)



INC/2/75

Notes:

1Available with CFL only.

2Consult the factory for available options.

3Supplied by others.

Voltage

120V

277V 1

347V 1

Finish

Standard

NA =Natural Aluminum

Premium

CC=Custom Color

MW=Matte White

PB =Polished Brass

PC =Polished Chrome

PCP =Polished Copper

PN =Polished Nickel

SAL =Lacquered Satin Aluminum

SB=Satin Brass

SC =Satin Chrome

SCL =Lacquered Satin Chrome

SCP =Satin Copper

SN=Satin Nickel

SNL =Lacquered Satin Nickel

Options

DL=Damp Location

DM=CFL Dimming

Ballast 2

REM=Remote

Emergency Battery 3

FB=Hand Painted Faux

Alabaster Bowl

to painted aluminum and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042676 2008-09-16 11:12:17
