WALL

SHAPER

EXTERIOR

695-WP-DB SERIES

695-WP Half Pyramid with Direct Illumination and a Back Panel.



10"







20"

1'-8"









18"

9"





Sample Number: 695-WP-DB-MH/1/70-277V-GM





Series

Lamp

Voltage

Finish3, 4

Options

695-WP-DB =

CFL/1 (26/32/42W-Triple)

120V

NBZ (standard),

C

Half Pyramid w/

INC/1/60

277V1

BK, BM, CC, DP,

PH

Back Panel

MH/1/50

347V2

GM, GRM, GY,

QR5



MH/1/70



SCL, SM, WH





MH/1/100







Notes:

1 CFL and MH only.

2 Available with CFL only.

3 Premium TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear. 4 Bronze will weather to a dark bronze patina.

5 MH only.

MATERIAL

Solid bronze construction with a clear textured refractive glass lense for MH or white acrylic lense for incandescent and CFL lamps.

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate specified lamp wattage. Integral metal halide ballast is electronic HPF, multi-volt 120/277V for the specified lamp wattage. 347V ballast for metal halide - Contact factory.

INSTALLATION Supplied with a universal mounting back for a standard 4" J-box or plaster ring. Optional rear (through wall) feed conduit mounting.

LAMP/SOCKET

One (1) 26W, 32W (GX24q-3) or 42W

(GX24q-4) 4-pin triple tube CFL lamp or one (1) 60W A-19 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W- 250V. Metal halide

is ceramic pulse-rated, 4KV. Lamps furnished by others.

FINISH AND OPTIONS

See page 1020 for finish details and options.

697-WP SERIES

The 697-WP features a compact cast Aluminum Hood Downlight.



R4"

6"



R4"



4-3/8"





6"





4-3/8"







9"





9"

8"

12-7/8"



14-1/2"

INC, CFL & MH





6-3/8"



6-3/8"







INC & CFL



MH



Sample Number: 697-WP-INC/1/100-120V-GM





Series

Lamp



Voltage

Finish3

Options

697-WP =

CFL/1 (26/32/42W-Triple)

120V

BK, WH (standard),

C

Hood Downlight

INC/1/100

277V1

BM, CC, DP, GM,

QR4



MH/1/50



347V2

GRM, GY, SM

TGL4



MH/1/70







PH



MH/1/100







Notes:

1 CFL and MH only.

2 Available with CFL only.

3 Premium TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear. 4 MH only.

MATERIAL Cast aluminum construction with clear tempered refractive glass for MH incandescent or 1/8" white acrylic for incandescent and CFL lamps. Optional clear tempered glass for full cut-off.

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage. Metal halide ballasts are electronic HPF, multi-volt 120/277V for the specified lamp wattage. 347V ballasts for metal halide - Contact factory.

INSTALLATION Supplied with a mounting back for a standard 4" J-box or stucco ring. Optional rear (through wall) feed conduit mounting.

LAMP/SOCKET

One (1) 26W, 32W (GX24q-3) or 42W

(GX24q-4) 4-pin triple tube CFL lamp or one (1) 50W, 70W or 100W ED-17 metal halide lamp or one (1) 100W A-19 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Metal halide socket ceramic pulse-rated, 4KV. Lamps furnished by others.

FINISH AND OPTIONS

See page 1020 for finish details and options.

998COOPER LIGHTING

Page 1

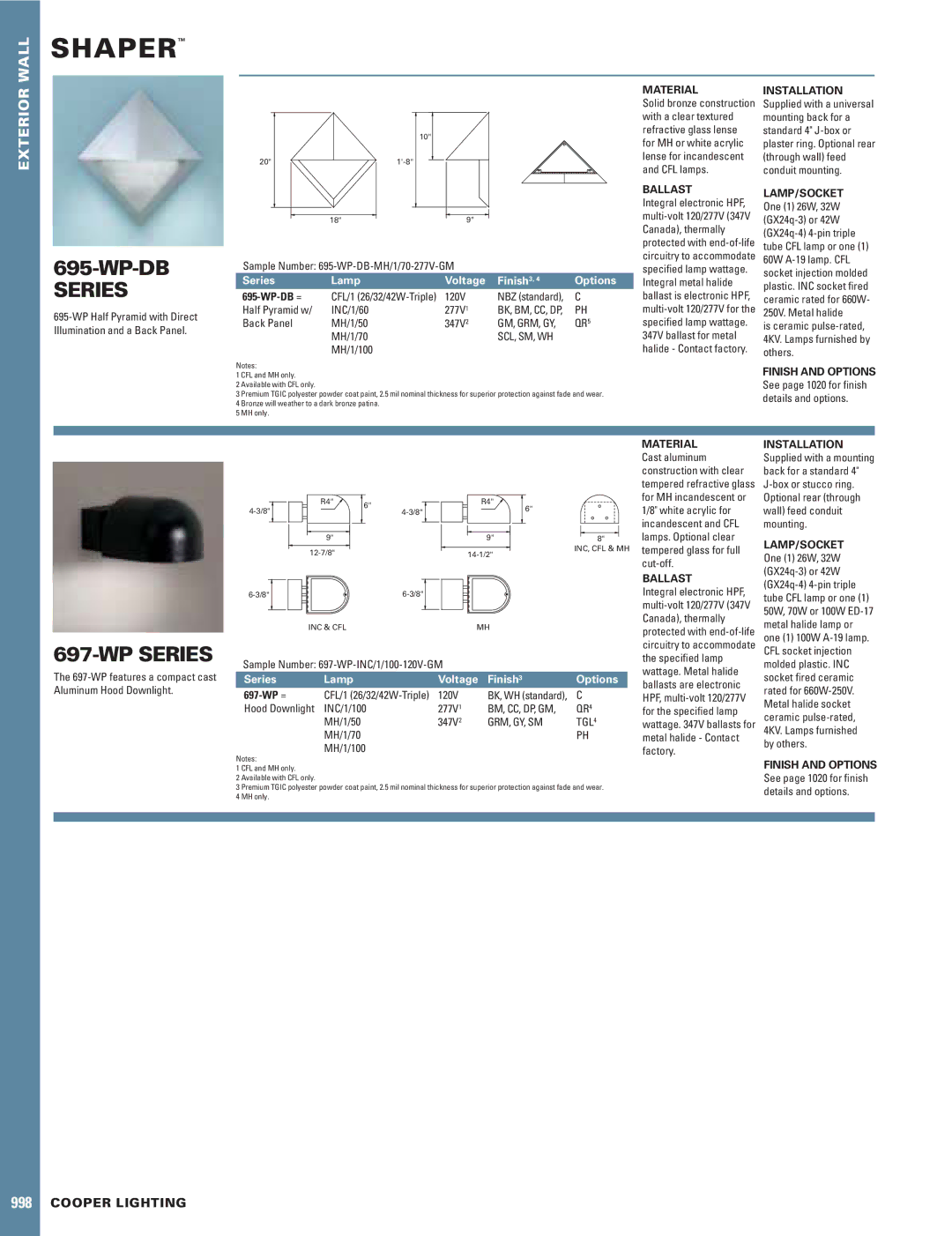

Image 1
