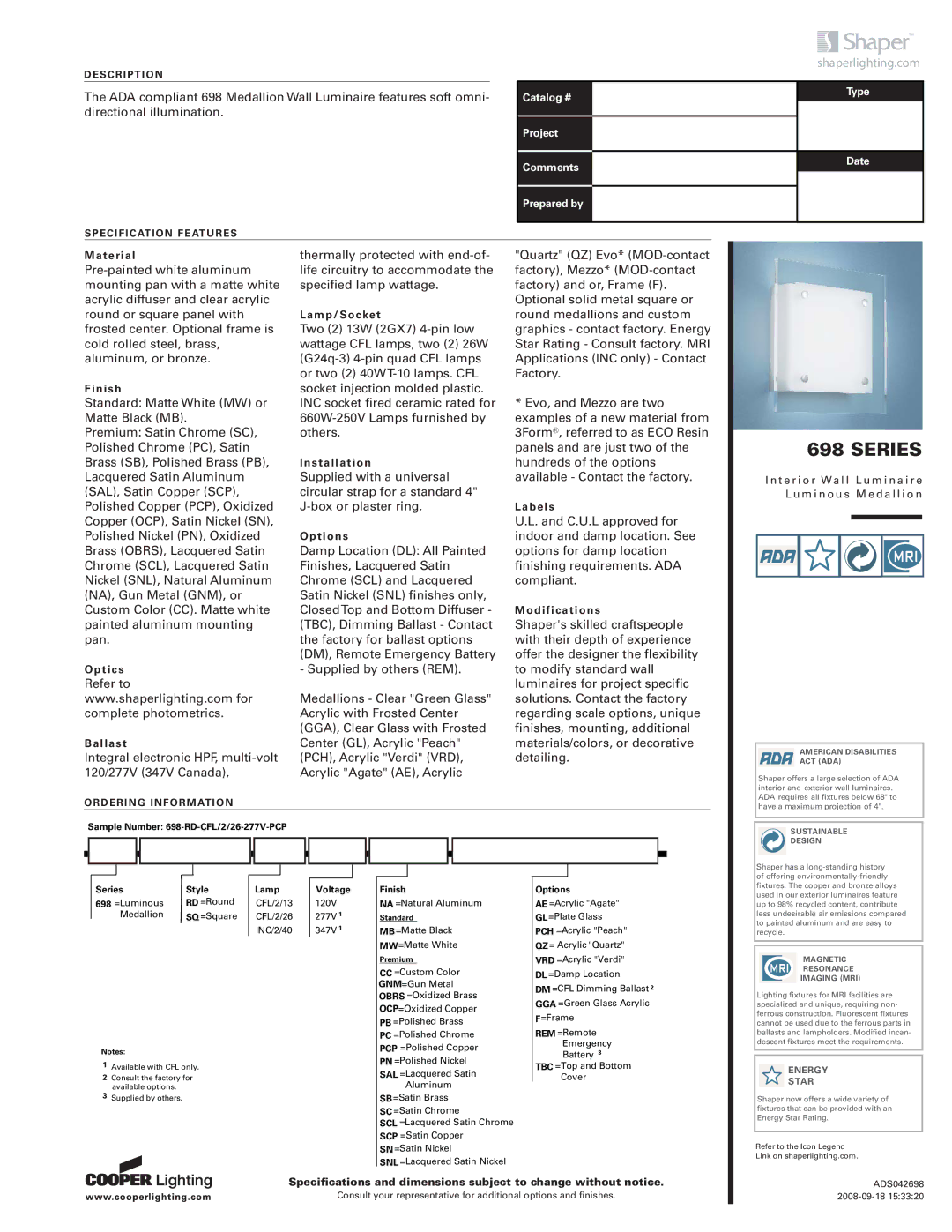

Cooper Lighting 698 Series specifications

DESCRIPTION

The ADA compliant 698 Medallion Wall Luminaire features soft omni- directional illumination.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Pre-painted white aluminum mounting pan with a matte white acrylic diffuser and clear acrylic round or square panel with frosted center. Optional frame is cold rolled steel, brass, aluminum, or bronze.

Finish

Standard: Matte White (MW) or Matte Black (MB).

Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Lacquered Satin Aluminum (SAL), Satin Copper (SCP), Polished Copper (PCP), Oxidized Copper (OCP), Satin Nickel (SN), Polished Nickel (PN), Oxidized Brass (OBRS), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL), Natural Aluminum (NA), Gun Metal (GNM), or Custom Color (CC). Matte white painted aluminum mounting pan.

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada),

ORDERING INFORMATION

thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

Two (2) 13W (2GX7) 4-pin low wattage CFL lamps, two (2) 26W (G24q-3) 4-pin quad CFL lamps or two (2) 40WT-10 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only, ClosedTop and Bottom Diffuser - (TBC), Dimming Ballast - Contact the factory for ballast options (DM), Remote Emergency Battery - Supplied by others (REM).

Medallions - Clear "Green Glass" Acrylic with Frosted Center (GGA), Clear Glass with Frosted Center (GL), Acrylic "Peach" (PCH), Acrylic "Verdi" (VRD), Acrylic "Agate" (AE), Acrylic

"Quartz" (QZ) Evo* (MOD-contact factory), Mezzo* (MOD-contact factory) and or, Frame (F). Optional solid metal square or round medallions and custom graphics - contact factory. Energy Star Rating - Consult factory. MRI Applications (INC only) - Contact Factory.

*Evo, and Mezzo are two examples of a new material from 3Form®, referred to as ECO Resin panels and are just two of the hundreds of the options available - Contact the factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements. ADA compliant.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

698 SERIES

I n t e r i o r Wa l l L u m i n a i r e L u m i n o u s M e d a l l i o n

AMERICAN DISABILITIES

ACT (ADA)

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

Sample Number: 698-RD-CFL/2/26-277V-PCP

SUSTAINABLE

DESIGN

Series	Style
698 =Luminous	RD =Round
Medallion	SQ=Square

Notes:

1Available with CFL only.

2Consult the factory for available options.

3Supplied by others.

Lamp

CFL/2/13

CFL/2/26

INC/2/40

Voltage

120V

277V 1

347V 1

Finish

NA =Natural Aluminum

Standard

MB=Matte Black

MW=Matte White

Premium

CC=Custom Color GNM=Gun Metal OBRS =Oxidized Brass OCP=Oxidized Copper PB =Polished Brass PC =Polished Chrome PCP =Polished Copper PN =Polished Nickel

SAL =Lacquered Satin

Aluminum SB=Satin Brass

SC =Satin Chrome

SCL =Lacquered Satin Chrome SCP =Satin Copper

SN=Satin Nickel

SNL =Lacquered Satin Nickel

Options

AE =Acrylic "Agate"

GL=Plate Glass

PCH =Acrylic "Peach"

QZ= Acrylic "Quartz"

VRD =Acrylic "Verdi"

DL =Damp Location

DM =CFL Dimming Ballast 2

GGA =Green Glass Acrylic

F=Frame

REM =Remote

Emergency

Battery 3

TBC =Top and Bottom

Cover

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042698 2008-09-18 15:33:20
