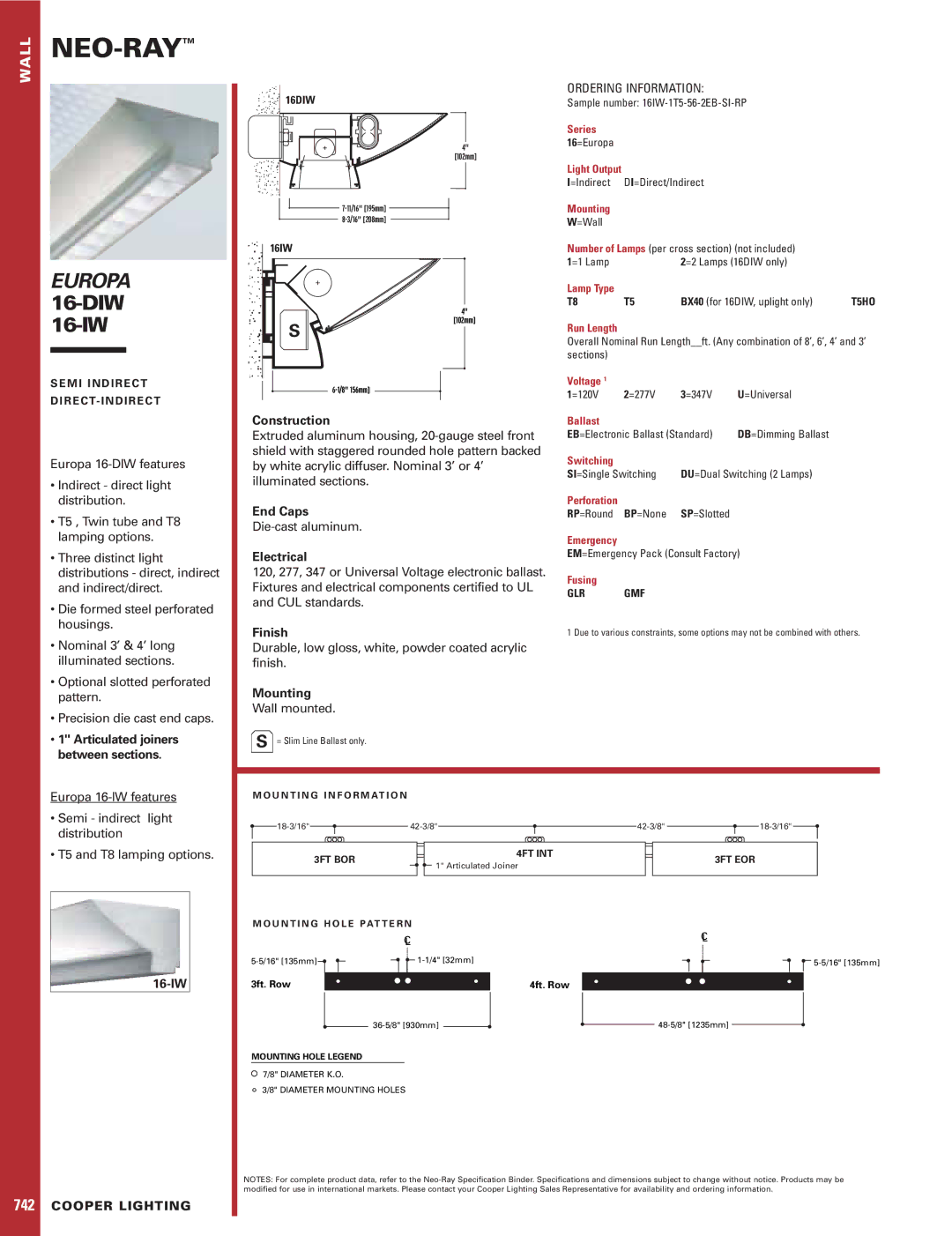

Cooper Lighting 742 specifications Neo-Ray, EUROPA 16-DIW 16-IW, Wall, Construction, End Caps

WALL

NEO-RAY™

EUROPA 16-DIW16-IW

16DIW

4"

[102mm]

7-11/16" [195mm]

8-3/16" [208mm]

16IW

4"

[102mm]

S

ORDERING INFORMATION:

Sample number: 16IW-1T5-56-2EB-SI-RP

Series

16=Europa

Light Output

I=Indirect DI=Direct/Indirect

Mounting

W=Wall

Number of Lamps (per cross section) (not included)
1=1 Lamp		2=2 Lamps (16DIW only)
Lamp Type		BX40 (for 16DIW, uplight only)
T8	T5		T5HO

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

S E M I I N D I R E C T

D I R E C T- I N D I R E C T

Europa 16-DIW features

•Indirect - direct light distribution.

•T5 , Twin tube and T8 lamping options.

•Three distinct light distributions - direct, indirect and indirect/direct.

•Die formed steel perforated housings.

•Nominal 3’ & 4’ long illuminated sections.

•Optional slotted perforated pattern.

•Precision die cast end caps.

•1" Articulated joiners between sections.

6-1/8" 156mm]

Construction

Extruded aluminum housing, 20-gauge steel front shield with staggered rounded hole pattern backed by white acrylic diffuser. Nominal 3’ or 4’ illuminated sections.

End Caps

Die-cast aluminum.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Wall mounted.

S= Slim Line Ballast only.

Voltage 1
1=120V	2=277V	3=347V	U=Universal
Ballast
EB=Electronic Ballast (Standard)			DB=Dimming Ballast

Switching

SI=Single Switching DU=Dual Switching (2 Lamps)

Perforation

RP=Round BP=None SP=Slotted

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

1 Due to various constraints, some options may not be combined with others.

Europa 16-IW features

• Semi - indirect light

distribution

M O U N T I N G I N F O R M AT I O N

18-3/16" 42-3/8" 42-3/8" 18-3/16"

• T5 and T8 lamping options.

16-IW

3FT BOR	4FT INT
	1" Articulated Joiner
M O U N T I N G H O L E PAT T E R N
CL

5-5/16" [135mm]	1-1/4" [32mm]
3ft. Row	4ft. Row

36-5/8" [930mm]

MOUNTING HOLE LEGEND

7/8" DIAMETER K.O.

3/8" DIAMETER MOUNTING HOLES

3FT EOR

CL

5-5/16" [135mm]

48-5/8" [1235mm]

742

COOPER LIGHTING

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
