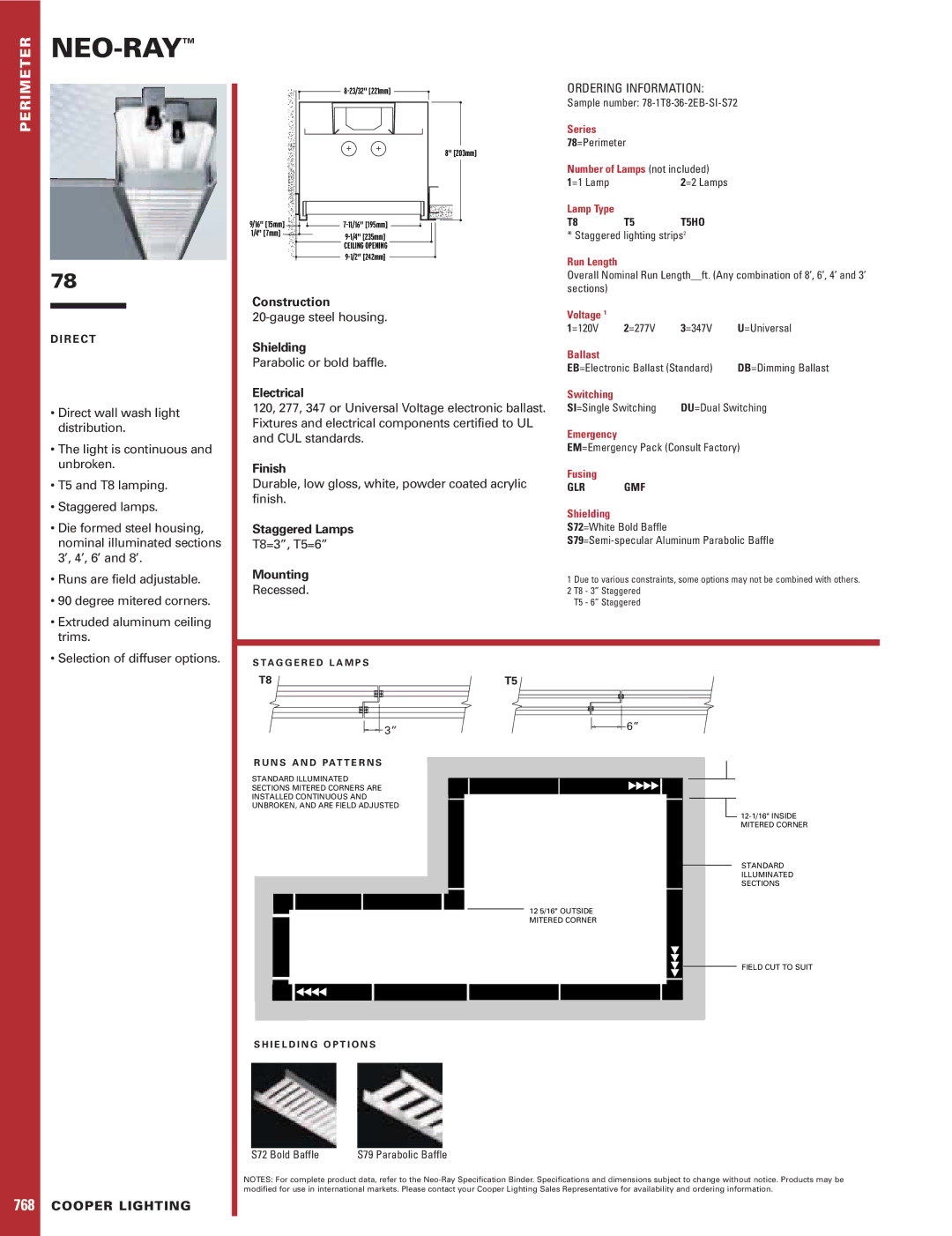

PERIMETER NEO-RAY™

78

D I R E C T

• Direct wall wash light

distribution.

• The light is continuous and

unbroken.

• T5 and T8 lamping.

• Staggered lamps.

• Die formed steel housing,

nominal illuminated sections

3’, 4’, 6’ and 8’.

• Runs are field adjustable.

• 90 degree mitered corners.

• Extruded aluminum ceiling

trims.

• Selection of diffuser options.

8-23/32" [221mm]

8" [203mm]

9/16" [15mm]	7-11/16" [195mm]
1/4" [7mm]	9-1/4" [235mm]
	CEILING OPENING
	9-1/2" [242mm]

Construction

20-gauge steel housing.

Shielding

Parabolic or bold baffle.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Staggered Lamps

T8=3”, T5=6”

Mounting

Recessed.

ORDERING INFORMATION:

Sample number: 78-1T8-36-2EB-SI-S72

Series

78=Perimeter

Number of Lamps (not included)

1=1 Lamp 2=2 Lamps

Lamp Type

T8T5T5HO

* Staggered lighting strips2

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1
1=120V	2=277V	3=347V	U=Universal
Ballast
EB=Electronic Ballast (Standard)			DB=Dimming Ballast
Switching
SI=Single Switching		DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding

S72=White Bold Baffle

S79=Semi-specular Aluminum Parabolic Baffle

1 Due to various constraints, some options may not be combined with others. 2 T8 - 3” Staggered

T5 - 6” Staggered

S T A G G E R E D L A M P S
T8	T5

3”	6”
R U N S A N D PAT T E R N S

STANDARD ILLUMINATED

SECTIONS MITERED CORNERS ARE

INSTALLED CONTINUOUS AND

UNBROKEN, AND ARE FIELD ADJUSTED

12 5/16" OUTSIDE MITERED CORNER

12-1/16" INSIDE MITERED CORNER

STANDARD ILLUMINATED SECTIONS

768 COOPER LIGHTING

FIELD CUT TO SUIT

S H I E L D I N G O P T I O N S

S72 Bold Baffle S79 Parabolic Baffle

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
