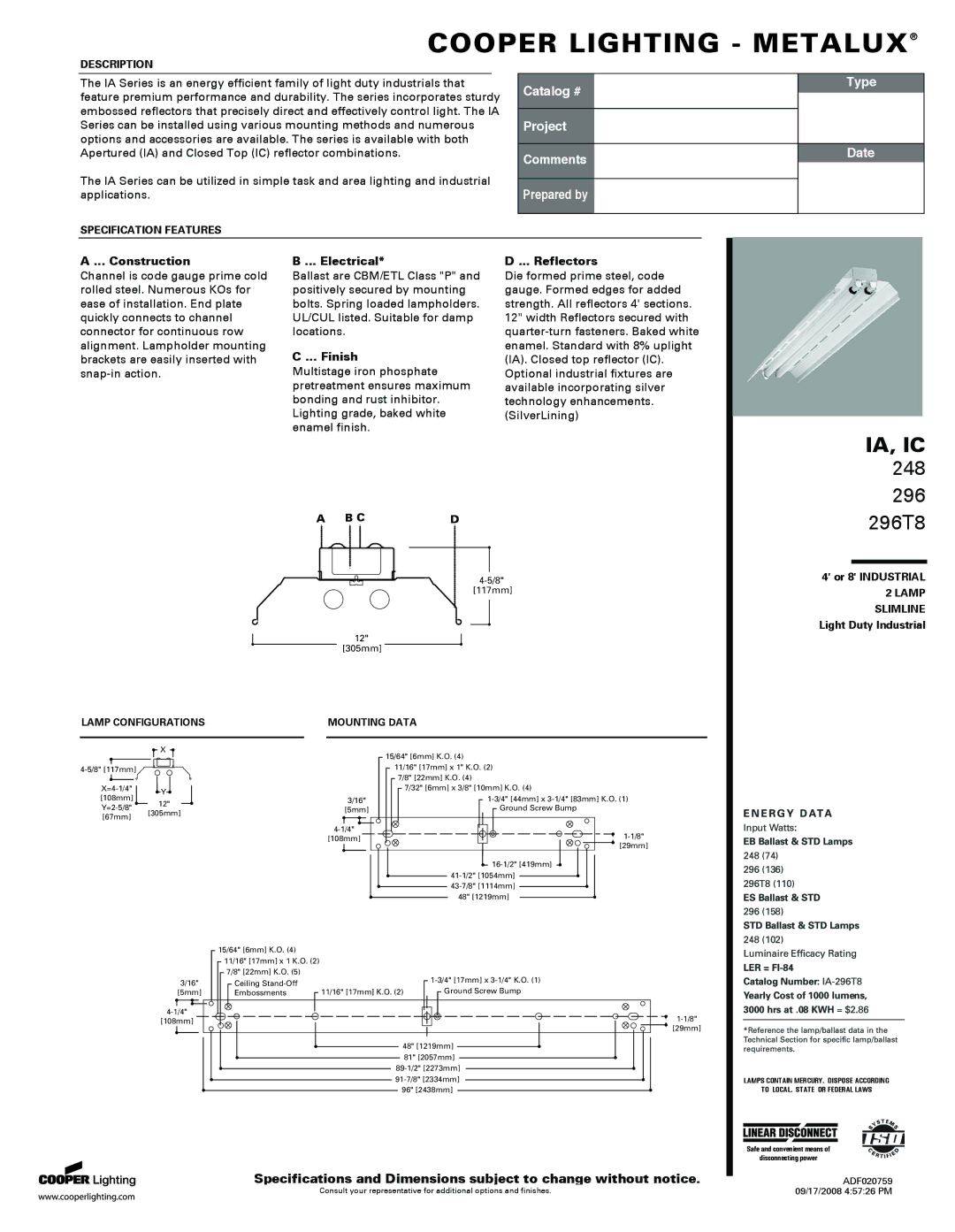

DESCRIPTION

The IA Series is an energy efficient family of light duty industrials that feature premium performance and durability. The series incorporates sturdy embossed reflectors that precisely direct and effectively control light. The IA Series can be installed using various mounting methods and numerous options and accessories are available. The series is available with both Apertured (IA) and Closed Top (IC) reflector combinations.

The IA Series can be utilized in simple task and area lighting and industrial applications.

Catalog #

Project

Comments

Prepared by

TypeDate

SPECIFICATION FEATURES

A ... Construction

Channel is code gauge prime cold rolled steel. Numerous KOs for ease of installation. End plate quickly connects to channel connector for continuous row alignment. Lampholder mounting brackets are easily inserted with snap-in action.

B ... Electrical*

Ballast are CBM/ETL Class "P" and positively secured by mounting bolts. Spring loaded lampholders. UL/CUL listed. Suitable for damp locations.

C ... Finish

Multistage iron phosphate pretreatment ensures maximum bonding and rust inhibitor. Lighting grade, baked white enamel finish.

D ... Reflectors

Die formed prime steel, code gauge. Formed edges for added strength. All reflectors 4' sections. 12" width Reflectors secured with quarter-turn fasteners. Baked white enamel. Standard with 8% uplight (IA). Closed top reflector (IC). Optional industrial fixtures are available incorporating silver technology enhancements. (SilverLining)

IA, IC

248

296

A B C D

4-5/8" [117mm]

12"

[305mm]

LAMP CONFIGURATIONS		MOUNTING DATA
	X		15/64" [6mm] K.O. (4)
4-5/8" [117mm]			11/16" [17mm] x 1" K.O. (2)
			7/8" [22mm] K.O. (4)
X=4-1/4"	Y		7/32" [6mm] x 3/8" [10mm] K.O. (4)
[108mm]		3/16"	1-3/4" [44mm] x 3-1/4" [83mm] K.O. (1)
	12"
Y=2-5/8"		[5mm]	Ground Screw Bump
	[305mm]
[67mm]

4-1/4"	1-1/8"
[108mm]
	[29mm]

			16-1/2" [419mm]
			41-1/2" [1054mm]
			43-7/8" [1114mm]
			48" [1219mm]
	15/64" [6mm] K.O. (4)
	11/16" [17mm] x 1 K.O. (2)
	7/8" [22mm] K.O. (5)		1-3/4" [17mm] x 3-1/4" K.O. (1)
3/16"	Ceiling Stand-Off
		11/16" [17mm] K.O. (2)	Ground Screw Bump
[5mm]	Embossments
4-1/4"			1-1/8"
[108mm]
			[29mm]
		48" [1219mm]
			81" [2057mm]
		89-1/2" [2273mm]
		91-7/8" [2334mm]
		96" [2438mm]

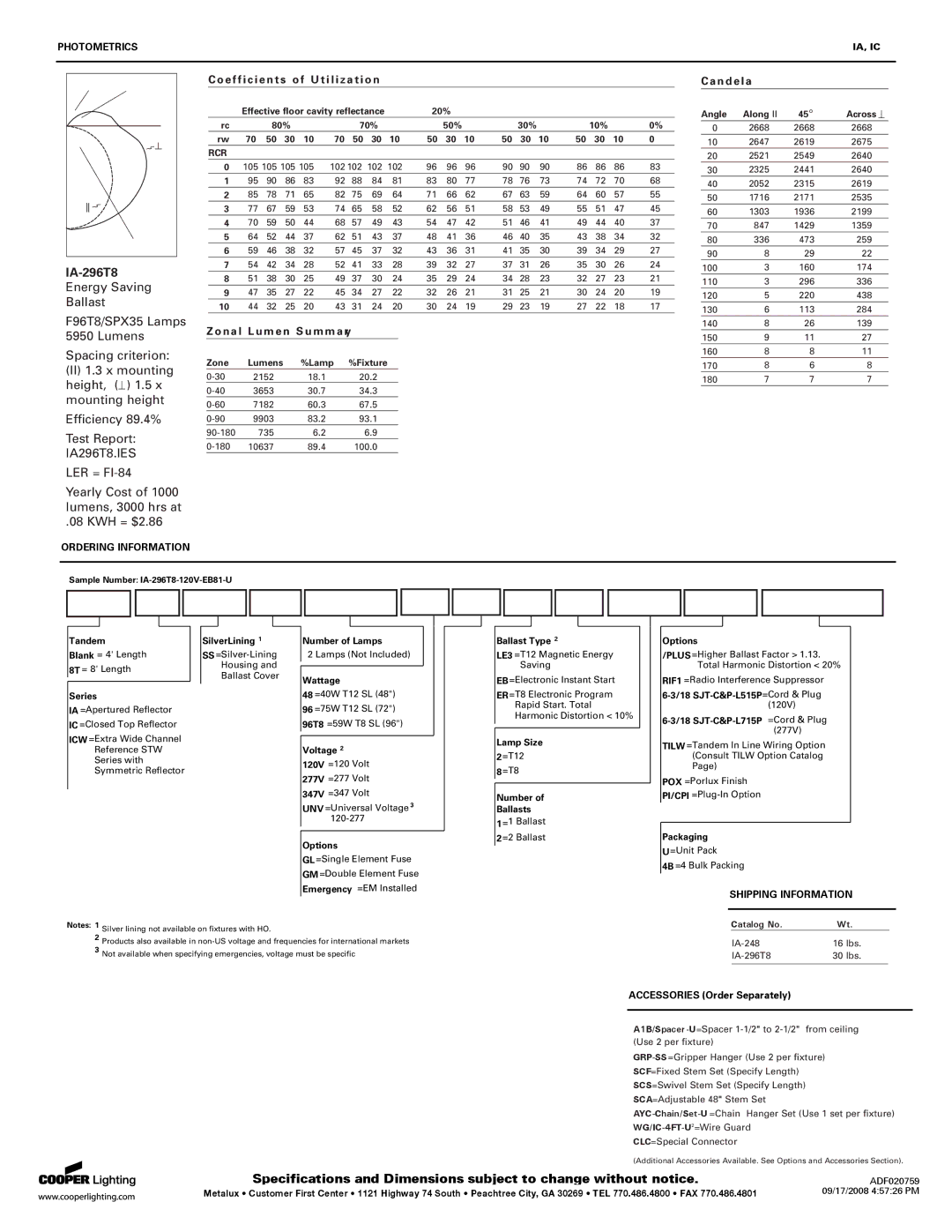

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.

296T8

4' or 8' INDUSTRIAL 2 LAMP SLIMLINE

Light Duty Industrial

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING

TO LOCAL, STATE OR FEDERAL LAWS

Safe and convenient means of

disconnecting power
