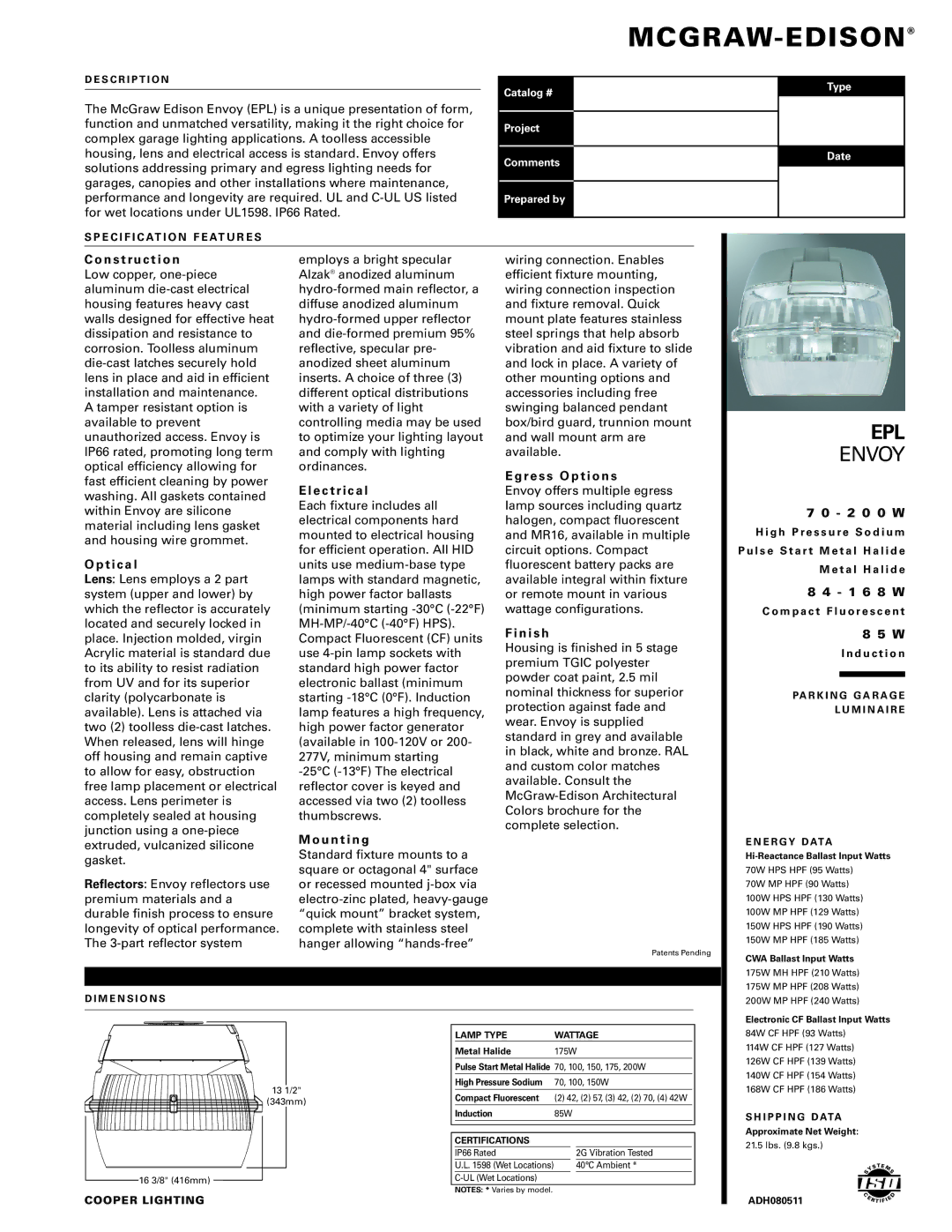

Cooper Lighting 70 - 200W, 84 - 168W, 85W dimensions

COOPER LIGHTING

MCGRAW-EDISON®

EPL

ENVOY

70-200W

High Pressure Sodium

Pulse Start Metal Halide

Metal Halide

84-168W

Compact Fluorescent

85W

Induction

PARKING GARAGE

LUMINAIRE

ADH080511

DESCRIPTION

The McGraw Edison Envoy (EPL) is a unique presentation of form,

function and unmatched versatility, making it the right choice for

complex garage lighting applications. A toolless accessible

housing, lens and electrical access is standard. Envoy offers

solutions addressing primary and egress lighting needs for

garages, canopies and other installations where maintenance,

performance and longevity are required. UL and C-UL US listed

for wet locations under UL1598. IP66 Rated.

DIMENSIONS

ENERGY DATA

Hi-Reactance Ballast Input Watts

70W HPS HPF (95 Watts)

70W MP HPF (90 Watts)

100W HPS HPF (130 Watts)

100W MP HPF (129 Watts)

150W HPS HPF (190 Watts)

150W MP HPF (185 Watts)

CWA Ballast Input Watts

175W MH HPF (210 Watts)

175W MP HPF (208 Watts)

200W MP HPF (240 Watts)

Electronic CF Ballast Input Watts

84W CF HPF (93 Watts)

114W CF HPF (127 Watts)

126W CF HPF (139 Watts)

140W CF HPF (154 Watts)

168W CF HPF (186 Watts)

SHIPPING DATA

Approximate Net Weight:

21.5 lbs. (9.8 kgs.)

Catalog # Type

Date

Project

Comments

Prepared by

Construction

Low copper, one-piece

aluminum die-cast electrical

housing features heavy cast

walls designed for effective heat

dissipation and resistance to

corrosion. Toolless aluminum

die-cast latches securely hold

lens in place and aid in efficient

installation and maintenance.

A tamper resistant option is

available to prevent

unauthorized access. Envoy is

IP66 rated, promoting long term

optical efficiency allowing for

fast efficient cleaning by power

washing. All gaskets contained

within Envoy are silicone

material including lens gasket

and housing wire grommet.

Optical

Lens: Lens employs a 2 part

system (upper and lower) by

which the reflector is accurately

located and securely locked in

place. Injection molded, virgin

Acrylic material is standard due

to its ability to resist radiation

from UV and for its superior

clarity (polycarbonate is

available). Lens is attached via

two (2) toolless die-cast latches.

When released, lens will hinge

off housing and remain captive

to allow for easy, obstruction

free lamp placement or electrical

access. Lens perimeter is

completely sealed at housing

junction using a one-piece

extruded, vulcanized silicone

gasket.

Reflectors: Envoy reflectors use

premium materials and a

durable finish process to ensure

longevity of optical performance.

The 3-part reflector system

employs a bright specular

Alzak®anodized aluminum

hydro-formed main reflector, a

diffuse anodized aluminum

hydro-formed upper reflector

and die-formed premium 95%

reflective, specular pre-

anodized sheet aluminum

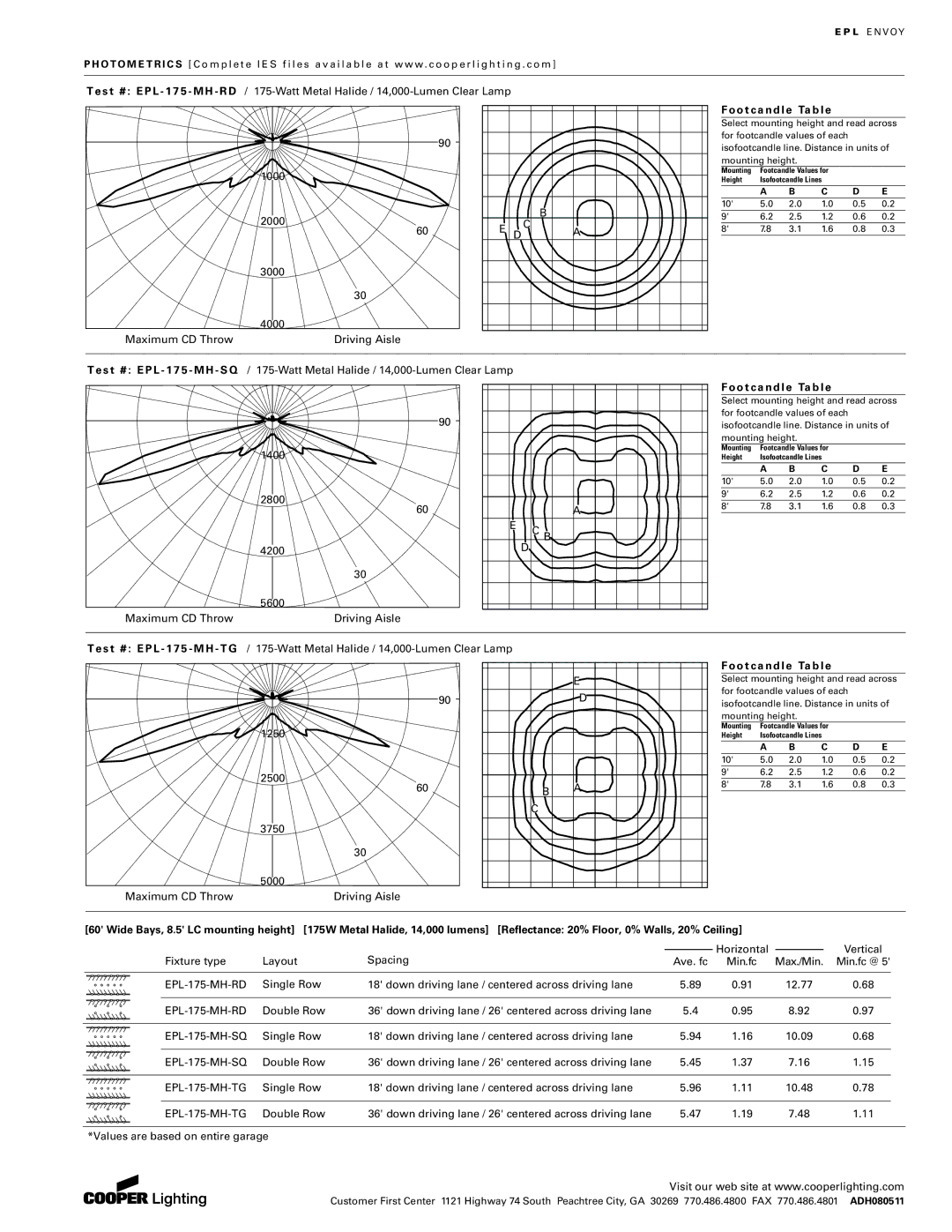

inserts. A choice of three (3)

different optical distributions

with a variety of light

controlling media may be used

to optimize your lighting layout

and comply with lighting

ordinances.

Electrical

Each fixture includes all

electrical components hard

mounted to electrical housing

for efficient operation. All HID

units use medium-base type

lamps with standard magnetic,

high power factor ballasts

(minimum starting -30°C (-22°F)

MH-MP/-40°C (-40°F) HPS).

Compact Fluorescent (CF) units

use 4-pin lamp sockets with

standard high power factor

electronic ballast (minimum

starting -18°C (0°F). Induction

lamp features a high frequency,

high power factor generator

(available in 100-120V or 200-

277V, minimum starting

-25°C (-13°F) The electrical

reflector cover is keyed and

accessed via two (2) toolless

thumbscrews.

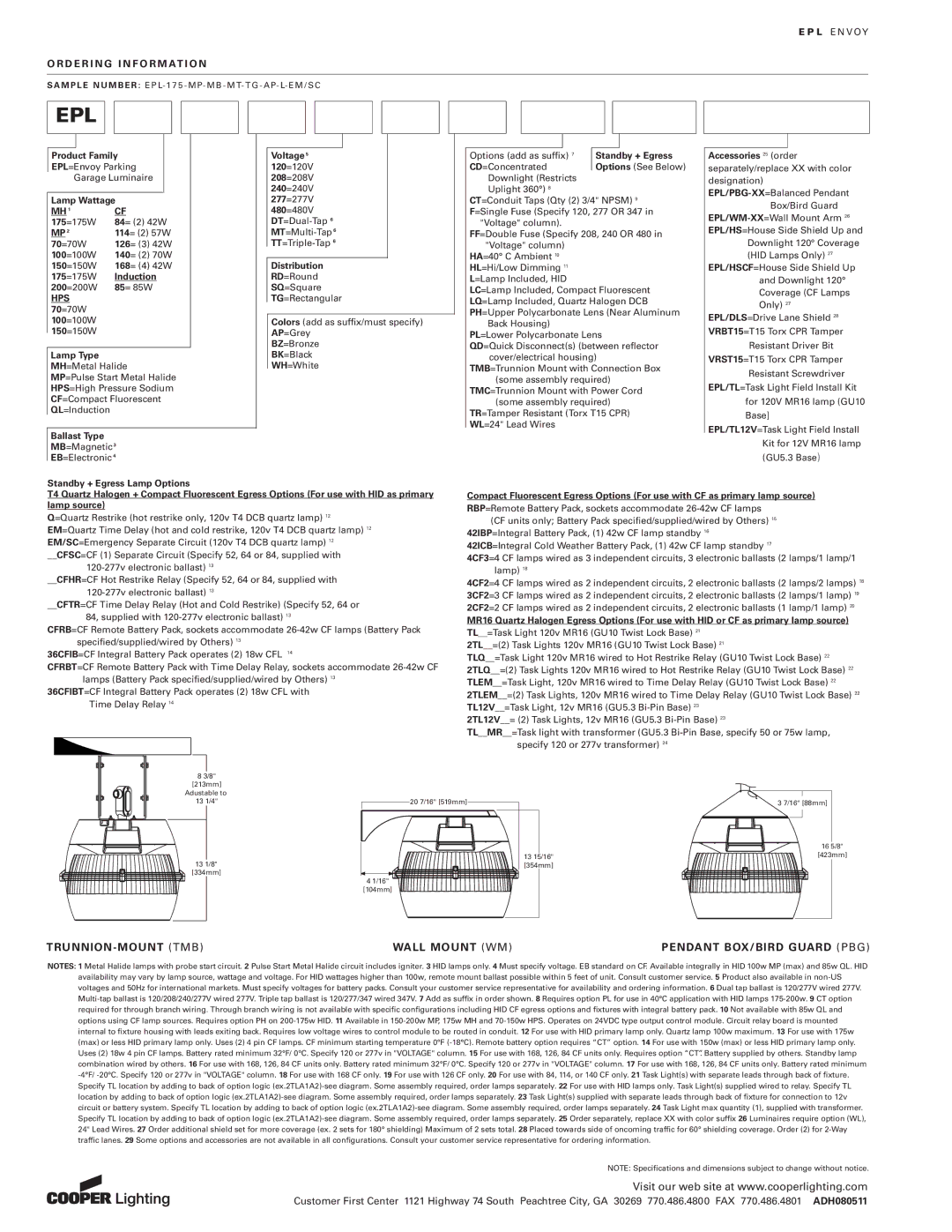

Mounting

Standard fixture mounts to a

square or octagonal 4" surface

or recessed mounted j-box via

electro-zinc plated, heavy-gauge

“quick mount” bracket system,

complete with stainless steel

hanger allowing “hands-free”

SPECIFICATION FEATURES

wiring connection. Enables

efficient fixture mounting,

wiring connection inspection

and fixture removal. Quick

mount plate features stainless

steel springs that help absorb

vibration and aid fixture to slide

and lock in place. A variety of

other mounting options and

accessories including free

swinging balanced pendant

box/bird guard, trunnion mount

and wall mount arm are

available.

Egress Options

Envoy offers multiple egress

lamp sources including quartz

halogen, compact fluorescent

and MR16, available in multiple

circuit options. Compact

fluorescent battery packs are

available integral within fixture

or remote mount in various

wattage configurations.

Finish

Housing is finished in 5 stage

premium TGIC polyester

powder coat paint, 2.5 mil

nominal thickness for superior

protection against fade and

wear. Envoy is supplied

standard in grey and available

in black, white and bronze. RAL

and custom color matches

available. Consult the

McGraw-Edison Architectural

Colors brochure for the

complete selection.

LAMP TYPE WATTAGE

Metal Halide

175W

Pulse Start Metal Halide 70, 100, 150, 175, 200W

High Pressure Sodium 70, 100, 150W

Compact Fluorescent (2) 42, (2) 57, (3) 42, (2) 70, (4) 42W

Induction 85W

16 3/8" (416mm)

13 1/2"

(343mm)

CERTIFICATIONS

IP66 Rated

U.L. 1598 (Wet Locations)

C-UL (Wet Locations)

2G Vibration Tested

40°C Ambient *

NOTES: * Varies by model.

Patents Pending
