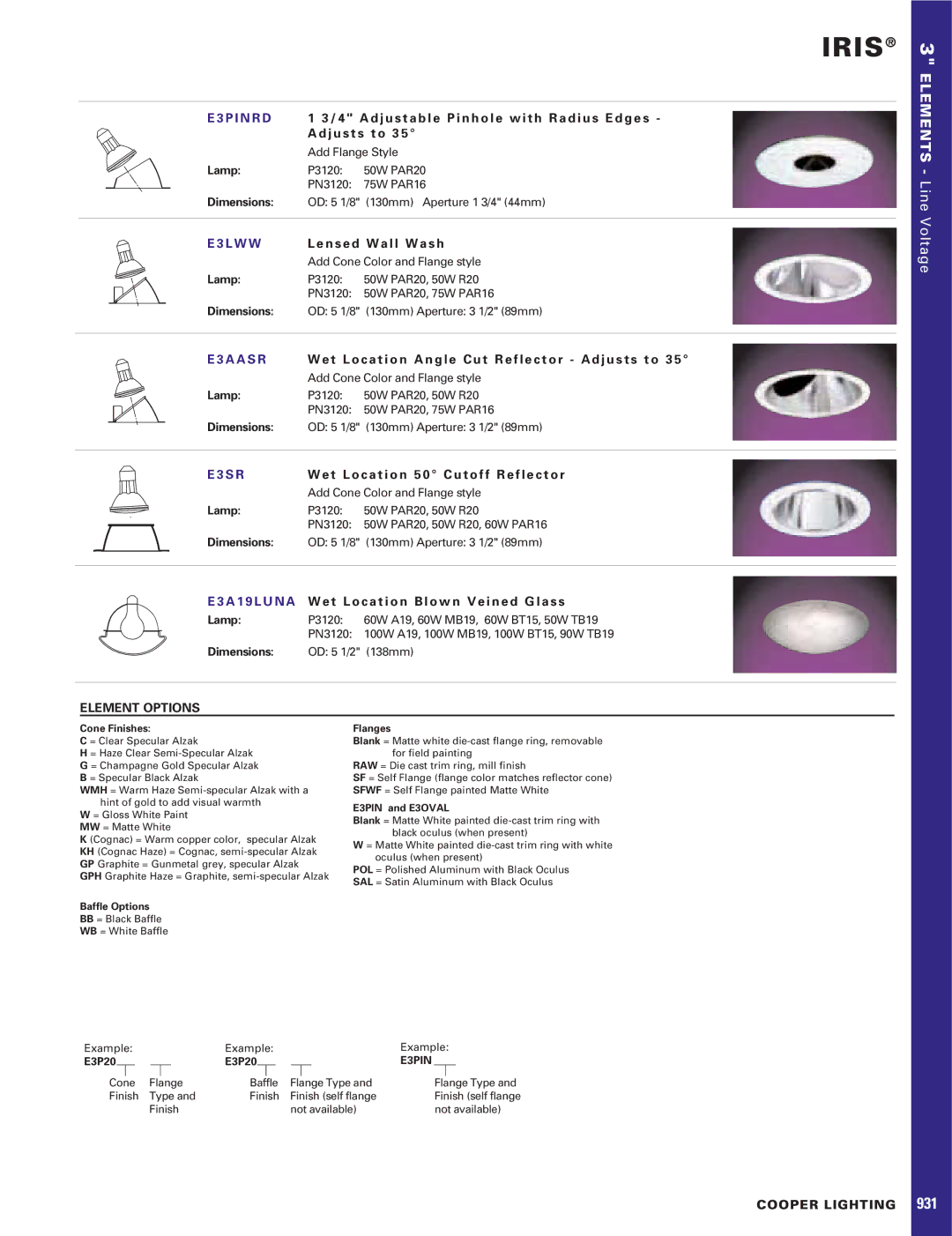

E 3 P I N R D

1 3 / 4 " A d j u s t a b l e P i n h o l e w i t h R a d i u s E d g e s -



A d j u s t s t o 3 5 °



Add Flange Style

Lamp:

P3120:

50W PAR20



PN3120:

75W PAR16

Dimensions:

OD: 5 1/8" (130mm) Aperture 1 3/4" (44mm)

E 3 L W W

L e n s e d W a l l W a s h



Add Cone Color and Flange style

Lamp:

P3120:

50W PAR20,

50W R20



PN3120:

50W PAR20,

75W PAR16

Dimensions:

OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E 3 A A S R

W e t L o c a t i o n A n g l e C u t R e f l e c t o r - A d j u s t s t o 3 5 °



Add Cone Color and Flange style

Lamp:

P3120:

50W PAR20,

50W R20



PN3120:

50W PAR20,

75W PAR16

Dimensions:

OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E 3 S R

W e t L o c a t i o n 5 0 ° C u t o f f R e f l e c t o r



Add Cone Color and Flange style

Lamp:

P3120:

50W PAR20, 50W R20



PN3120:

50W PAR20, 50W R20, 60W PAR16

Dimensions:

OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E 3 A 1 9 L U N A W e t L o c a t i o n B l o w n V e i n e d G l a s s

Lamp:

P3120:

60W A19, 60W MB19, 60W BT15, 50W TB19



PN3120:

100W A19, 100W MB19, 100W BT15, 90W TB19

Dimensions:

OD: 5 1/2" (138mm)

ELEMENT OPTIONS

IRIS®

3" ELEMENTS - Line Voltage

Cone Finishes:

C = Clear Specular Alzak

H = Haze Clear Semi-Specular Alzak

G = Champagne Gold Specular Alzak B = Specular Black Alzak

WMH = Warm Haze Semi-specular Alzak with a hint of gold to add visual warmth

W = Gloss White Paint MW = Matte White

K (Cognac) = Warm copper color, specular Alzak KH (Cognac Haze) = Cognac, semi-specular Alzak GP Graphite = Gunmetal grey, specular Alzak GPH Graphite Haze = Graphite, semi-specular Alzak

Baffle Options

BB= Black Baffle WB = White Baffle

Flanges

Blank = Matte white die-cast flange ring, removable for field painting

RAW = Die cast trim ring, mill finish

SF = Self Flange (flange color matches reflector cone) SFWF = Self Flange painted Matte White

E3PIN and E3OVAL

Blank = Matte White painted die-cast trim ring with black oculus (when present)

W = Matte White painted die-cast trim ring with white oculus (when present)

POL = Polished Aluminum with Black Oculus SAL = Satin Aluminum with Black Oculus

Example:







Example:







Example:

E3P20













E3P20













E3PIN









































Cone

Flange

Baffle

Flange Type and



Flange Type and

Finish

Type and

Finish

Finish (self flange



Finish (self flange









Finish









not available)



not available)

COOPER LIGHTING 931

Page 1
Image 1
Cooper Lighting 931 dimensions I N R D, W W, A S R
