DESCRIPTION

























































Catalog #









Type



3.9” small aperture fixed position round recessed wall wash trim.























For use with 12V MR16 lamp 50W max., *CMHMR16 20W, or *ES16





















Project













BriteSpot 39W.















































































For use in wall washing applications where small aperture, recessed



Comments









Date























ceiling fixtures are desired.

























































Prepared by















































SPECIFICATION FEATURES



















































































































A....Recessed Trim







































Fixed position wall wash trim. 3.9” o.d. trim







































face with 1.7” aperture. Includes bullet







































plunger retainers for smooth snap-in action







































during installation and removal of trim for







































relamping. Helps guard against plaster







































cracking.







































B....Lamp













































































For use with 12V MR16 lamp 50W max.







































*CMH MR16 20W or *ES16 BriteSpot 39W.













































































Lamp not included.

























G









MINI



Posi-Grip bi-pin socket for 12V MR16. GX10







































































































ACCURUS



C....Socket







































for metal halide lamps. (Included with Mini

C

































RECESSED





























































Accurus Housing sold separately)











































































D....Lens



ACM5002

Frosted lens included. Can hold up to two (2)

B

optical accessories total.

3.9” O.D.

D

E....Reflector

1.7” Aperture

E

Includes internal “kicker” reflector for

A

Round Fixed

optimized light output.

Wall Wash Trim





F....Finish





3.90” dia.











FOR 12V MR16 50W max.

Trim face is powder coated in white, black,



















industrial silver, stainless steel or primer



















*CMH MR16 20W

finish for painting in existing ceiling color.



















*ES16 BriteSpot 39W

All other internal components are flat black.







































G...Safety





























































Steel safety cable provided. Attaches to



















Compatible Housings:



















tab inside housing to prevent falling during





















maintenance or as a result of accidental



1.70"

ACM500 / ACM500MH

dislodging of the trim.











dia.

ACM502IC / ACM502ICMH



































ACM504RM / ACM504RMMH

ORDERING INFORMATION

ACM5002

__









Fixture

Finish

ACM5002 =

WH = White

3.9” Recessed Fixed Position

BK = Black

Round Wall Wash Trim

S = Industrial Silver

1.7” Aperture

SS = Stainless Steel (painted)





PM = Primer

* Consult factory for metal halide lamps

Specifications and Dimensions subject to change without notice.

rev. 091806

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1

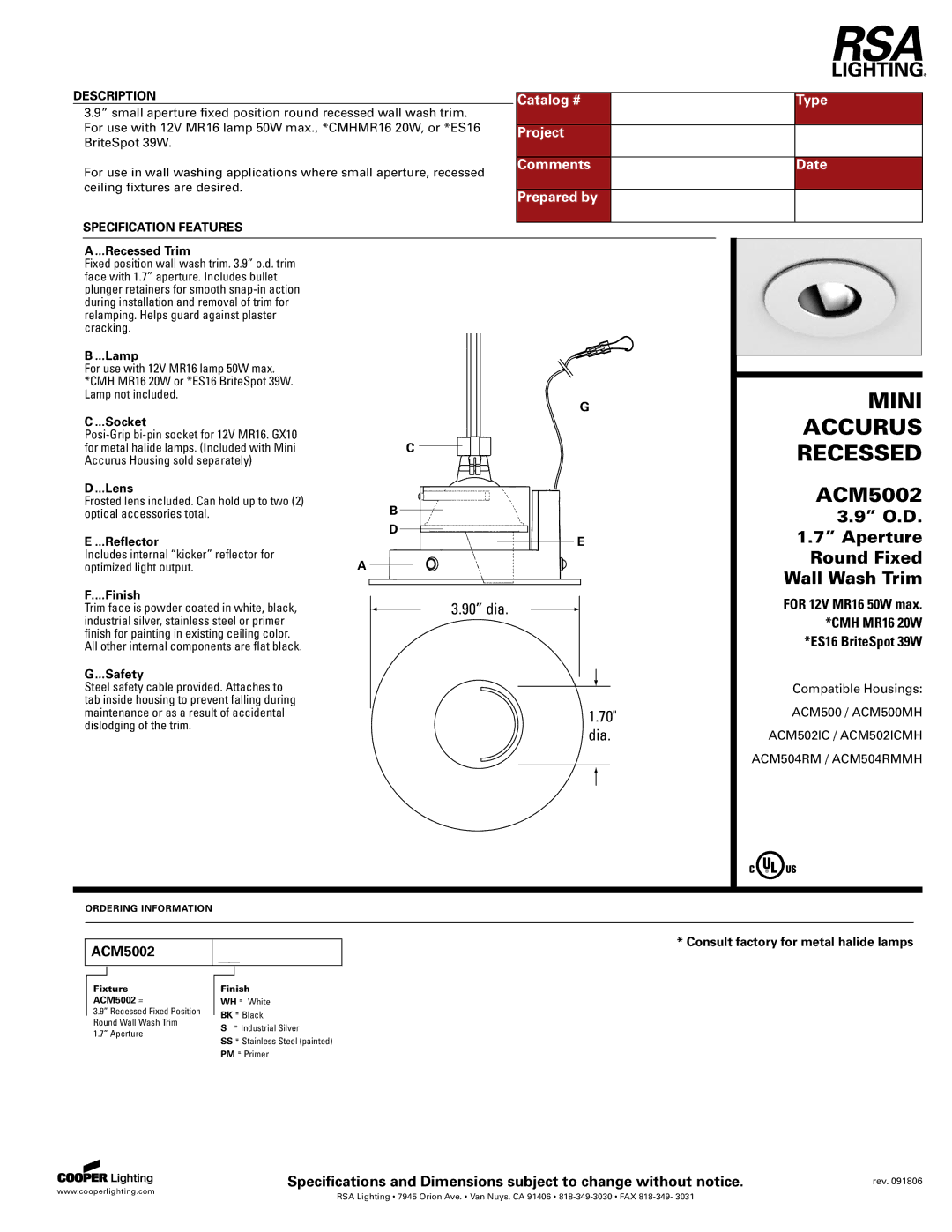

Image 1
