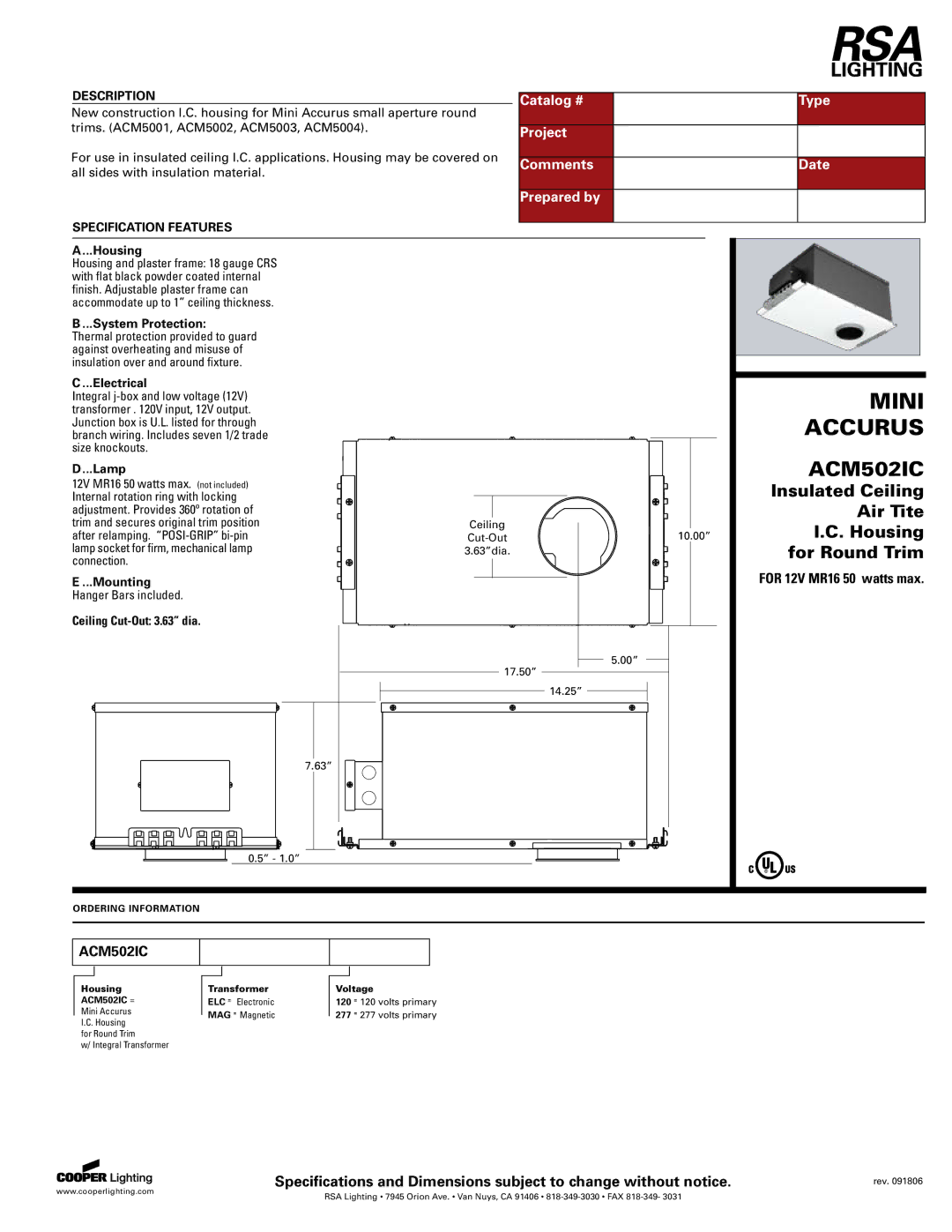

DESCRIPTION



































































Catalog #



















Type

New construction I.C. housing for Mini Accurus small aperture round























































trims. (ACM5001, ACM5002, ACM5003, ACM5004).



































































Project























For use in insulated ceiling I.C. applications. Housing may be covered on















































Comments



















Date

all sides with insulation material.















































































































































































Prepared by























SPECIFICATION FEATURES









































































































































































A....Housing





















































Housing and plaster frame: 18 gauge CRS





















































with flat black powder coated internal





















































finish. Adjustable plaster frame can





















































accommodate up to 1” ceiling thickness.





















































B....System Protection:





















































Thermal protection provided to guard





















































against overheating and misuse of





















































insulation over and around fixture.





















































C....Electrical





































































































MINI

Integral j-box and low voltage (12V)

















































transformer . 120V input, 12V output.

















































branch wiring. Includes seven 1/2 trade

















































ACCURUS

Junction box is U.L. listed for through





















































size knockouts.

























































ACM502IC























































D....Lamp



























































12V MR16 50 watts max. (not included)

























































Insulated Ceiling

Internal rotation ring with locking





















































adjustment. Provides 360º rotation of























































Air Tite























































trim and secures original trim position











Ceiling







































I.C. Housing

after relamping. “POSI-GRIP” bi-pin











Cut-Out



























10.00”















































lamp socket for firm, mechanical lamp











3.63”dia.





































for Round Trim









































connection.





















































FOR 12V MR16 50 watts max.

E....Mounting





















































































































































Hanger Bars included.























































































































Ceiling Cut-Out: 3.63” dia.

5.00”

17.50”

14.25”

7.63”

0.5” - 1.0”

ORDERING INFORMATION

ACM502IC

Housing ACM502IC = Mini Accurus I.C. Housing for Round Trim

w/ Integral Transformer

Transformer

ELC = Electronic

MAG = Magnetic

Voltage

120 = 120 volts primary

277 = 277 volts primary

Specifications and Dimensions subject to change without notice.

rev. 091806

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
