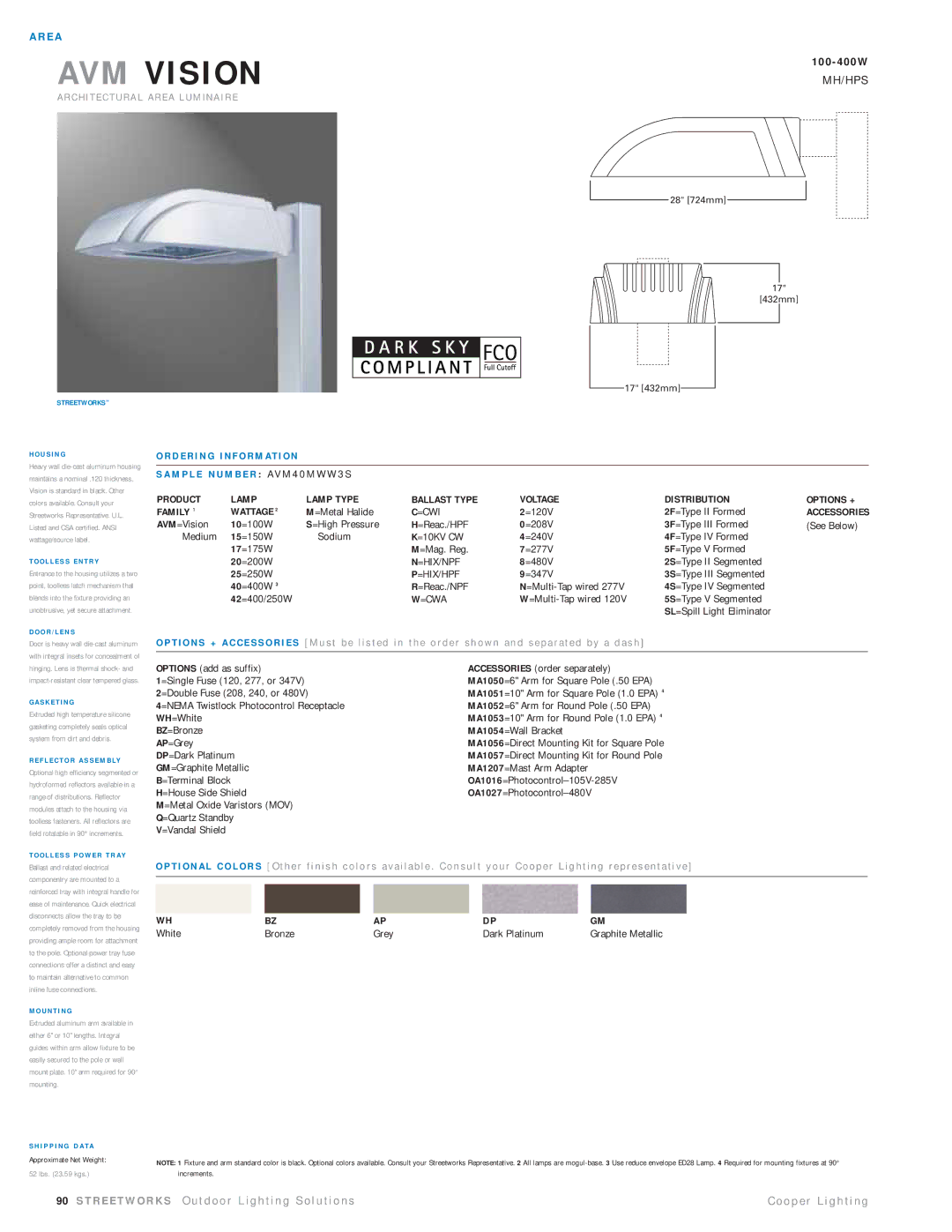

A R E A

A R E A



AVM VISION

100-400W

MH/HPS

A R C H I T E C T U R A L A R E A L U M I N A I R E



28" [724mm]

17"

[432mm]

17" [432mm]

STREETWORKS

H O U S I N G

Heavy wall die-cast aluminum housing maintains a nominal .120 thickness. Vision is standard in black. Other colors available. Consult your Streetworks Representative. U.L. Listed and CSA certified. ANSI wattage/source label.

T O O L L E S S E N T RY

Entrance to the housing utilizes a two point, toolless latch mechanism that blends into the fixture providing an unobtrusive, yet secure attachment.

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : A V M 4 0 M W W 3 S

PRODUCT

LAMP

LAMP TYPE

BALLAST TYPE

VOLTAGE

DISTRIBUTION

OPTIONS +

FAMILY 1

WATTAGE 2

M=Metal Halide

C=CWI

2=120V

2F=Type II Formed

ACCESSORIES

AVM=Vision

10=100W

S=High Pressure

H=Reac./HPF

0=208V

3F=Type III Formed

(See Below)

Medium

15=150W

Sodium

K=10KV CW

4=240V

4F=Type IV Formed





17=175W



M=Mag. Reg.

7=277V

5F=Type V Formed





20=200W



N=HIX/NPF

8=480V

2S=Type II Segmented





25=250W



P=HIX/HPF

9=347V

3S=Type III Segmented





40=400W 3



R=Reac./NPF

N=Multi-Tap wired 277V

4S=Type IV Segmented





42=400/250W



W=CWA

W=Multi-Tap wired 120V

5S=Type V Segmented













SL=Spill Light Eliminator



D O O R / L E N S

Door is heavy wall die-cast aluminum with integral insets for concealment of

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

hinging. Lens is thermal shock- and impact-resistant clear tempered glass.

G A S K E T I N G

Extruded high temperature silicone gasketing completely seals optical system from dirt and debris.

R E F L E C T O R A S S E M B LY

Optional high efficiency segmented or hydroformed reflectors available in a range of distributions. Reflector modules attach to the housing via toolless fasteners. All reflectors are field rotatable in 90° increments.

T O O L L E S S P O W E R T R AY

OPTIONS (add as suffix)

1=Single Fuse (120, 277, or 347V)

2=Double Fuse (208, 240, or 480V)

4=NEMA Twistlock Photocontrol Receptacle WH=White

BZ=Bronze

AP=Grey

DP=Dark Platinum GM=Graphite Metallic B=Terminal Block H=House Side Shield

M=Metal Oxide Varistors (MOV) Q=Quartz Standby

V=Vandal Shield

ACCESSORIES (order separately)

MA1050=6" Arm for Square Pole (.50 EPA) MA1051=10" Arm for Square Pole (1.0 EPA) 4 MA1052=6" Arm for Round Pole (.50 EPA) MA1053=10" Arm for Round Pole (1.0 EPA) 4 MA1054=Wall Bracket

MA1056=Direct Mounting Kit for Square Pole MA1057=Direct Mounting Kit for Round Pole MA1207=Mast Arm Adapter OA1016=Photocontrol–105V-285V OA1027=Photocontrol–480V

Ballast and related electrical componentry are mounted to a reinforced tray with integral handle for ease of maintenance. Quick electrical disconnects allow the tray to be completely removed from the housing providing ample room for attachment to the pole. Optional power tray fuse connections offer a distinct and easy to maintain alternative to common inline fuse connections.

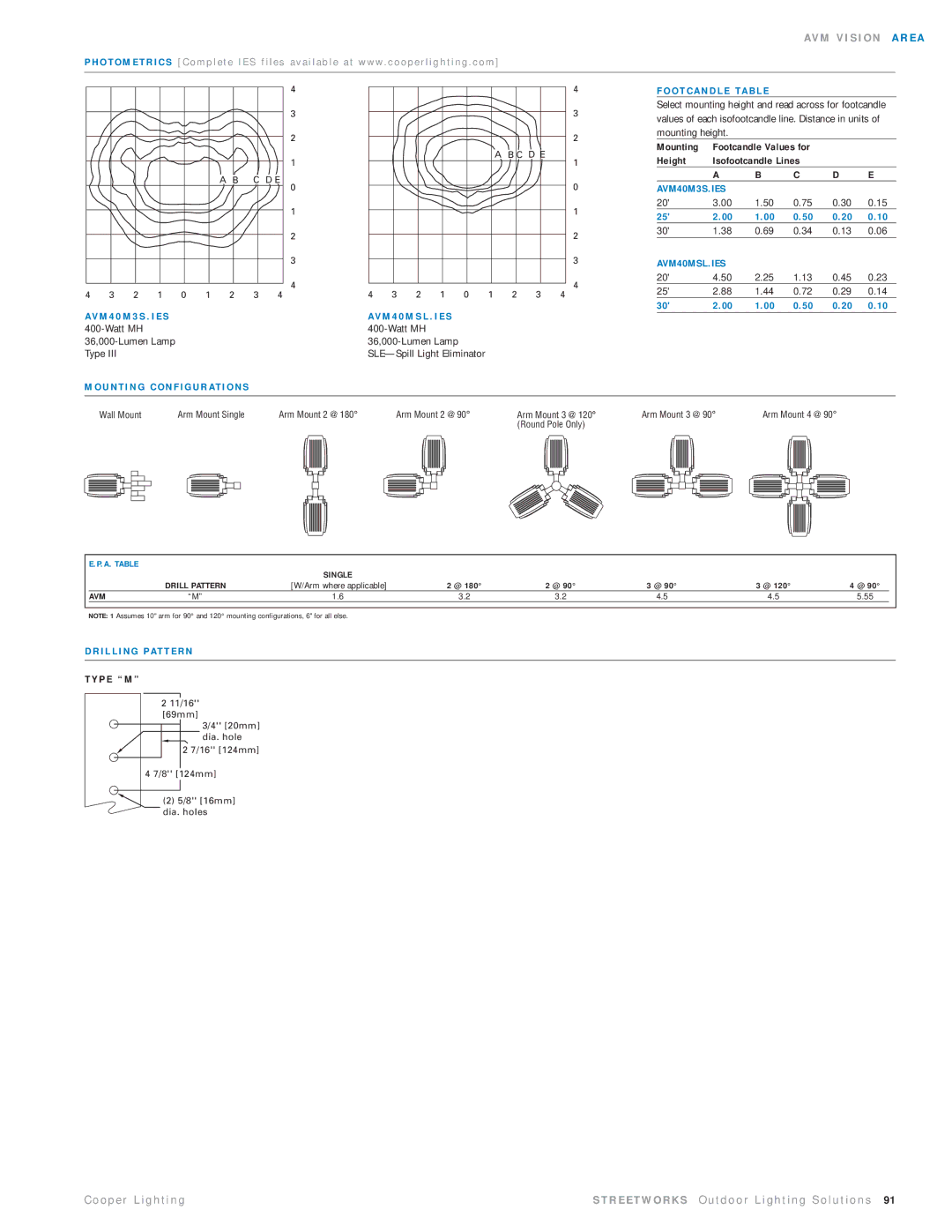

M O U N T I N G

Extruded aluminum arm available in either 6" or 10" lengths. Integral guides within arm allow fixture to be easily secured to the pole or wall mount plate. 10" arm required for 90° mounting.

O P T I O N A L C O L O R S [ O t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH

BZ

AP

DP

GM

White

Bronze

Grey

Dark Platinum

Graphite Metallic

S H I P P I N G D ATA



Approximate Net Weight:

NOTE: 1 Fixture and arm standard color is black. Optional colors available. Consult your Streetworks Representative. 2 All lamps are mogul-base. 3 Use reduce envelope ED28 Lamp. 4 Required for mounting fixtures at 90°



52 lbs. (23.59 kgs.)

increments.

90 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s

C o o p e r L i g h t i n g
