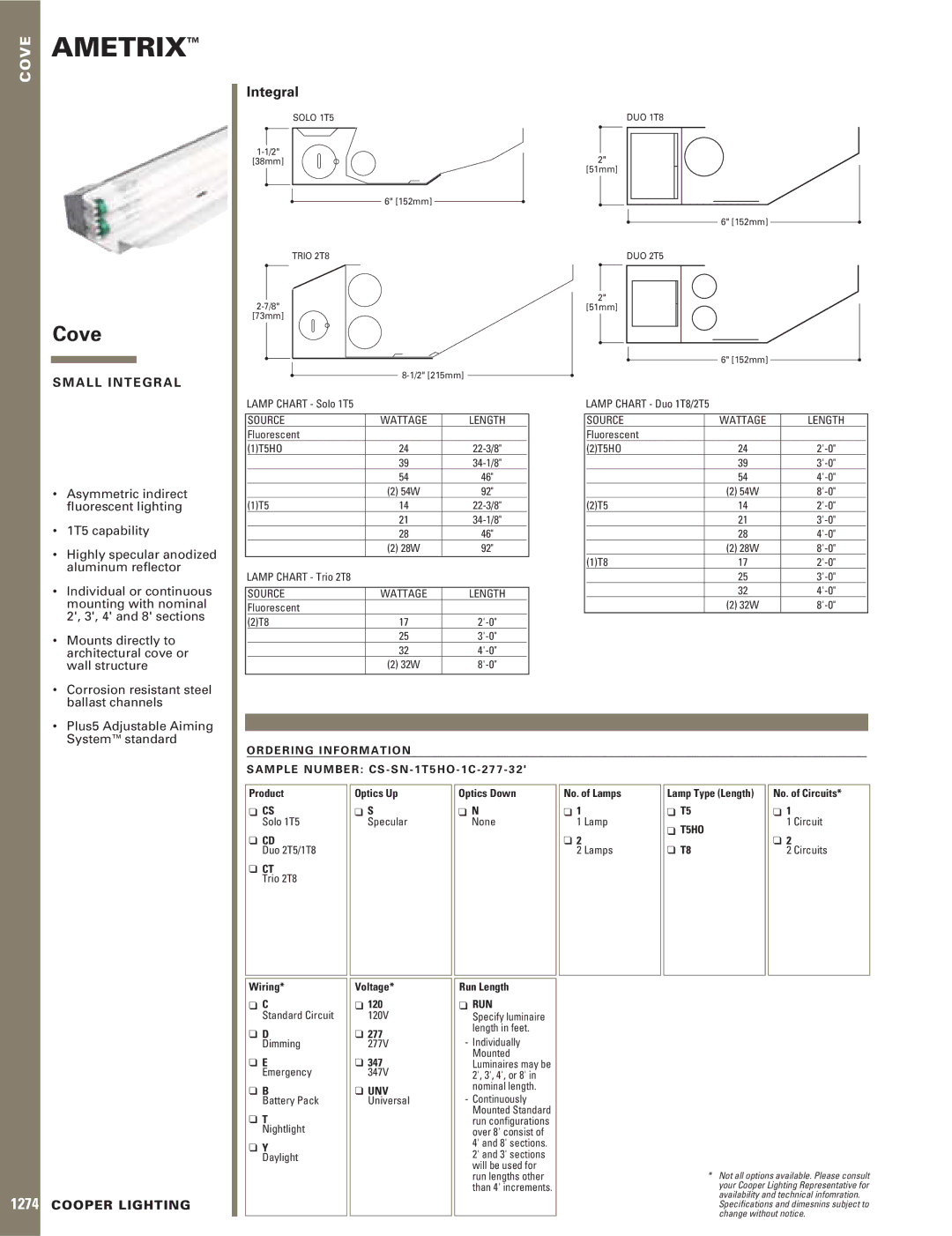

COVE AMETRIX™

Cove

S M A L L I N T E G R A L

Integral

SOLO 1T5

1-1/2"

[38mm]

6" [152mm]

TRIO 2T8

2-7/8"

[73mm]

8-1/2" [215mm]

DUO 1T8

2"

[51mm]

6" [152mm]

DUO 2T5

2"

[51mm]

6" [152mm]

•Asymmetric indirect fluorescent lighting•1T5 capability•Highly specular anodized aluminum reflector

•Individual or continuous mounting with nominal 2', 3', 4' and 8' sections

•Mounts directly to architectural cove or wall structure

•Corrosion resistant steel ballast channels•Plus5 Adjustable Aiming System™ standard

LAMP CHART - Solo 1T5

SOURCE	WATTAGE	LENGTH
Fluorescent
(1)T5HO	24	22-3/8"
	39	34-1/8"
	54	46"
	(2) 54W	92"
(1)T5	14	22-3/8"
	21	34-1/8"
	28	46"
	(2) 28W	92"
LAMP CHART - Trio 2T8
SOURCE	WATTAGE	LENGTH
Fluorescent
(2)T8	17	2'-0"
	25	3'-0"
	32	4'-0"
	(2) 32W	8'-0"

LAMP CHART - Duo 1T8/2T5

SOURCE	WATTAGE	LENGTH
Fluorescent
(2)T5HO	24	2'-0"
	39	3'-0"
	54	4'-0"
	(2) 54W	8'-0"
(2)T5	14	2'-0"
	21	3'-0"
	28	4'-0"
	(2) 28W	8'-0"
(1)T8	17	2'-0"
	25	3'-0"
	32	4'-0"
	(2) 32W	8'-0"

O R D E R I N G I N F O R M A T I O N

S A M P L E N U M B E R : C S - S N - 1 T 5 H O - 1 C - 2 7 7 - 3 2 '

1274 COOPER LIGHTING

Product

❑CS

Solo 1T5

❑CD

Duo 2T5/1T8

❑CT

Trio 2T8

Wiring*

❑C

Standard Circuit

❑D Dimming

❑E Emergency

❑B

Battery Pack

❑T Nightlight

❑Y Daylight

Optics Up

❑S Specular

Voltage*

❑120

120V

❑277

277V

❑347

347V

❑UNV Universal

Optics Down

❑N None

Run Length

❑RUN

Specify luminaire length in feet.

-Individually Mounted Luminaires may be 2', 3', 4', or 8' in nominal length.

-Continuously Mounted Standard run configurations over 8' consist of 4' and 8' sections. 2' and 3' sections will be used for run lengths other than 4' increments.

No. of Lamps

❑1

1 Lamp

❑2

2 Lamps

Lamp Type (Length)	No. of Circuits*
❑ T5	❑ 1	Circuit
❑ T5HO	1
	❑ 2
❑ T8		Circuits
	2

*Not all options available. Please consult your Cooper Lighting Representative for availability and technical infomration.

Specifications and dimesnins subject to change without notice.
