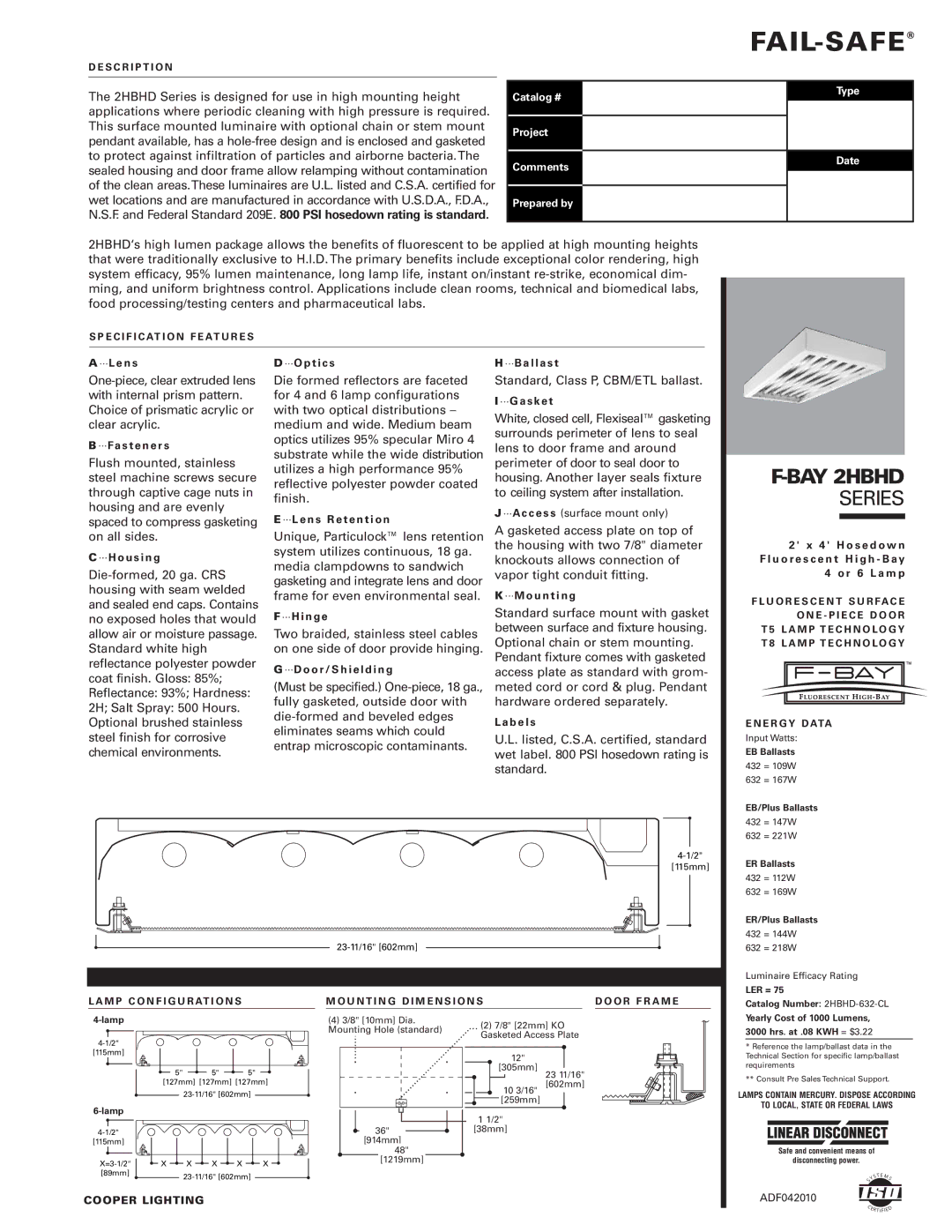

Cooper Lighting F-BAY 2HBHD SERIES dimensions Fail-Safe, F-BAY2HBHD, Series

D E S C R I P T I O N

FAIL-SAFE®

The 2HBHD Series is designed for use in high mounting height applications where periodic cleaning with high pressure is required. This surface mounted luminaire with optional chain or stem mount pendant available, has a hole-free design and is enclosed and gasketed to protect against infiltration of particles and airborne bacteria.The sealed housing and door frame allow relamping without contamination of the clean areas.These luminaires are U.L. listed and C.S.A. certified for wet locations and are manufactured in accordance with U.S.D.A., F.D.A., N.S.F. and Federal Standard 209E. 800 PSI hosedown rating is standard.

Catalog #

Project

Comments

Prepared by

Type

Date

2HBHD‘s high lumen package allows the benefits of fluorescent to be applied at high mounting heights that were traditionally exclusive to H.I.D. The primary benefits include exceptional color rendering, high system efficacy, 95% lumen maintenance, long lamp life, instant on/instant re-strike, economical dim- ming, and uniform brightness control. Applications include clean rooms, technical and biomedical labs, food processing/testing centers and pharmaceutical labs.

S P E C I F I C AT I O N F E AT U R E S

A.. .Lens

One-piece, clear extruded lens with internal prism pattern. Choice of prismatic acrylic or clear acrylic.

B. .. Fasteners

Flush mounted, stainless steel machine screws secure through captive cage nuts in housing and are evenly spaced to compress gasketing on all sides.

C. .. Housing

Die-formed, 20 ga. CRS housing with seam welded and sealed end caps. Contains no exposed holes that would allow air or moisture passage. Standard white high reflectance polyester powder coat finish. Gloss: 85%; Reflectance: 93%; Hardness: 2H; Salt Spray: 500 Hours. Optional brushed stainless steel finish for corrosive chemical environments.

D. .. Optics

Die formed reflectors are faceted for 4 and 6 lamp configurations with two optical distributions – medium and wide. Medium beam optics utilizes 95% specular Miro 4 substrate while the wide distribution utilizes a high performance 95% reflective polyester powder coated finish.

E . .. Lens Retention

Unique, Particulock™ lens retention system utilizes continuous, 18 ga. media clampdowns to sandwich gasketing and integrate lens and door frame for even environmental seal.

F.. .Hinge

Two braided, stainless steel cables on one side of door provide hinging.

G. .. Door/Shielding

(Must be specified.) One-piece, 18 ga., fully gasketed, outside door with die-formed and beveled edges eliminates seams which could entrap microscopic contaminants.

H. .. Ballast

Standard, Class P, CBM/ETL ballast.

I.. .Gasket

White, closed cell, Flexiseal™ gasketing surrounds perimeter of lens to seal lens to door frame and around perimeter of door to seal door to housing. Another layer seals fixture to ceiling system after installation.

J .. .Access (surface mount only)

A gasketed access plate on top of the housing with two 7/8" diameter knockouts allows connection of vapor tight conduit fitting.

K. .. Mounting

Standard surface mount with gasket between surface and fixture housing. Optional chain or stem mounting.

Pendant fixture comes with gasketed access plate as standard with grom- meted cord or cord & plug. Pendant hardware ordered separately.

Labels

U.L. listed, C.S.A. certified, standard wet label. 800 PSI hosedown rating is standard.

F-BAY 2HBHD

SERIES

2 ' x 4 ' H o s e d o w n F l u o re s c e n t H i g h - B a y 4 o r 6 L a m p

F L U O R E S C E N T S U R FA C E O N E - P I E C E D O O R T 5 L A M P T E C H N O LO G Y

T 8 L A M P T E C H N O LO G Y

E N E R G Y DATA

Input Watts:

EB Ballasts

432 = 109W

632 = 167W

EB/Plus Ballasts

432 = 147W

632 = 221W

4-1/2"

[115mm]

23-11/16" [602mm]

ER Ballasts

432 = 112W

632 = 169W

ER/Plus Ballasts

432 = 144W

632 = 218W

Luminaire Efficacy Rating

LER = 75

L A M P C O N F I G U R AT I O N S

M O U N T I N G D I M E N S I O N SD O O R F R A M E

Catalog Number: 2HBHD-632-CL

4-lamp

4-1/2"

[115mm]

5" 5" 5" [127mm] [127mm] [127mm]

23-11/16" [602mm]

6-lamp

4-1/2"

[115mm]

X=3-1/2"	X		X	X	X	X
[89mm]		23-11/16" [602mm]

(4)3/8" [10mm] Dia. Mounting Hole (standard)

36" [914mm]

48"

[1219mm]

(2)7/8" [22mm] KO

Gasketed Access Plate

12"
[305mm]	23 11/16"
10 3/16"	[602mm]
[259mm]

11/2"

[38mm]

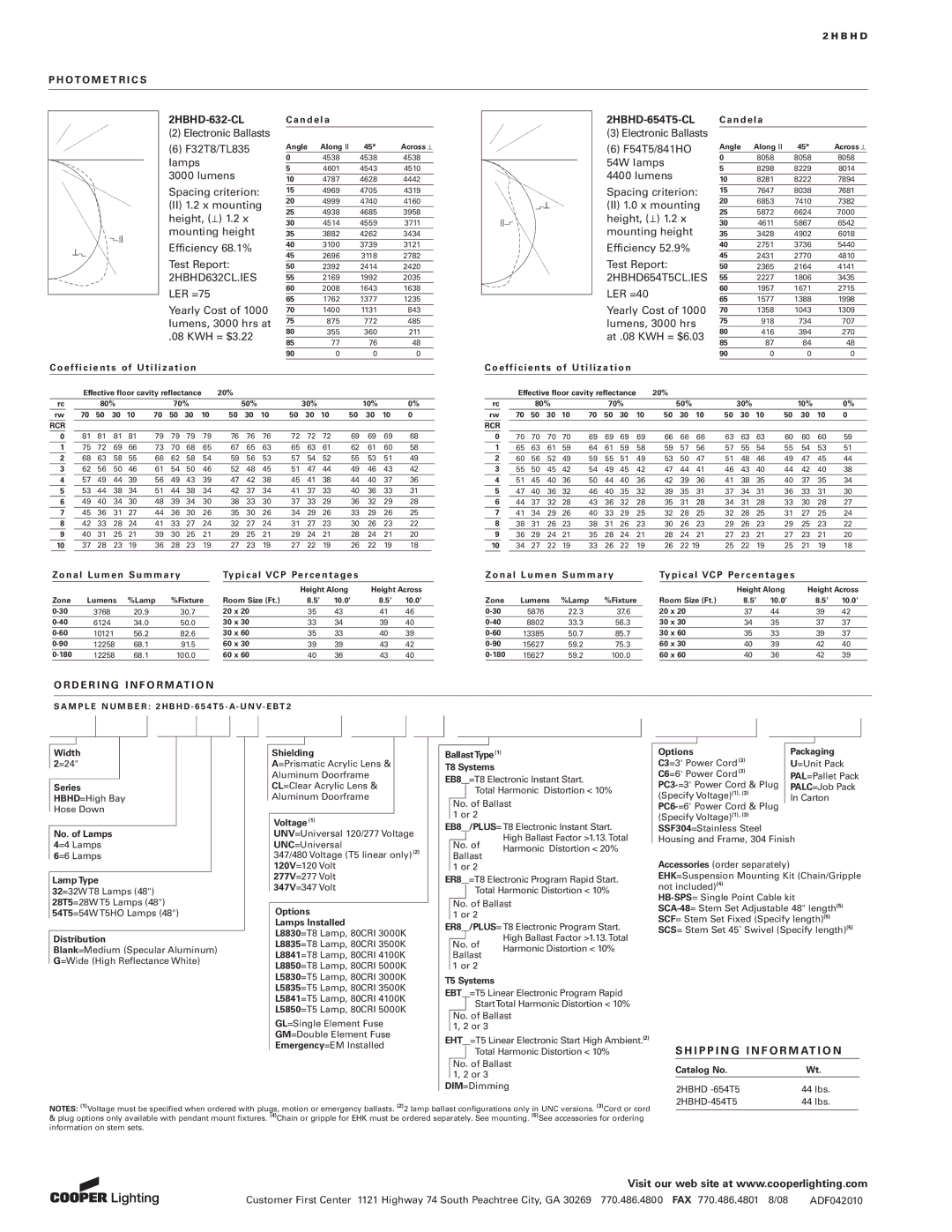

Yearly Cost of 1000 Lumens,

3000 hrs. at .08 KWH = $3.22

*Reference the lamp/ballast data in the Technical Section for specific lamp/ballast requirements

**Consult Pre Sales Technical Support.

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING

TO LOCAL, STATE OR FEDERAL LAWS

Safe and convenient means of

disconnecting power.
