MCGRAW-EDISON®

D I M E N S I O N S

25 1/3"

[643mm]

18 3/4" [476mm]

D E S C R I P T I O N

The GAR series traditional character with updated styling and superior photometric performance offers roadway illumination and uniformity to set a new standard for decorative post top luminaires. It’s traditional styling ties in well with historic districts, downtown streetscapes, walkways, and parking lots.

D A R K S K Y CO

C O M P L I A N T

Cutoff

GAR GENERATION SERIES POST TOP

5 0 - 4 0 0 W M e t a l H a l i d e H i g h P r e s s u r e S o d i u m

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : G A R - 1 5 0 - M H - 1 2 0 - 3 - A C V- B Z

E l e c t r o d e l e s s F l u o r e s c e n t

A C O R N

D E C O R AT I V E L U M I N A I R E

Product

Family

GAR=Acorn

E.P.A. 2.1

Lamp Wattage 50=50W 70=70W

85=85W 1

100=100W

150=150W

175=175W

250=250W

400=400W 2, 3

Lamp Type

MH=Metal

Halide 4

HPS=High

Pressure

Sodium

QL=Electrodeless

Fluorescent 1

















Voltage 5

Refractor

120=120V

Type

208=208V

3=Type III

240=240V

5=Type V

277=277V







347=347V







480=480V

MT=Multi-Tap 6 TT=Multi-Tap 7

Top Type

A=Acorn

C=Classical

M=Modern

V=Victorian

Cage Type

A=Architectural

C=Classical

M=Modern

X=None

Finial Type

A=Architectural

M=Modern

N=Nostalgic

V=Victorian

X=None



















































Options &

Color 8

Accessories

AP=Grey

(See Below)

BZ=Bronze







BK=Black







GN=Hartford Green

WH=White

DP=Dark Platinum

GM=Graphite Metallic

• Refractive globe is 9"

high efficiency acrylic or

optional polycarbonate

design utilizing a

combination of refractive

and reflective prisms for

optional Type III or V

distributions. Optional

twistlock assembly

available for toolless

access to optics

DECORATIVE

Options 9

Accessories 12



F=Single Fuse (120, 277 or 347V)

AA2000=House Side Shield—Mogul-Base Lamp



FF=Double Fuse (208, 240 or 480V)

AA2001=House Side Shield—Medium-Base Lamp



A=Twistlock Refractor

OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap



B=Decorative Brass Banding 10

OA/RA1027=NEMA Twistlock Photocontrol—480V



P=Polycarbonate Refractor 11

OA1201=NEMA Twistlock Photocontrol—347V



R=Internal NEMA photocontrol Receptacle





G=Gold Cage and Finial





D=Downlight Reflector





L=Lamp Included





Configurations





Cage Type

Top Type

Finial Type

Architectural

Acorn

(Acyrlic Glow Top)

Classical

Modern

(Spun Top)

Modern

Modern

Victorian

(Acyrlic Glow Top)



Classical



Architectural

(Spun Top)

Victorian

NOTES: 1 85W QL Electrodeless Fluorescent only. 120 or 240V only. 2 Not available in 480V. 3 400W available in Metal Halide only. Requires reduced envelope ED-28 lamp. 4 Medium-base lamps standard for 150W and below Metal Halide. 5 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 6 Multi-Tap ballast is 120/208/240/277V wired 277V. 7 Triple-Tap ballast is 120/277/347V wired 347V. 8 Other finish colors available, including a full line of RAL color matches. Consult your Cooper Lighting Representative. 9 Add as suffix in the order shown. 10 When brass banding is chosen, finial finished in gold. 11 Polycarbonate parts used with Metal Halide lamps will eventually yellow. 12 Order separately, replace XX with color suffix. 13 Specifications and dimensions subject to change without notice.

• Heavy duty-cast alu-



minum housing for up



to 400W Metal Halide or



250W HPS systems.



Optional NEMA PCR is



provided with quick



disconnects for ease of



maintenance

Ballast assembly is



mounted on a removable



tray with quick



disconnects. Plug in



starter is standard for all



HPS systems

• All hard mount tops are



made of spun aluminum



and all glow tops are



manufactured of acrylic.



Finials are manufactured



of cast aluminum

• Post top mount fits 3"



O.D. tenons. Four (4)



stainless steel fasteners



standard

• Standard colors are grey,



white, black, bronze, and



Hartford Green polyester



powder coat

Approximate net weight:



50 lbs. (23 kgs.)

COOPER LIGHTING

1175

Page 1

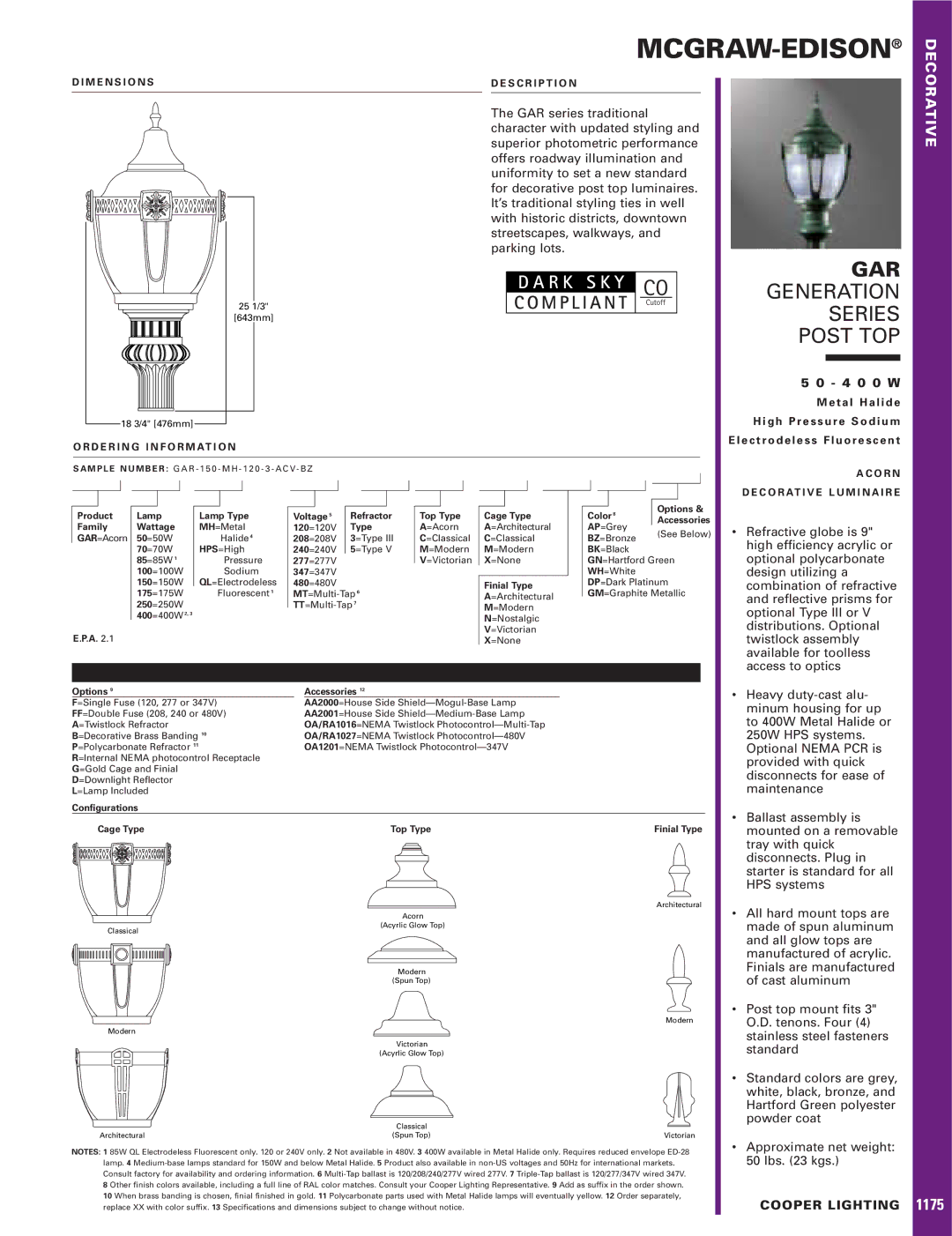

Image 1
